DroneWNG SYSTEMS // MISSION CASE STUDIES

Case Studies

Heavy-lift platforms and air-space swarms empowering global high-threat tactical deployments

01 / 03
REAL-WORLD MISSIONS // Field-Tested Performance

Global Real-World Missions

⊕ TARGET GPS: 22°18'42.1"N 114°13'12.4"E
LOCK_STATUS: ENGAGED

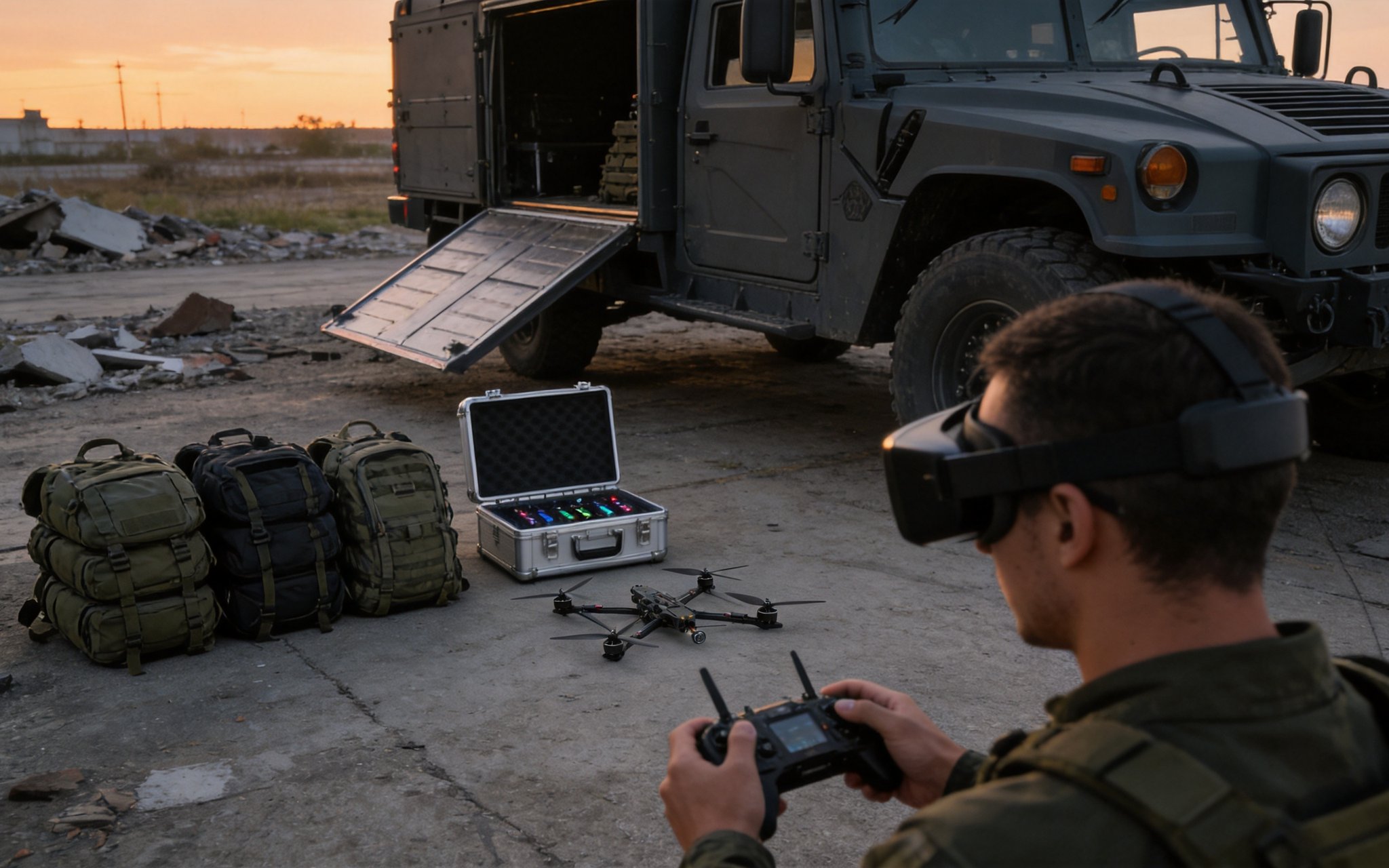

Integrated Mobile Air-Space FPV Swarm Tactical System
[ MOBILE SWARM // AF-M021 ]

Integrated Mobile Air-Space FPV Swarm Tactical System

In urban counter-terror clearance drills, the DroneWNG-Swarm Set deploys rapidly with a single touch. Utilizing a mobile command wagon, 24 FPV drones equipped with airborne ad-hoc network radios form a highly secure, non-centralized dynamic network, breaking through multi-path propagation and physical obstructions under 15ms latency.

Max Operational Radius 5 - 10 KM
Self-Healing Nodes 24 NODES
Telemetry Latency < 15 MS
// SYSTEM INTEGRATION DETAILS
  • Wagon Frontline Mobile GCS Operation Car
  • Three-Screen GCS Command Ground Station
  • Airborne Ad-Hoc 24-ch Broadband Network Radio
  • Tactical Backpack & VR Goggles/Handles Kit
⊕ TARGET GPS: 22°32'15.4"N 113°57'08.2"E
LOCK_STATUS: ENGAGED

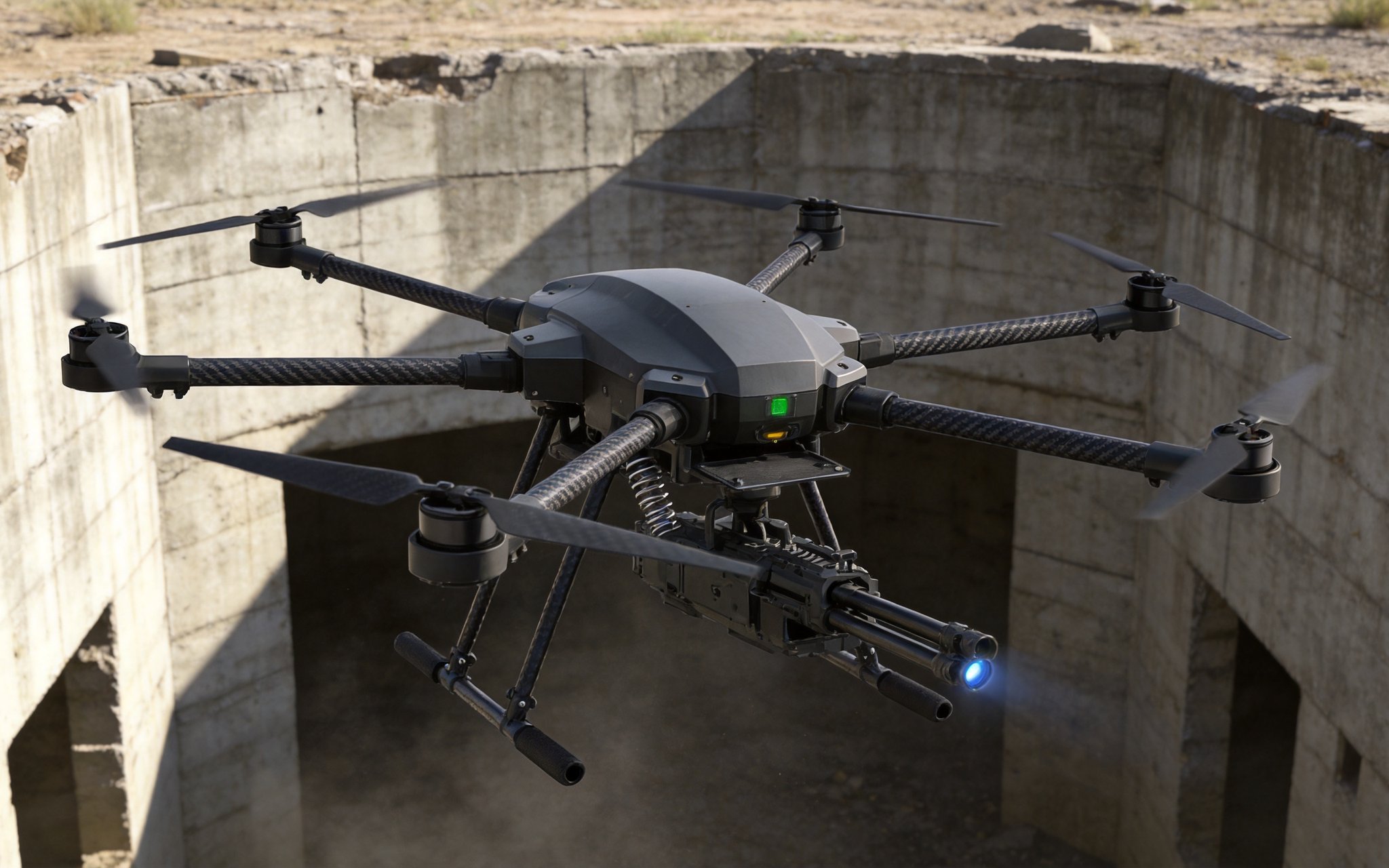

Mid-Range Heavy Hexacopter Recon & Eliminator Operations
[ MULTIROTOR STRIKE // AF-M022 ]

Mid-Range Heavy Hexacopter Recon & Eliminator Operations

Heavy-lift multirotors are integrated with weapon stations or tactical police riot controllers to execute critical defense missions. Features 38mm multi-barrel launchers with an 800m range or 95mm rifle stations, utilizing dual IMU closed-loop stabilization to ensure precise vertical firing under severe weather.

Gimbal Angular Velocity 30°/S
Active Tracking Pitch ± 45°
Laser Range 10 - 1000 M
// SYSTEM INTEGRATION DETAILS
  • 38mm 9-round Electrically Triggered Tear Gas Launcher
  • 95mm Automatic Rifle Station (with Onboard Edge NPU)
  • DroneWNG-Dropper Multi-caliber Vertical Dropper Hook
  • FOC Propulsion with 30-inch Carbon Folding Props
⊕ TARGET GPS: 23°08'34.8"N 114°10'55.1"E
LOCK_STATUS: ENGAGED

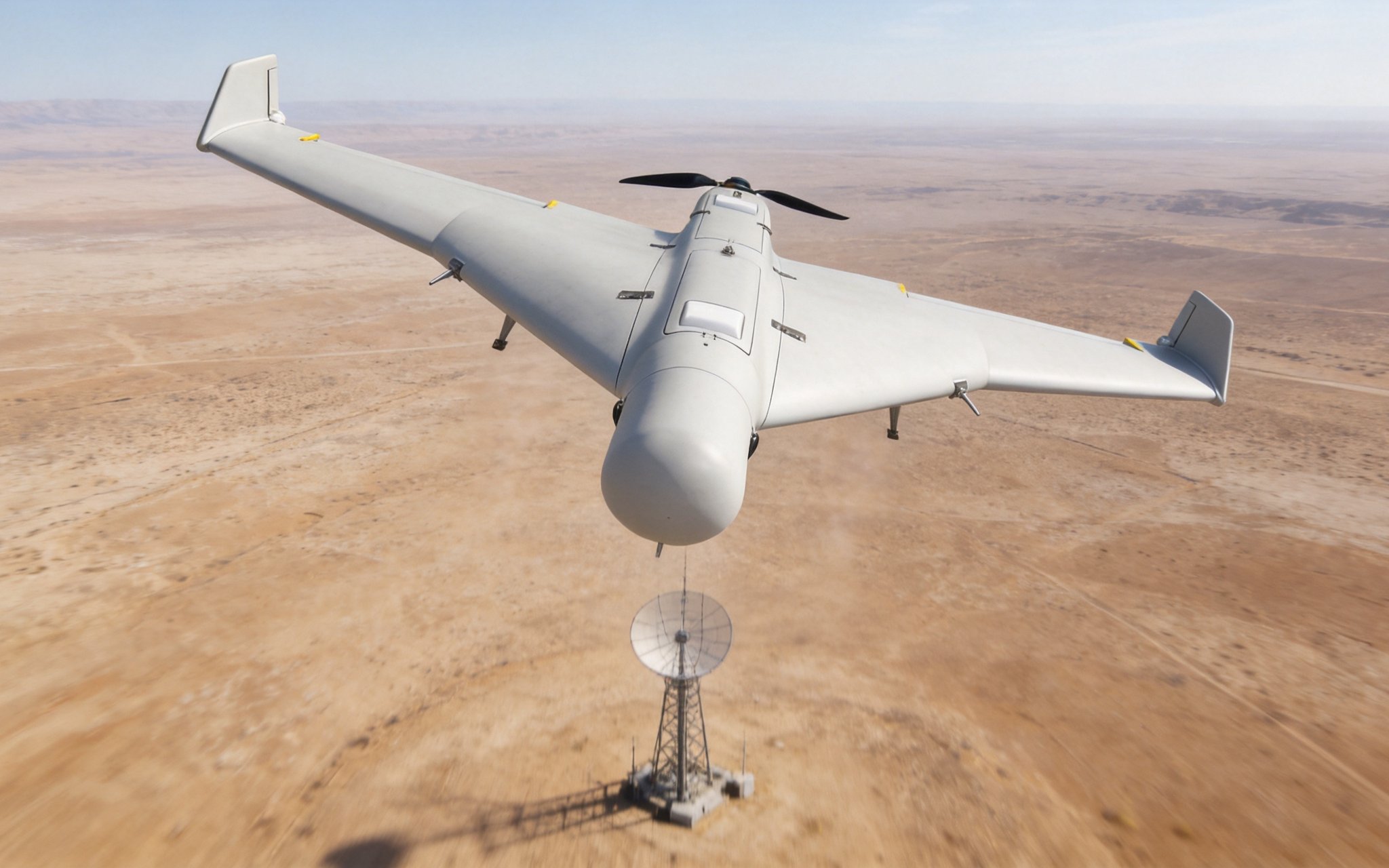

500km Range AI-Guided Autonomous Kinetic Strike (AT50-Class)
[ KINETIC DEFEAT // AF-M023 ]

500km Range AI-Guided Autonomous Kinetic Strike (AT50-Class)

To counter intensive electronic jamming, the AT50 delta-wing UAV launches via modular pneumatic catapult launcher. During flight, it cuts all RF signals, entering full 'Radio Silence' and navigating solely by triple-redundant IMUs. The terminal AI seeker identifies high-value targets (radars, GCS), diving at 500+ km/h for a 10kg kinetic defeat.

突防攔截半徑 500 KM
Self-Destruct Cap 10 KG TNT
Terminal Dive Speed 500+ KM/H
// SYSTEM INTEGRATION DETAILS
  • AT50 Tactical Delta-wing Intercept UAV
  • Pneumatic Catapult Launcher Platform
  • Edge NPU Onboard Trajectory Prediction Engine
  • Autonomous Rescue Parachute Safety Kit
⊕ TARGET GPS: 21°54'08.2"N 115°03'42.1"E
LOCK_STATUS: ENGAGED

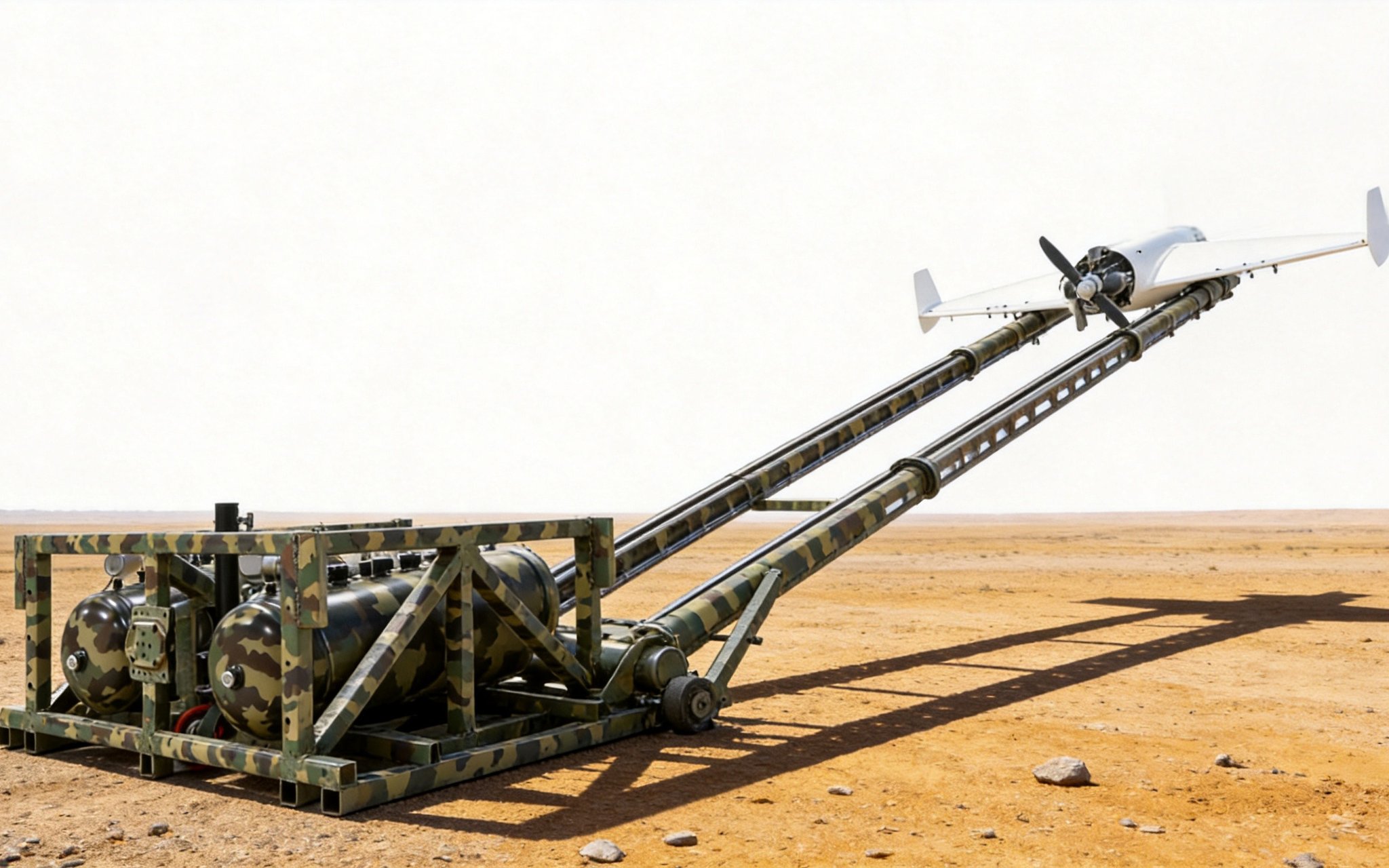

2000km Range BVLOS Heavy Loitering Tactical Strike (AT200-Class)
[ STRATEGIC STRIKE // AF-M024 ]

2000km Range BVLOS Heavy Loitering Tactical Strike (AT200-Class)

Designed for strategic penetration. Equipped with a 50kg heavy warhead and propelled by a 550cc EFI Boxer engine, the AT200 offers a 2000+km strategic range. Integrated with IP67 Integrated Launch Containers (ILC) for passive outdoor readiness, the system executes heavy physical demolition under zero visibility conditions.

Strategic Range 2000+ KM
Heavy Warhead Cap 50 KG
Engine Displacement 550 CC
// SYSTEM INTEGRATION DETAILS
  • AT200 Strategic BVLOS Long-range Cruise Airframe
  • ILC IP67 Storage-Transport-Launch Container Box
  • 550cc Starter-Generator Four-Cylinder Boxer EFI Engine
  • BVLOS Telemetry Microwave Tracking Antenna Link
SPECIALTY PAYLOAD MATRIX // Modular Loadouts & Ground Support

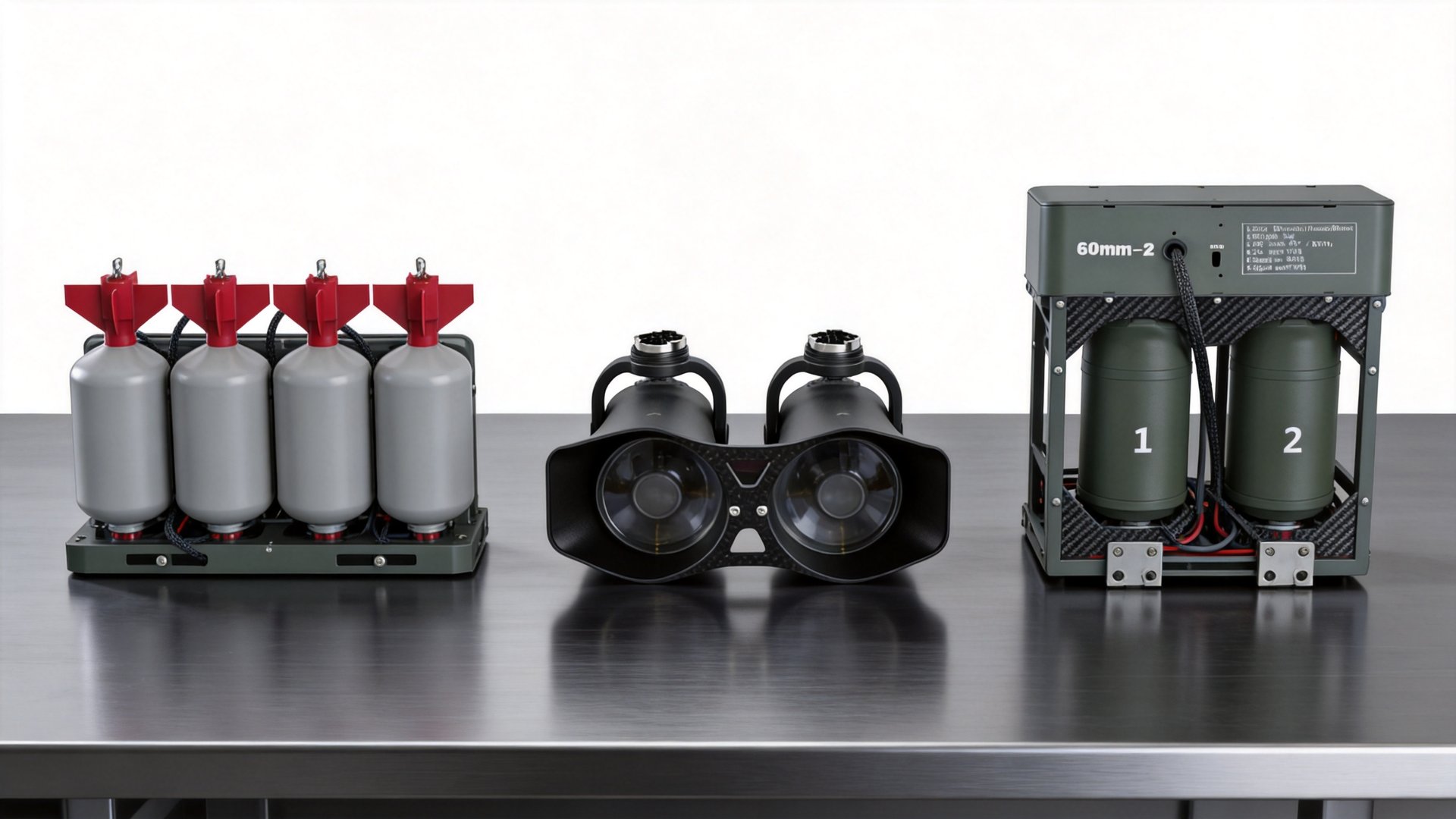

Specialty Payloads & Support Depot

DroneWNG adheres to the 'universal chassis + tactical peripherals' design philosophy. In addition to strategic interception, we provide tactical loadout solutions for Titan, Vision, and AT platforms.

// Blueprints Depot

1. Fire Emergency Mounting Series

One-touch modular snap-fit locks. Engineered to provide heavy obstacle-clearing, high-power broadcasting, and liquid spraying under extreme heat radiation.

Lifeguard Drop Kit

Rapidly drop anti-shock blood bags, emergency rations, and radios to isolated zones

READY
Pneumatic Window Breaker

Pneumatic impact shock hammer, designed to breach 3-layer tempered glass in under 15s

READY
High-Rise Water Spray Tank

100m high-pressure fire hose coupler with 24V electric balance valve control

READY
Loudspeaker & Searchlight

10,000 lm stabilized dual-axis searchlight paired with a high-penetration 120 dB speaker

READY
// Blueprints Depot

2. Tactical Police Security Mounting

Specifically built for tactical penetration, aerial drone net capture, and riot dispersion. Equipped with military aviation connectors supporting CAN/SBUS.

38mm Multi-barrel Launcher

9-round tear gas/smoke canister electric triggering with an effective range of 800m

READY
High-Pressure Net Gun

Launch a 3.3×3.3m high-strength net at 10m/s, delivering a rogue capture rate of ≥98%

READY
95-1/191 Rifle Station

Dual-spring damper buffer mechanism with ≥95% recoil dampening & 1000m rangefinder

READY
Heavy Cargo Drop Box

Equipped with electromagnetic quick-release lock (50kg pull) for vertical precision dropping

READY
