Task Modules
The Aero · Servo-Control series serves as the physical foundation and control brain of mounting platforms, delivering high-precision pointing, dual-axis high-frequency linkage, kinetic stabilization control, and multi-functional integrated digital interaction. It is the movement and control core of various reconnaissance, riot control, launch, and delivery task modules.

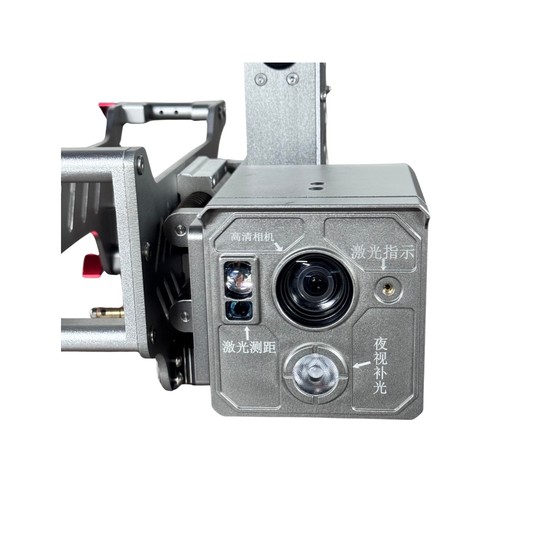

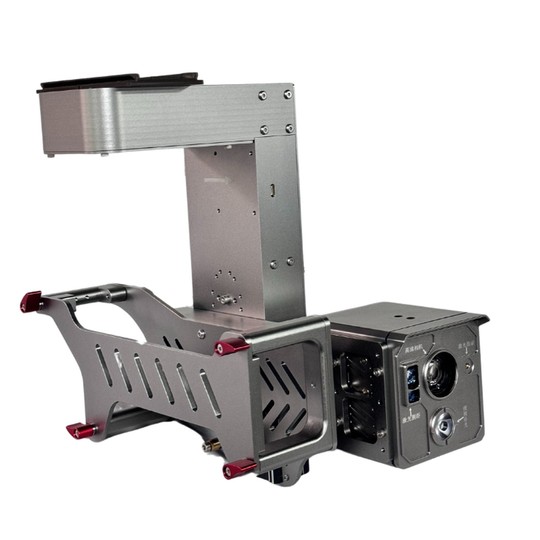

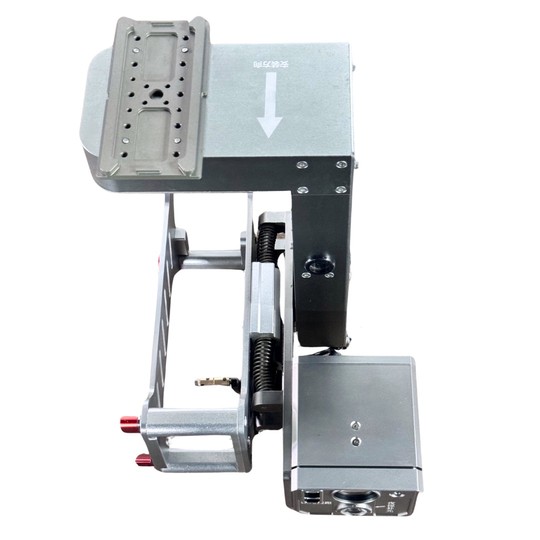

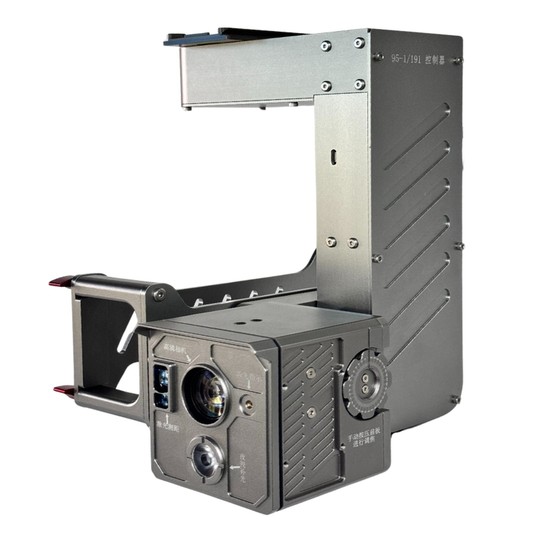

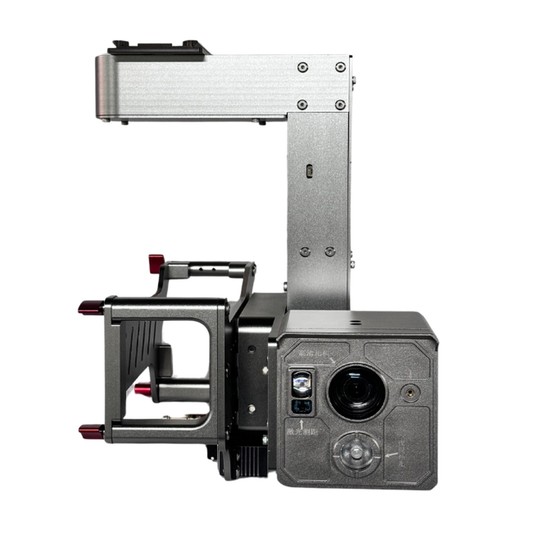

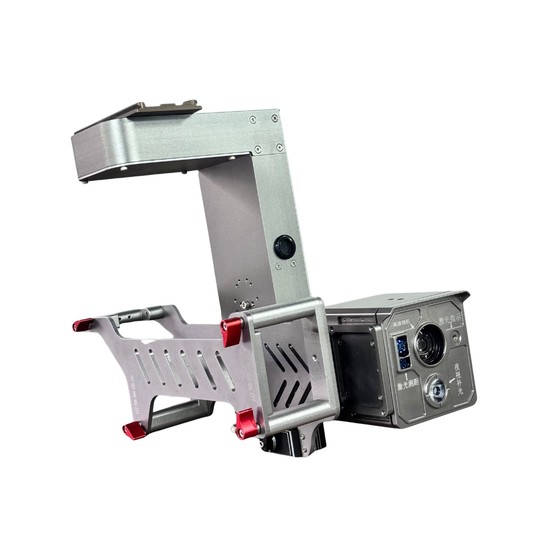

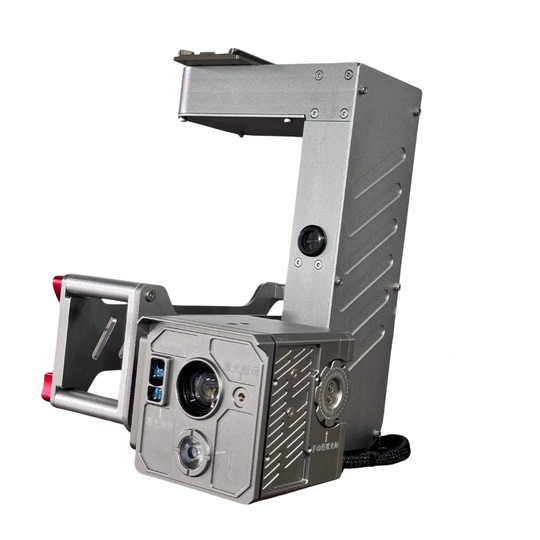

The 95-1/191/192 Series is a lightweight intelligent control and tactical linkage system developed specifically for unmanned platforms (such as multi-rotor UAVs, unmanned ground patrol vehicles, and quadruped bionic robots/robotic dogs). The system integrates a dual-axis linkage/stabilization axis, advanced daylight/night-vision sighting systems, laser rangefinders, and electronic safety launch control mechanisms. It is primarily used for low-altitude and ground reconnaissance patrols, tactical riot dispersal, security for key installations, and emergency response operations.
The controller features tool-free manual quick assembly and disassembly, high compatibility with mainstream equipment, and zero mechanical wear at interfaces, significantly lowering the barrier to entry for system integration and secondary field deployments.
| Specification | Standard Model | Angle Auto-Lock Model | Servo-Stabilized Model |
|---|---|---|---|
| Dimensions | 300 × 200 × 200 mm | 340 × 220 × 300 mm | 378.8 × 255.5 × 198.5 mm |
| Net Weight | 3.4 kg | 4.6 kg | 6.0 kg |
| Material | Aviation aluminum (special anodized treatment), stainless steel | ||
| Mounting Method | Quick-release four-point positioning mount | ||
| Triggering Mechanism | Continuous rotation automatic firing (electric signal excitation) | Automatic spring-back brushless servo manual triggering with overcurrent protection | |
| Range | Sighting: 300 m Rangefinding: 10 ~ 500 m | Sighting: 1,000 m Rangefinding: Max 1,000 m (10 ~ 1,000 m) | |
| Illumination & Indication | IR night-vision fill light, laser rangefinder indication | Green laser indicator (max 500 m), stealth IR night-vision illuminator (max 500 m) | |
| Optical Camera Specs | High-Definition AR zoom camera | 4K HD visible-light camera supporting 10x optical zoom | |
| Linkage/Gimbal Control | Yaw and pitch dual-axis linkage | Yaw and pitch dual-axis linkage with angle auto-lock | Dual-axis auto stabilization gimbal (yaw and pitch) |
| Operating Voltage | DC 12 V ~ 28 V | DC 24 V ~ 60 V | |
| Control & Comm Signal | Independent PWM signal control (auto start-stop) | PWM / SBUS / TTL signal control | |
| Video Transmission | Sighting video signal output | RTSP video stream, supports integrated APP display | |
| Dampening & Servos | Dual-stage spring-back physical dampening, 360° bidirectional high-torque servos | ||
| Remote Control Distance | Max 5 km (depending on airspace and environment) | ||
| Safety & Protection | Electrostatic discharge protection, accidental trigger prevention, overcurrent/overload auto-protection | ||
| Smart Application Support | Supports target position parsing and crosshair display | Supports crosshair calibration, APP-side cursor alignment, and basic pedestrian/vehicle detection | Supports crosshair calibration, target auto-locking, dynamic tracking, AR smart identification, analysis, and data statistical sorting |

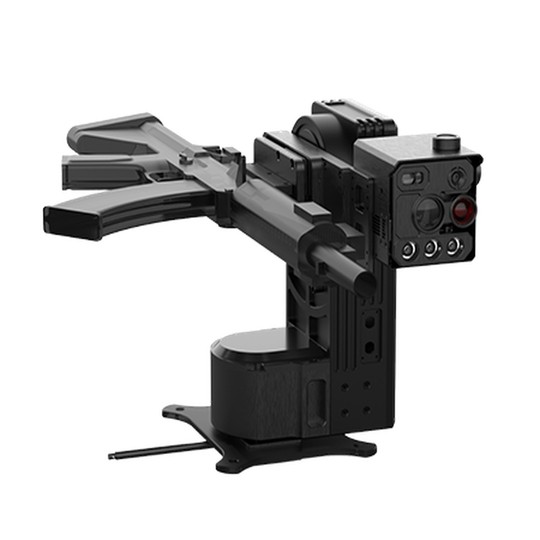

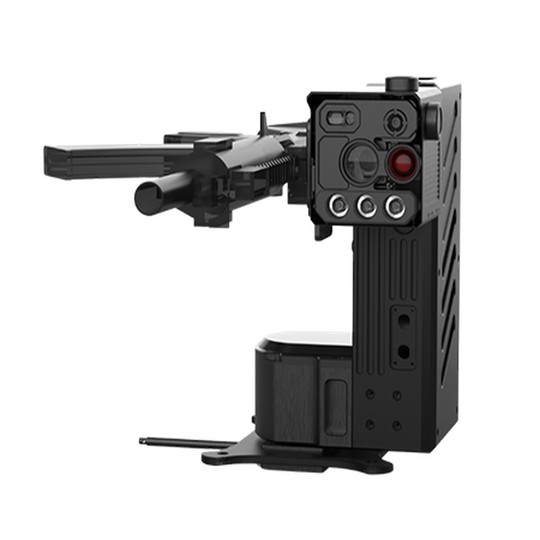

The 10 kg Grade High-Precision Servo-Stabilized Turntable is a heavy-duty dual-axis linkage electro-optical sighting system designed for medium-to-large UAVs, unmanned ground vehicles, and border outposts. The system utilizes direct-drive high-torque servo motors paired with precision reducers. It integrates a 30x optical zoom visible-light camera, a 640 × 512 high-resolution infrared thermal imaging lens, front/rear dual-channel wide-angle situational awareness cameras, and modules for laser rangefinding, laser indication, and stealth IR night-vision illumination.
With high-precision angular control (reaching ±0.05°) and a dual-stage spring-back physical vibration dampening system, combined with advanced intelligent AI & AR video algorithms, the turntable delivers excellent 24/7 capability for long-range, high-dynamic reconnaissance, situational awareness, target identification, and precision pointing lockouts.

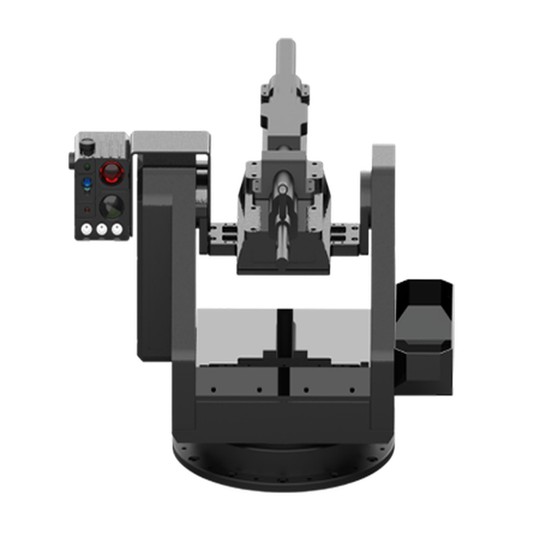

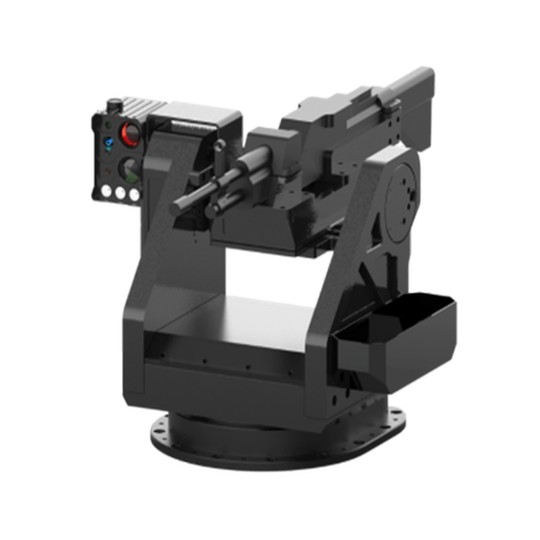

The 30 kg Grade High-Precision Servo-Stabilized Turntable is a premium dual-axis linkage servo-control platform designed for heavy-duty, all-weather tactical defense. Engineered to handle large physical payloads, its structural design and drive train are deeply optimized to support heavy searchlights, defensive emitters, or heavy sensors while maintaining a remarkably low self-weight of 15 kg through the use of high-strength aerospace alloys.
The system integrates a 30x optical zoom visible-light camera, a 640 × 512 cooled/uncooled thermal lens (50 mm), front/rear dual全景 situational awareness cameras, a high-precision laser rangefinder, a laser pointer, and a stealth IR night-vision illuminator. Paired with high-torque direct-drive servos and precision reducers, it achieves a pointing and stabilization accuracy of ±0.05° under dual-axis high-speed linkage, serving as a tactical core for heavy reconnaissance UAVs, armored personnel carriers, tactical UGVs, and shoreline sentry towers.
