I. Technical Specifications
| Specification | PULSE-15B | PULSE-13B | PULSE-13A | PULSE-10 | PULSE-7 |
|---|---|---|---|---|---|
| Frame Type | 15” / X Type | 13” / X Type | 13” / X Type | 10” / X Type | 7” / X Type |
| Material | T700 Carbon Fiber | ||||
| Flight Controller | STM32 F405 / H743 | STM32 F405 | |||
| ESC Specification | 110 A 4IN1 8 S | 90 A 4IN1 8 S | 90 A 4IN1 8 S | 65 A 4IN1 6 S | 55 A 4IN1 6 S |
| Motors | 4219 440 KV | 4214 400 KV | 3115 900 KV | 2812 900 KV | |
| Max Speed | 130 km/h | 130 km/h | 130 km/h | 140 km/h | 160 km/h |
| Wind Resistance | Level 7 (17 m/s) | Level 6 (13 m/s) | |||
| Rated / Max Payload | 7.0 kg / 8.0 kg | 6.0 kg / 7.0 kg | 3.0 kg / 4.0 kg | 1.5 kg / 2.0 kg | |
| MTOW | 13.0 kg | 11.3 kg | 6.5 kg | 3.5 kg | |
| Transmission / Control | 5.8 G 3 W VTX (FCC/CE) / ELRS 868 MHz / 915 MHz | ||||
| Battery Recommended | 8 S 16,000 mAh | 8 S 12,600 mAh 50 C | 6 S 8,500 mAh | 6 S 4,500 mAh | |
| Payload Flight Time | ~12 min | ~11 min | ~9 - 11 min | ~7 - 12 min | |
Fuselage & Material
Flagship Propulsion
Avionics & Link
Flight Limits
II. Product Overview
Aero · PULSE is an industrial and tactical-grade FPV (First Person View) multi-rotor platform custom-engineered for extreme high-speed maneuvers, professional cinematography, and heavy tactical payload delivery.

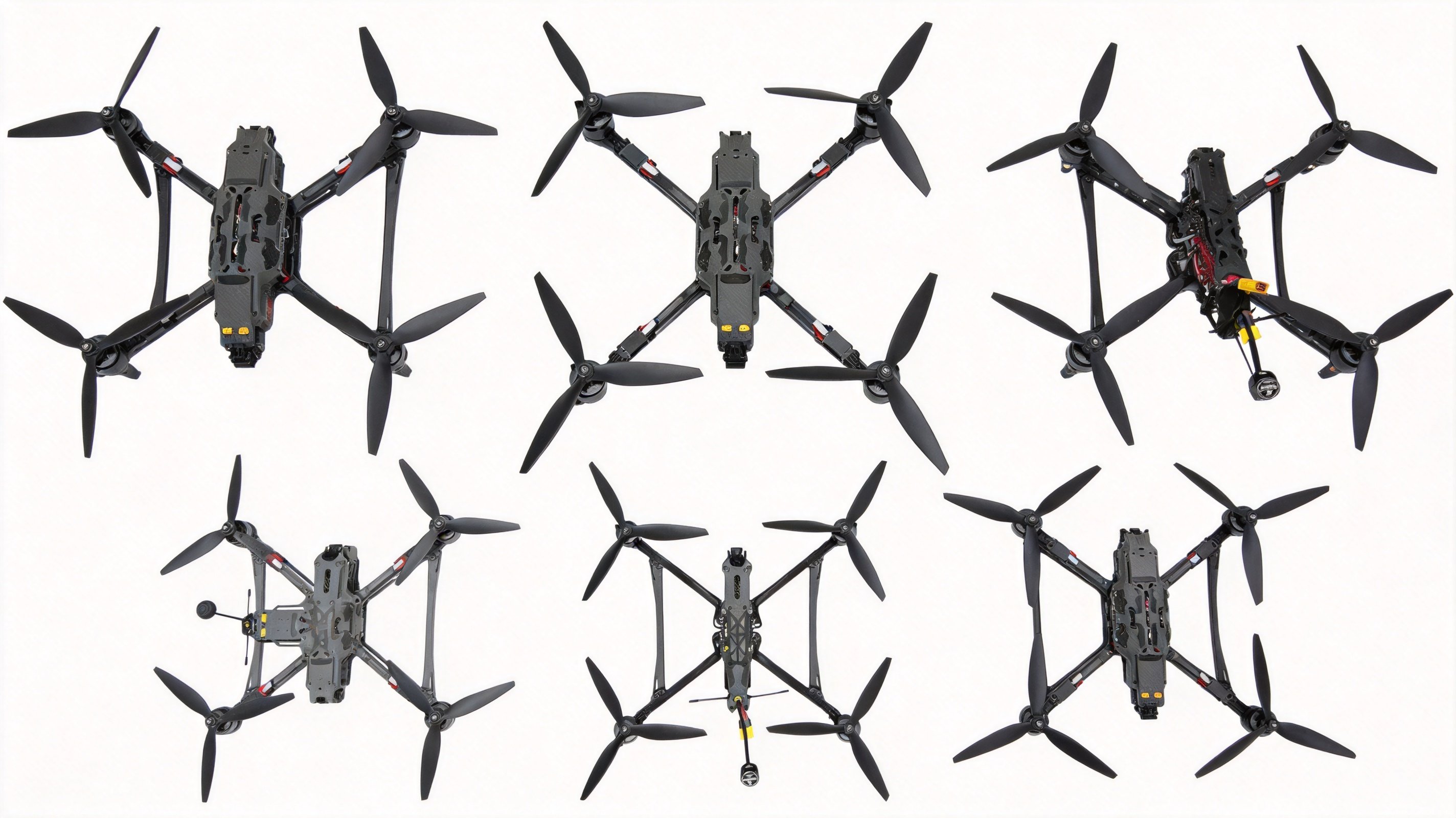

The series covers five core models, ranging from the agile 7-inch (PULSE-7) to the heavy-payload giant 15-inch (PULSE-15B). Milled from premium T700/T1000 aviation-grade carbon fiber and paired with aggressively tuned propulsion systems, the PULSE series achieves cruise speeds of up to 160 km/h. It breaks the traditional physical limits of FPV flight, realizing a massive 8.0 kg extra payload capacity. Whether it’s tracking high-speed racing cars, conducting search and rescue inside tight building interiors, or airdropping emergency medical supplies in remote border zones, the PULSE series delivers perfect “human-machine synergy” from an immersive first-person perspective.
III. Core Capabilities & Mechanical Design
Redefining the physical boundaries of FPV flight through extreme structural rigidity and ultimate power-to-weight ratio.

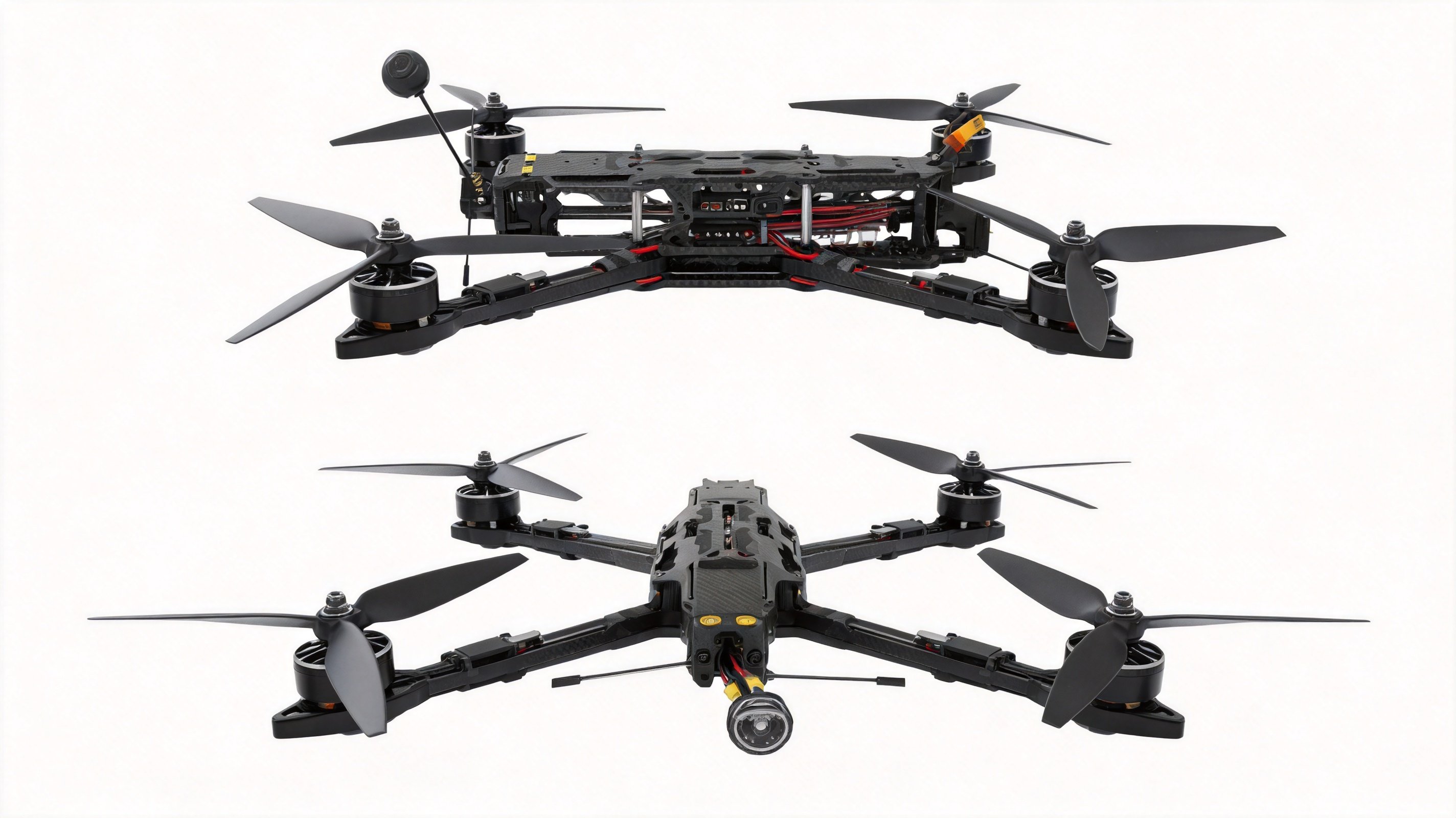

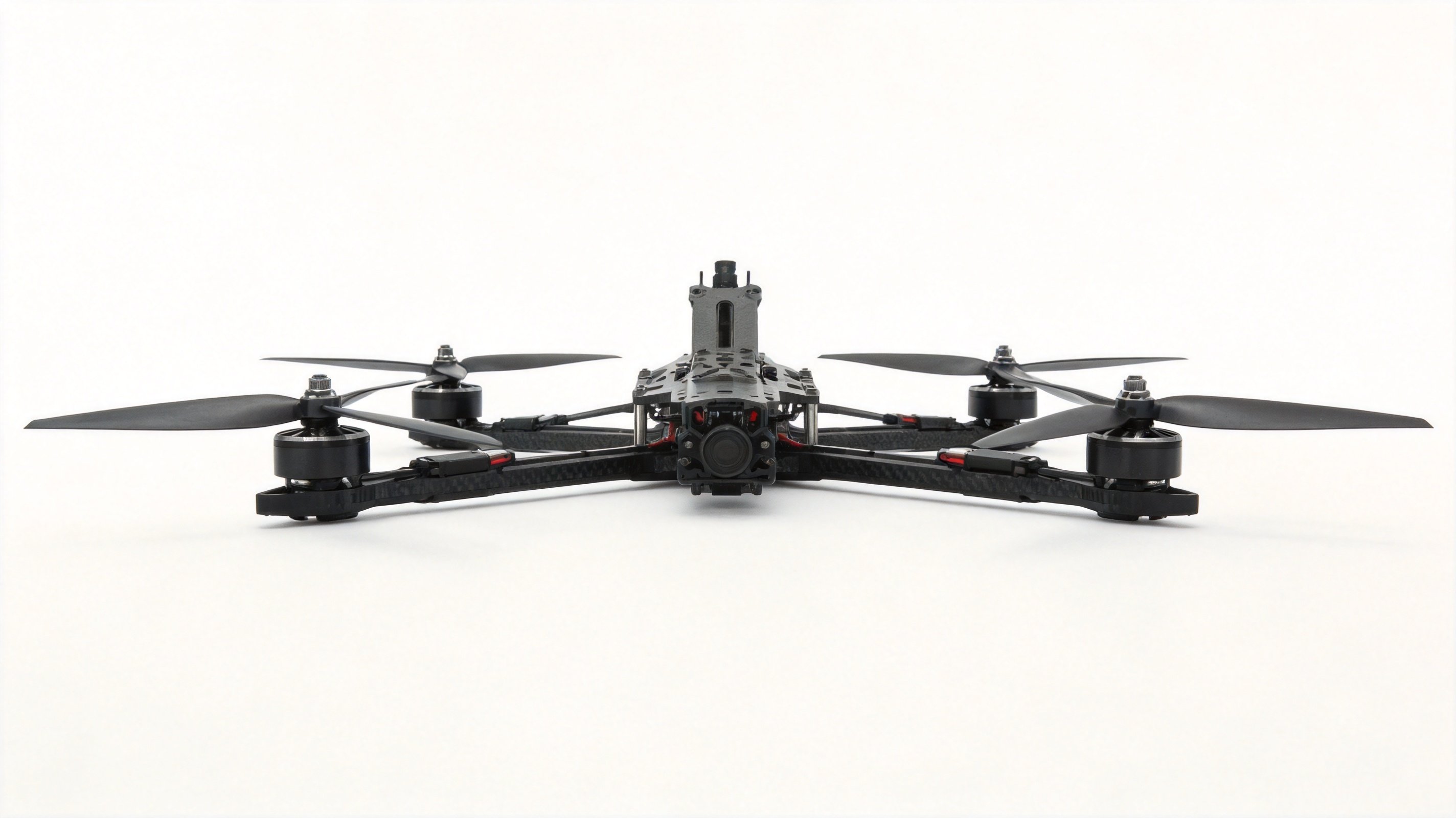

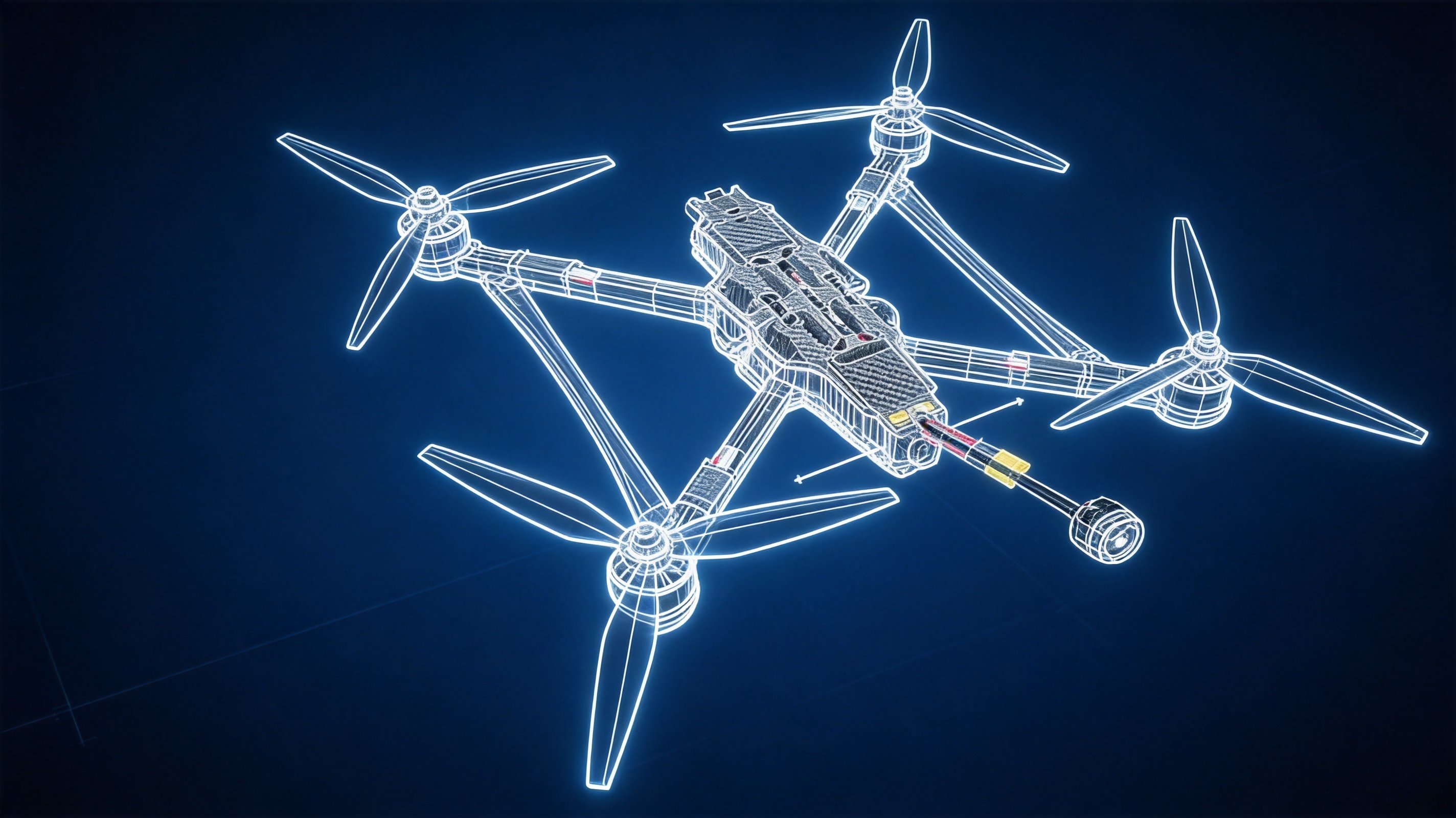

Aviation-Grade X-Frame
Featuring a pure symmetric X-frame design optimized through rigorous flow dynamics and stress simulation to ensure uniform force distribution and centralized mass. The 6 mm thick high-modulus carbon fiber arms provide excellent torsional rigidity, keeping the airframe rock-solid even under 160 km/h high-G maneuvers or heavy wind-resistance environments.

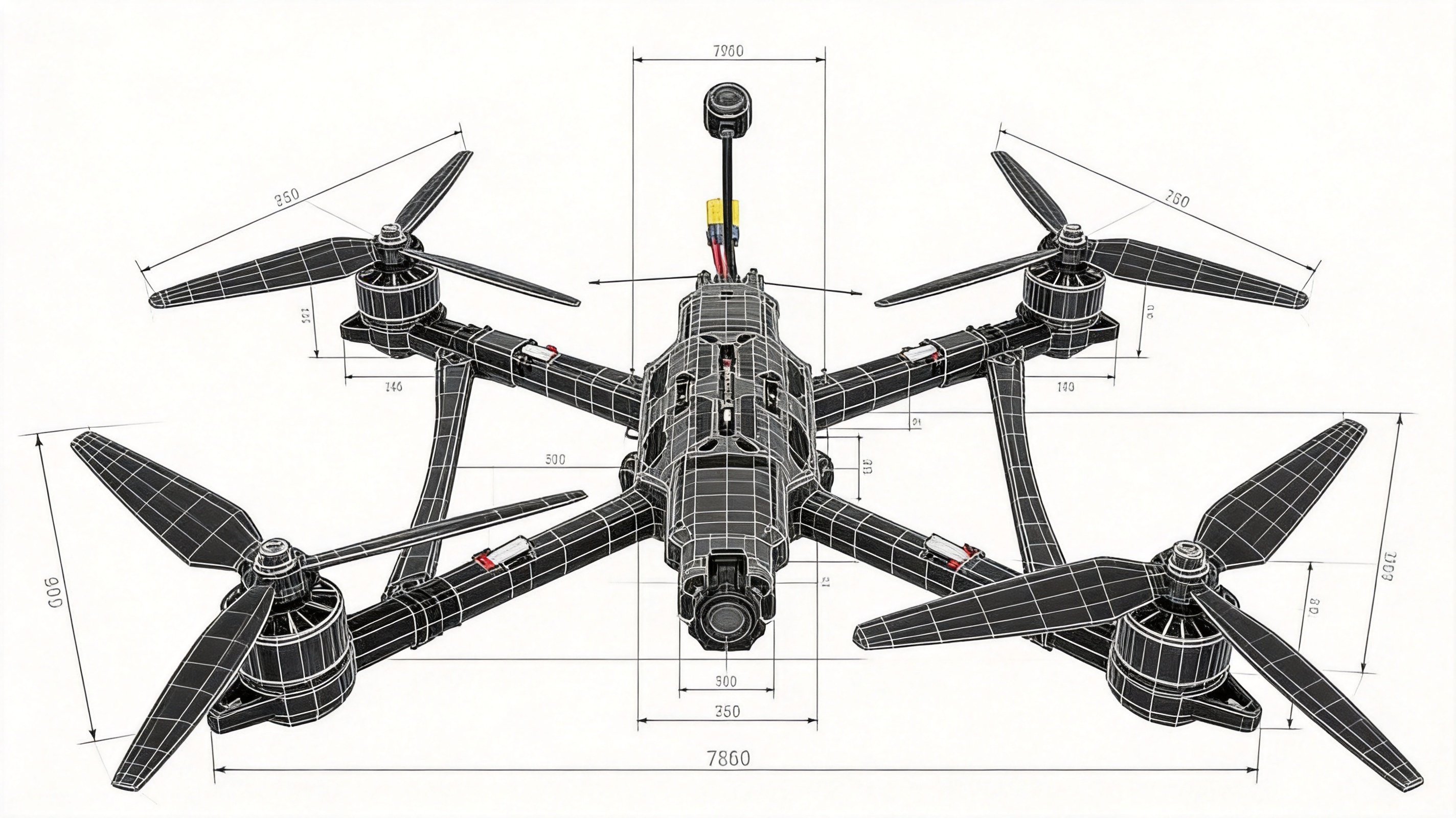

Brute Power, Breaking Limits
A power redundancy solution custom-tailored for heavy loads and high-altitude missions. The flagship PULSE-15B features giant 4219 440 KV brushless motors and a 110 A 8 S 4-in-1 ESC (supporting DShot600), delivering a peak lift for a 13.0 kg Maximum Takeoff Weight (MTOW). Its 8.0 kg payload capacity makes carrying professional cinema cameras (like RED Komodo or ARRI Alexa Mini) or heavy tactical equipment effortless.

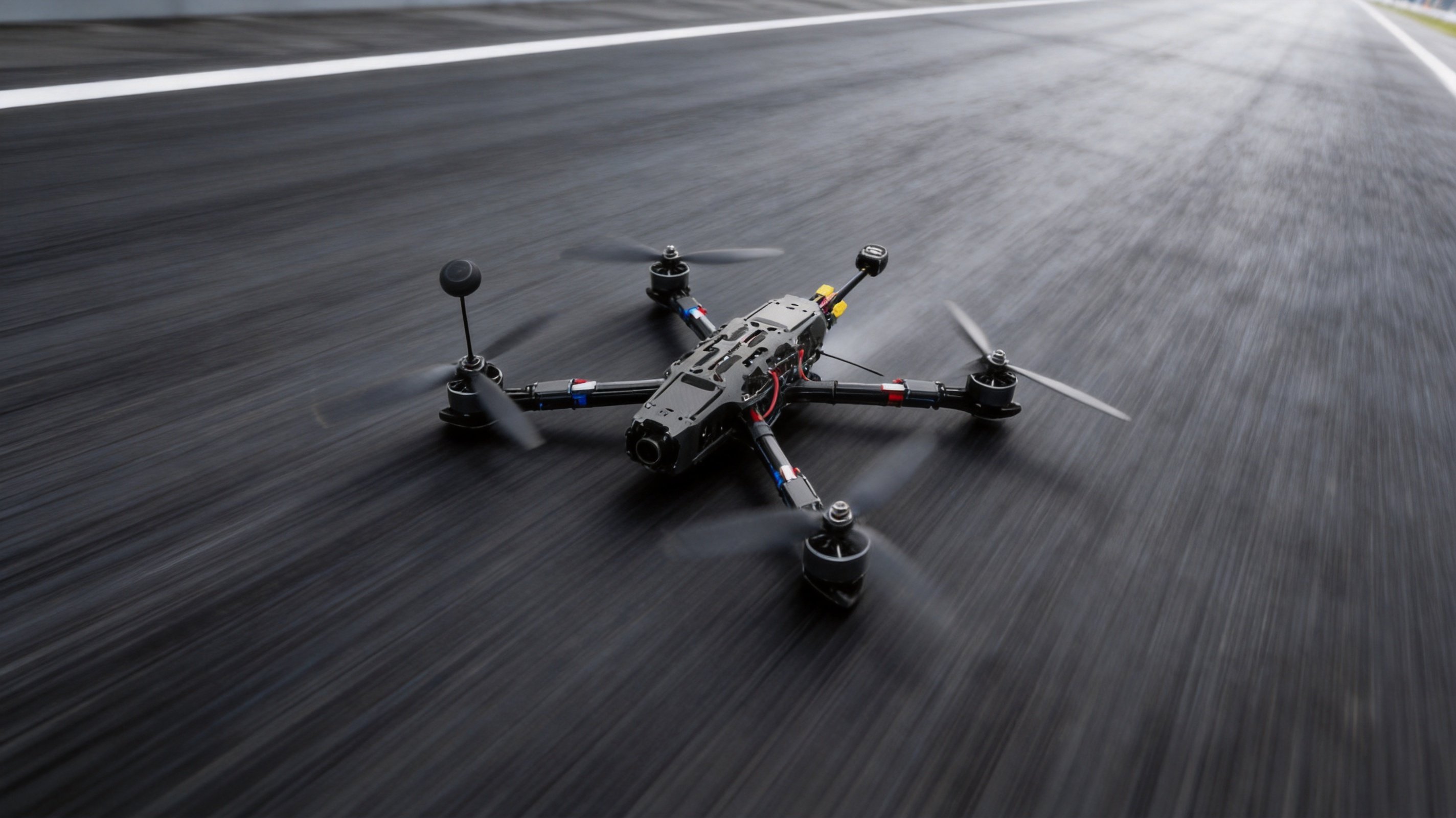

Unmatched Velocity & Agility
Thanks to its outstanding power-to-weight ratio and aerodynamic optimizations, the agile PULSE-7 hits speeds of up to 160 km/h. Even when carrying extra payloads, control response latency is compressed below 20 ms, maintaining nimble rolls and ultra-small turn radii.
3W VTX, High Penetration
To adapt to challenging operating environments, the system features a 5.8 G 3 W high-power video transmitter (FCC/CE adjustable) paired with a 151 mm 3.5 dBi high-gain antenna. It cuts through steel-concrete walls or dense forests, providing the pilot with zero-latency, high-definition immersive feedback.
IV. Avionics & Flight Control
The brain of Aero · PULSE is tuned by championship-level FPV pilots to make aggressive power highly controllable and precise.

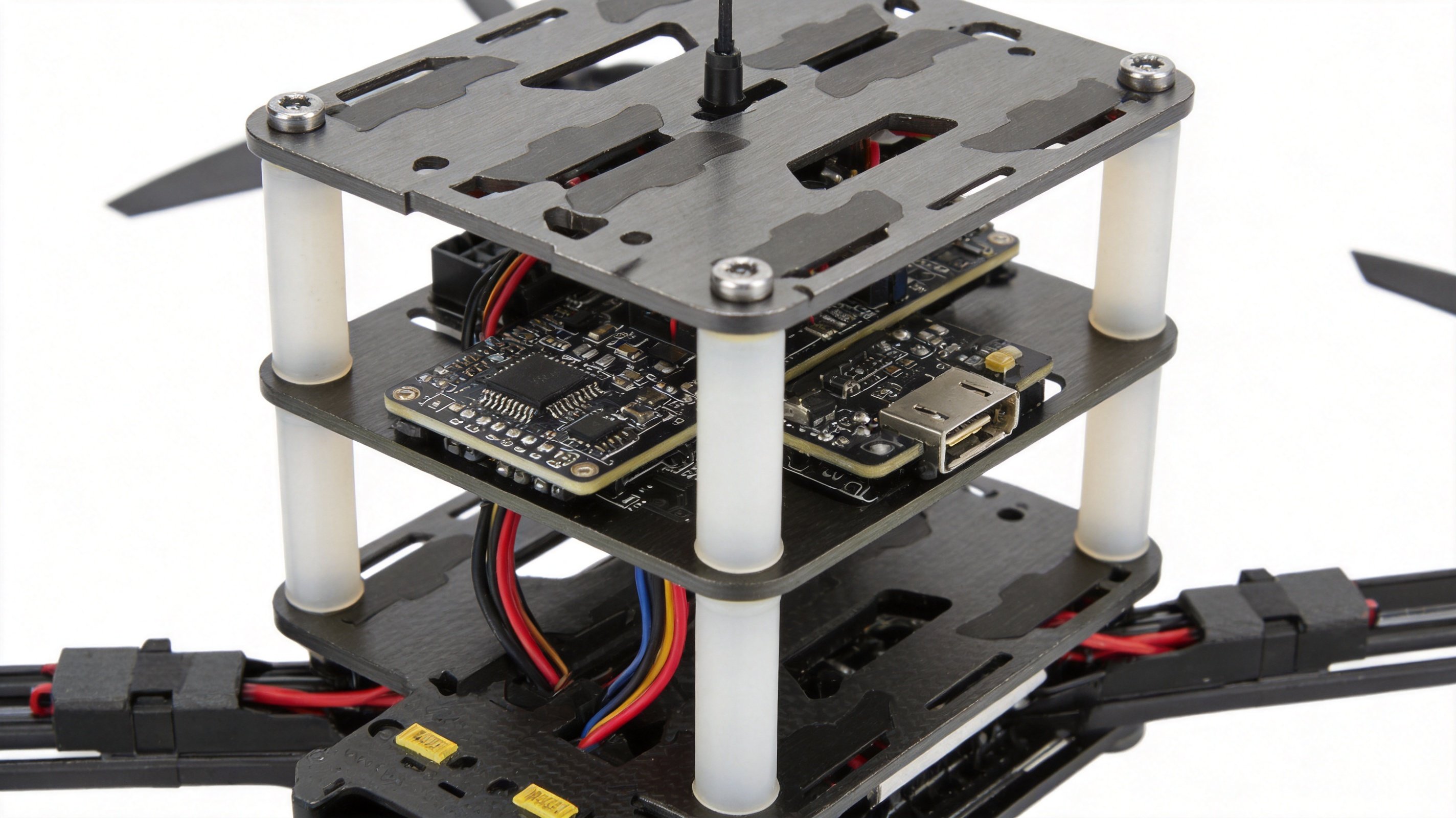

High-Performance FC
Standard STM32 F405 / H743 flight controller, supporting up to 8 kHz PID attitude calculation, ensuring silky-smooth stick feel and locked attitude even under asymmetric payloads.
High-Current 4-in-1 ESC
Equipped with 55 A to 110 A independent heat-sink 4-in-1 ESCs supporting 6 S / 8 S high-voltage protocols and all-weather protective coating to handle current spikes during heavy climbs.

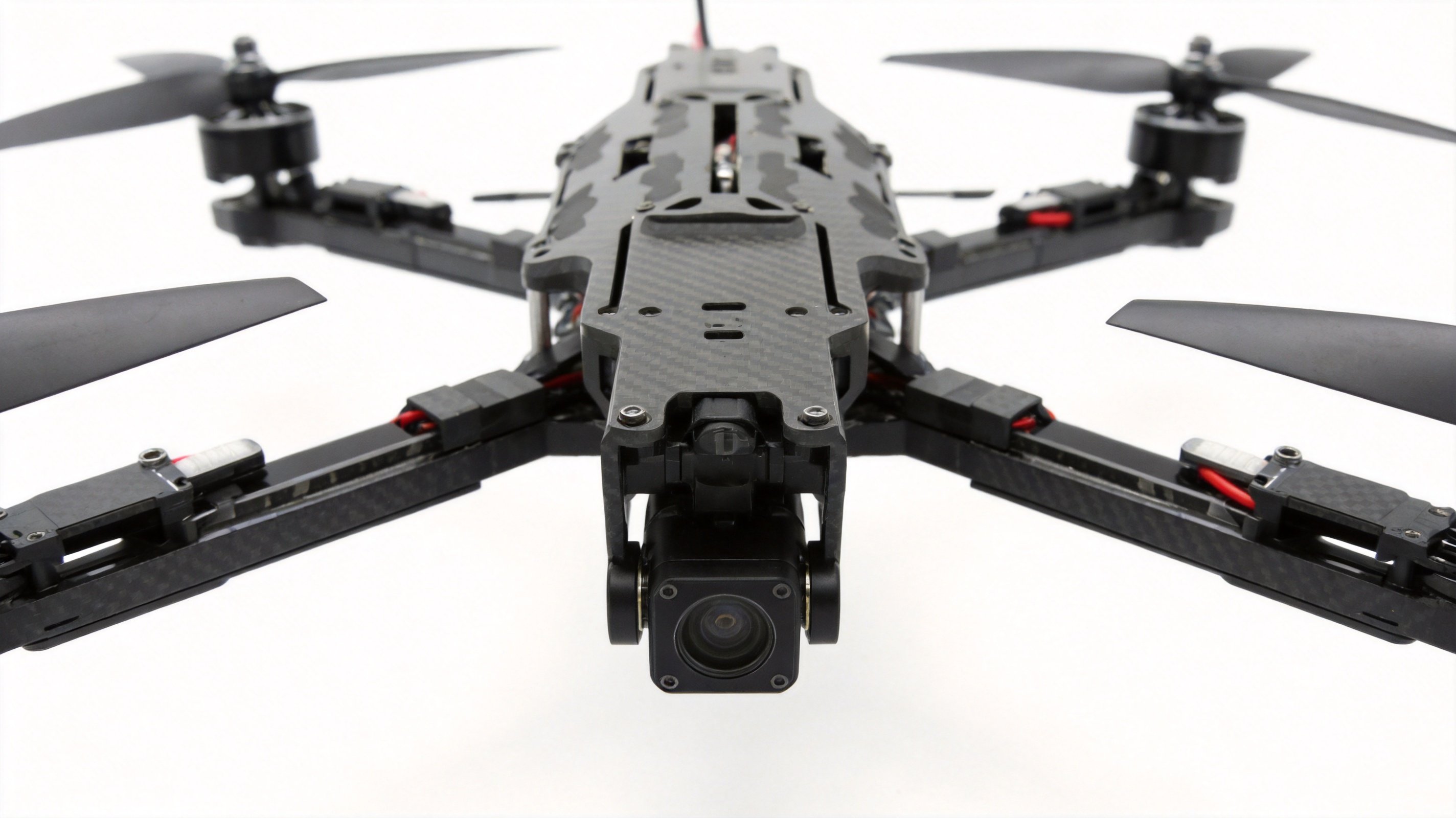

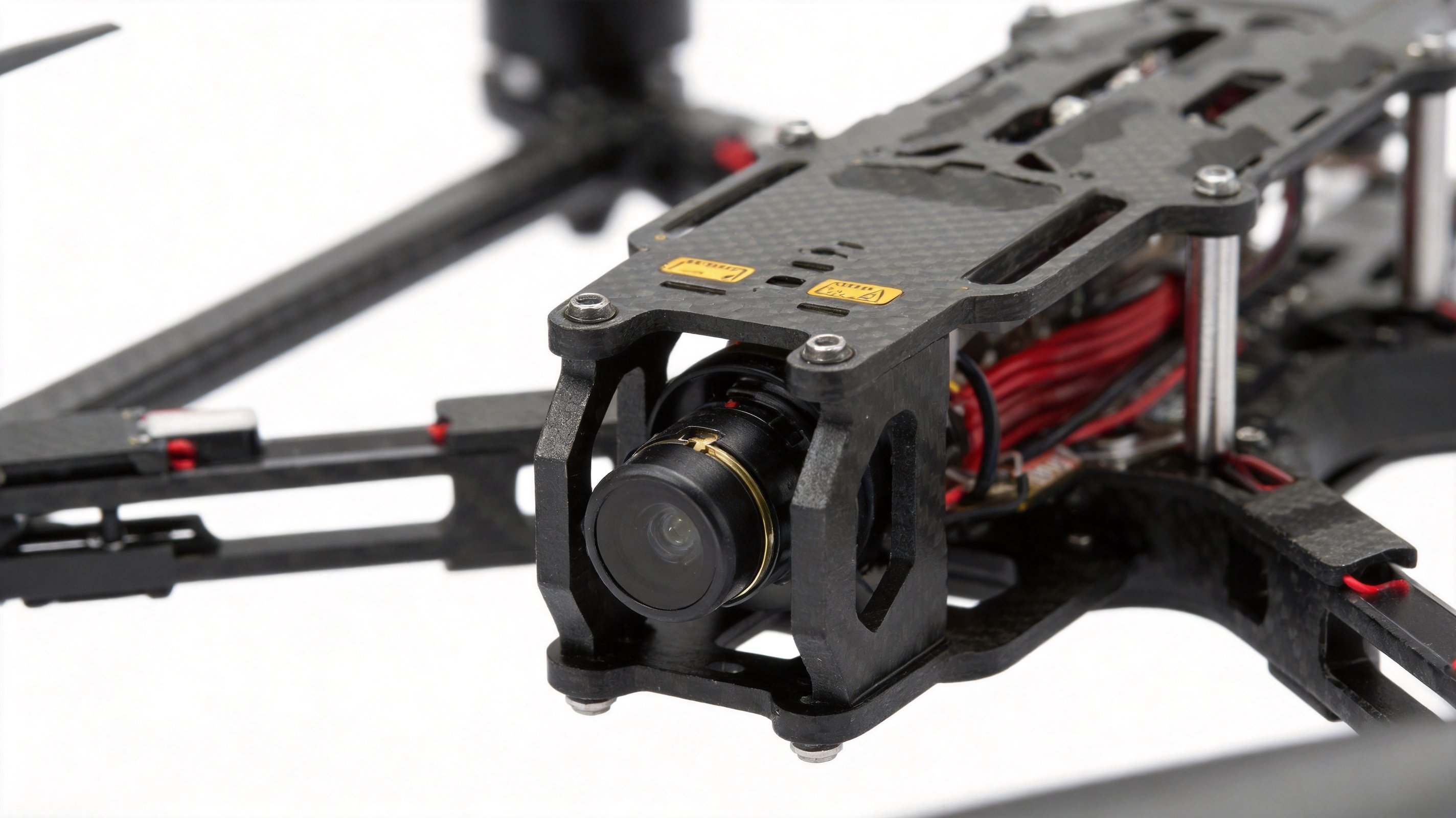

Ultra-Wide HDR Camera
1,500 TVL, 165° ultra-wide angle starlight FPV camera. Wide Dynamic Range (WDR) technology ensures crystal-clear dark details in low-light or backlit environments.
FPV OSD FEED
Championship-Grade Tuning
Equipped with a standard ELRS 868 MHz / 915 MHz receiver (automatically adapting to local radio regulations), offering superior penetration and anti-interference compared to traditional 2.4G. Perfect calibration matches the 3 W VTX’s long-range operating radius, giving pilots total control confidence.
V. Power Management & Endurance
To satisfy this performance beast, the PULSE series utilizes a cutting-edge power system.

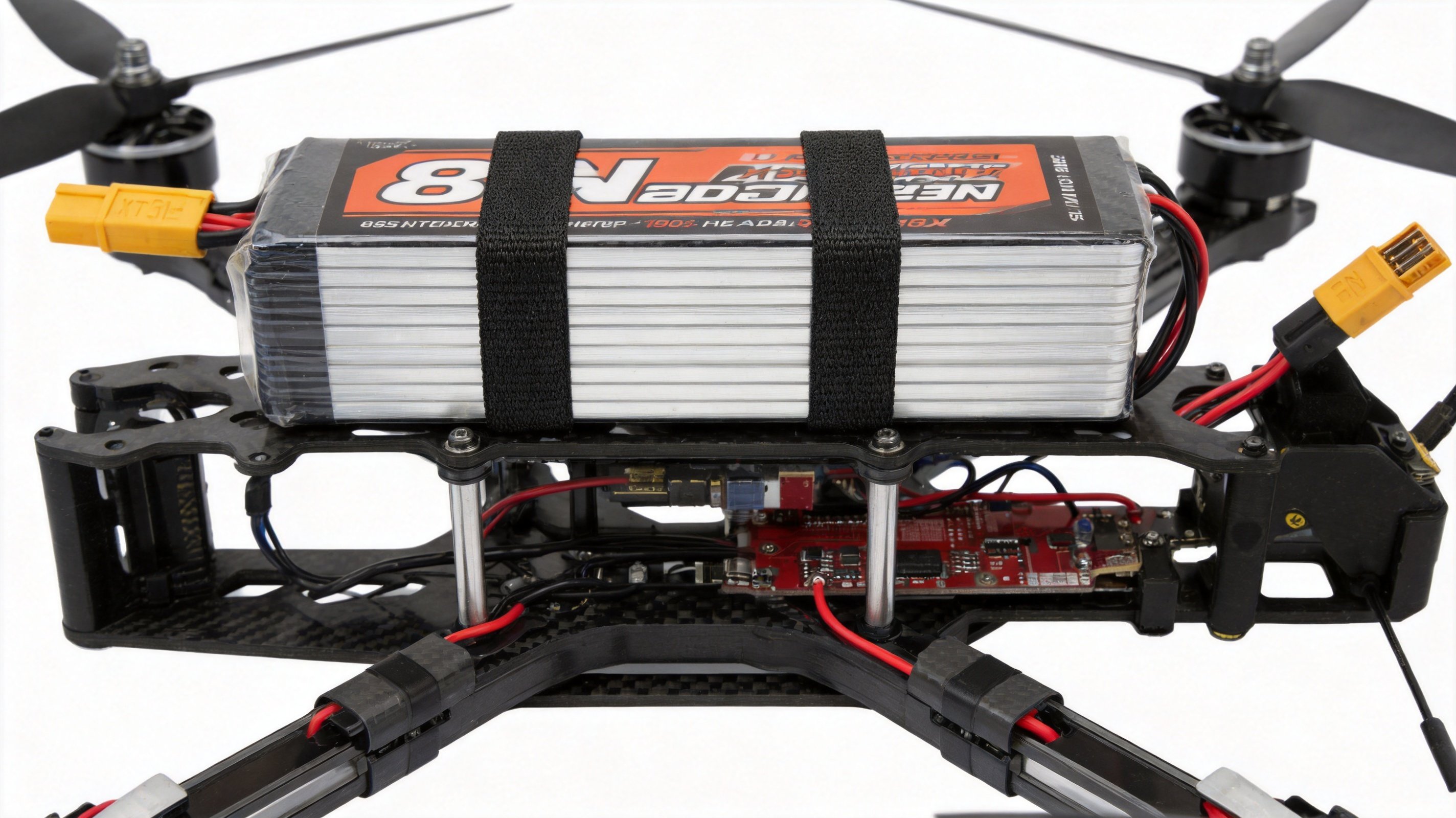

High-Voltage Power Management
PULSE uses a high-voltage 8 S / 6 S architecture. The heavy 13” and 15” models operate on a native 29.6 V 8 S system, lowering current heat loss in cables and ESCs while delivering maximum motor torque. Combined with a recommended 8 S 16,000 mAh high-rate industrial battery, it maintains an impressive 12 minutes of flight time under a real 7.0 kg payload, ensuring successful mission delivery.
VI. Global Use Cases
Unlocking new operational dimensions globally through speed, load, and tactical precision.
High-Speed Cinematography
Easily carrying professional cinema cameras at speeds over 130 km/h to capture stunning action shots for top-tier studios.
High-Rise Firefighting
Carrying glass-breakers or heavy dry-powder fire-extinguishing bombs to fly into high-rise buildings for early firefighting.

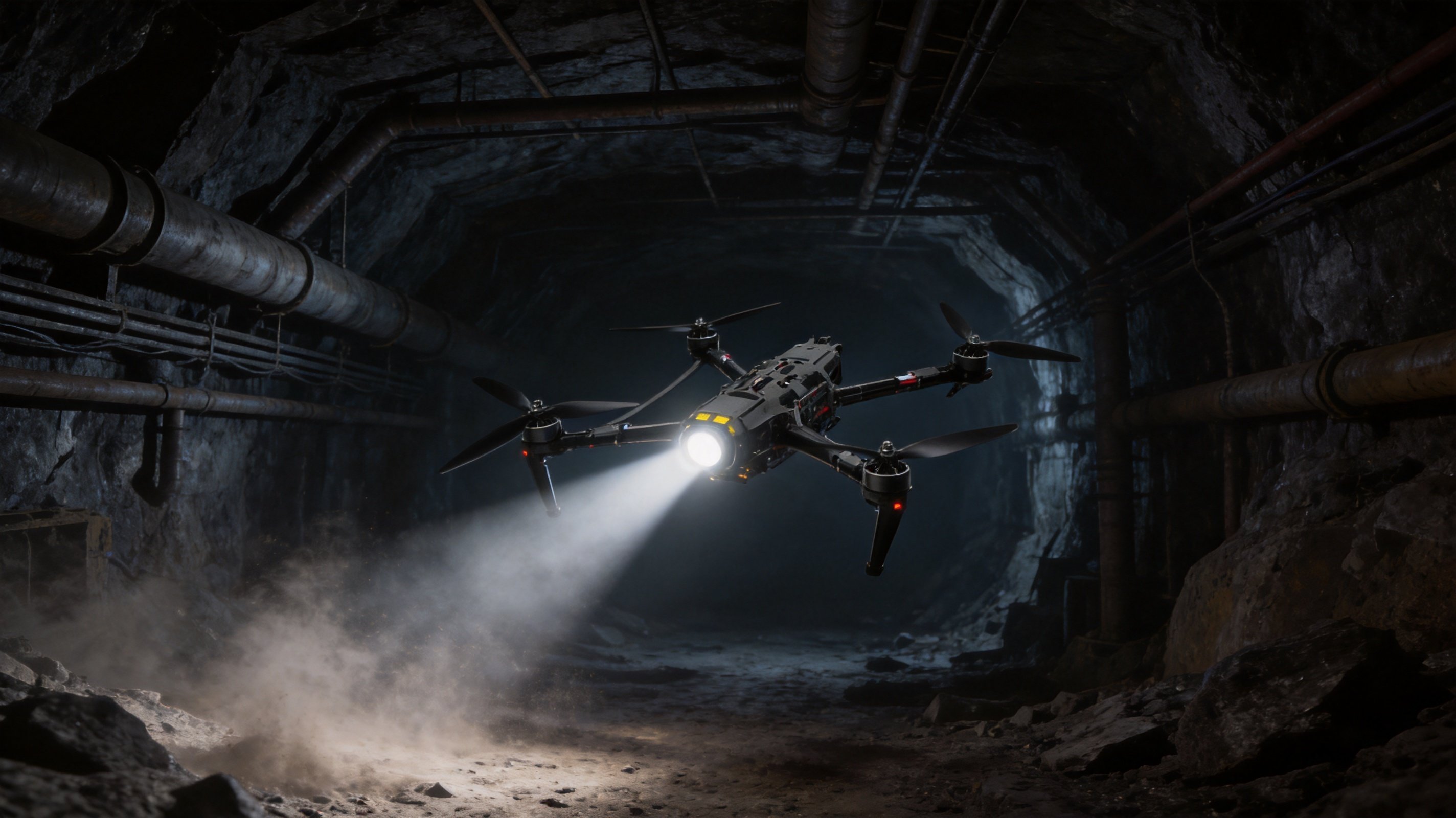

Non-GPS Exploration
Relying on manual Acro mode and strong radio penetration to explore deep mines, tunnels, or hazardous ruins without GPS signals.
Heavy Tactical Airdrop
Utilizing up to 8.0 kg payload capacity to deliver emergency medical and tactical supplies to isolated border posts or deep valleys.
VII. Flight Operation & Safety
Heavy-duty FPV platforms possess tremendous kinetic energy. Operators must strictly follow these SOPs.
Rotor Security
Always check and secure all motor screws and locknuts with tools before takeoff. A 15-inch propeller spinning at tens of thousands of RPM can cause irreversible catastrophic consequences if loose.
Thermal Management
High-power 3 W VTX units generate substantial heat. Always take off within 3 minutes of powering on to utilize physical airflow cooling. Never leave the drone powered on static on the ground for too long.
Dual Battery Straps
Extreme maneuvers generate massive G-forces. Heavy batteries must be double-secured with at least two high-strength Kevlar straps and 3M non-slip pads to prevent mid-air battery ejection.
Safety Buffer Zone
Never perform heavy FPV tests over uncoordinated crowds. Ensure a strict minimum clearance radius of 50 meters and follow local airspace authority rules.
VIII. Global Delivery & Packaging
We provide secure, BNF (Bind and Fly) out-of-the-box configurations with top-tier international logistics protection.
Standard Kit
Each aircraft undergoes extensive PID tuning, long-range VTX burn-in, and propulsion stress tests. Packed in custom high-density EVA foam and heavy Pelican-class flight cases.
Global Shipping
For safe global transit, propellers are disassembled by default. All internal wiring harnesses are secured with industrial vibration-resistant glue.
HazMat Compliance
The included high-rate LiPo batteries comply fully with UN38.3 standards. Our operations department assists global clients with customs clearance and dangerous goods transport.
Export Compliance & Disclaimer Notice
1. Aero · PULSE is a pure manual FPV platform without self-stabilization (Acro mode). A minimum of 100 simulator hours or equivalent model experience is strictly required to prevent injuries or damage.
2. Under full load, pilots must perform empty-weight test flights in open areas first to adapt to shifting center-of-gravity and modified braking inertia.
3. Dynamic frequencies are customizable. Operators must strictly follow local radio regulatory agencies (e.g. FCC / CE standards) to ensure licensed and legal operations.
