Technical Data
Technical Specifications
This system consists of multiple highly modular electromagnetic/pneumatic/impact intelligent droppers, perfectly matching Aero F1200 / F1800 heavy-load multi-rotor platforms.
1. YC-10kgX4 Multi-stage Dropper
Size 305x130x265 mm (C100)
Net Weight 2.0 kg
Structure Material Aviation aluminum alloy, stainless steel
Operating Voltage DC 12 V - 80 V (High-Voltage Adaptive)
Mechanical Security Performance Single-stage tension: 30 kg
Payload Capacity 2 - 6 stages independent electromagnetic release
Link PWM Signal / High-Sensitivity Servo Trigger
Release Accuracy Range 5.0 - 10.0 km
2. Multi-functional Auto-Lock Dropper
Size 235 x 110 x 80 mm
Net Weight 0.9 kg (900 g Ultra-light Design)
Structure Material 304 stainless steel, aviation aluminum, carbon fiber
Operating Voltage DC 12 V - 80 V (Electromagnetic Adaptive)
Mechanical Security Performance Payload lock: High-reliability electromagnetic self-locking
Payload Capacity Supports up to 6 rounds quick-mount rack
Link SBUS Signal Input / PWM Output
Release Accuracy Range 5.0 - 10.0 km
3. 60 mm Multi-round Dropper
Size 255x255x200 mm (6 rounds)
Net Weight 2.4 kg (excluding munitions)
Structure Material Aviation aluminum, stainless steel, carbon fiber
Operating Voltage DC 12 V - 80 V
Mechanical Security Performance Compatible Munition: 60 mm Mortar Shell
Payload Capacity 2 / 4 / 6 rounds vertical bay
Link SBUS Signal / Automatic Single or All Release
Release Accuracy Range Airdrop Accuracy: 1 - 3 m
4. 80 mm Heavy Dropper
Size 305x305x265 mm (6 rounds)
Net Weight 3.5 kg (excluding munitions)
Structure Material Aviation aluminum, stainless steel, carbon fiber
Operating Voltage DC 12 V - 80 V
Mechanical Security Performance Compatible Munition: 80 mm Mortar Shell
Payload Capacity 2 / 4 / 6 rounds vertical bay
Link SBUS Signal / Automatic Single or All Release
Release Accuracy Range Airdrop Accuracy: 1 - 3 m
5. 82-2 mm Grenade Dropper
Size 320x220x150 mm (6 rounds)
Net Weight 2.5 kg (excluding munitions)
Structure Material Aviation aluminum, stainless steel, carbon fiber
Operating Voltage DC 12 V - 80 V
Mechanical Security Performance Compatible Munition: 82-2 mm Grenade
Payload Capacity 2 / 4 / 6 rounds slot-bay
Link SBUS Signal / Manual Collar Release
Release Accuracy Range Release Accuracy: 1 - 3 m
6. Multi-model Custom Dropper
Size 220x180x100 mm (2-10 rounds)
Net Weight 600 g - 5.0 kg (depending on specs)
Structure Material Aviation aluminum, stainless steel, carbon fiber
Operating Voltage DC 12 V - 60 V (wide-temp adaptive)
Mechanical Security Performance Compatible Caliber: 48 - 120 mm
Payload Capacity 2 - 10 tandem custom mount slots
Link SBUS to PWM / Max 10 independent channels
Release Accuracy Range Release Accuracy: less than 2.0 m
Engineering & Technology

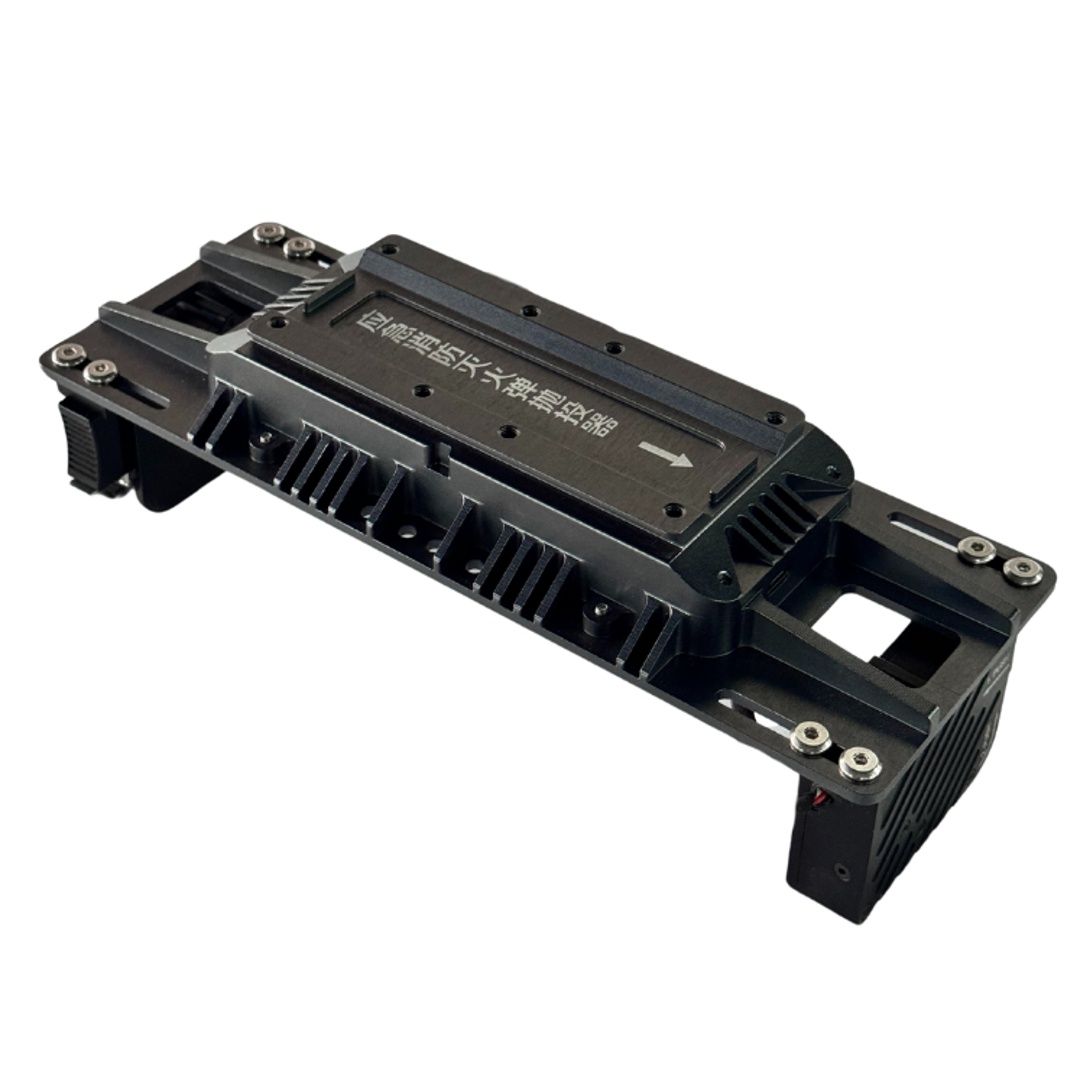

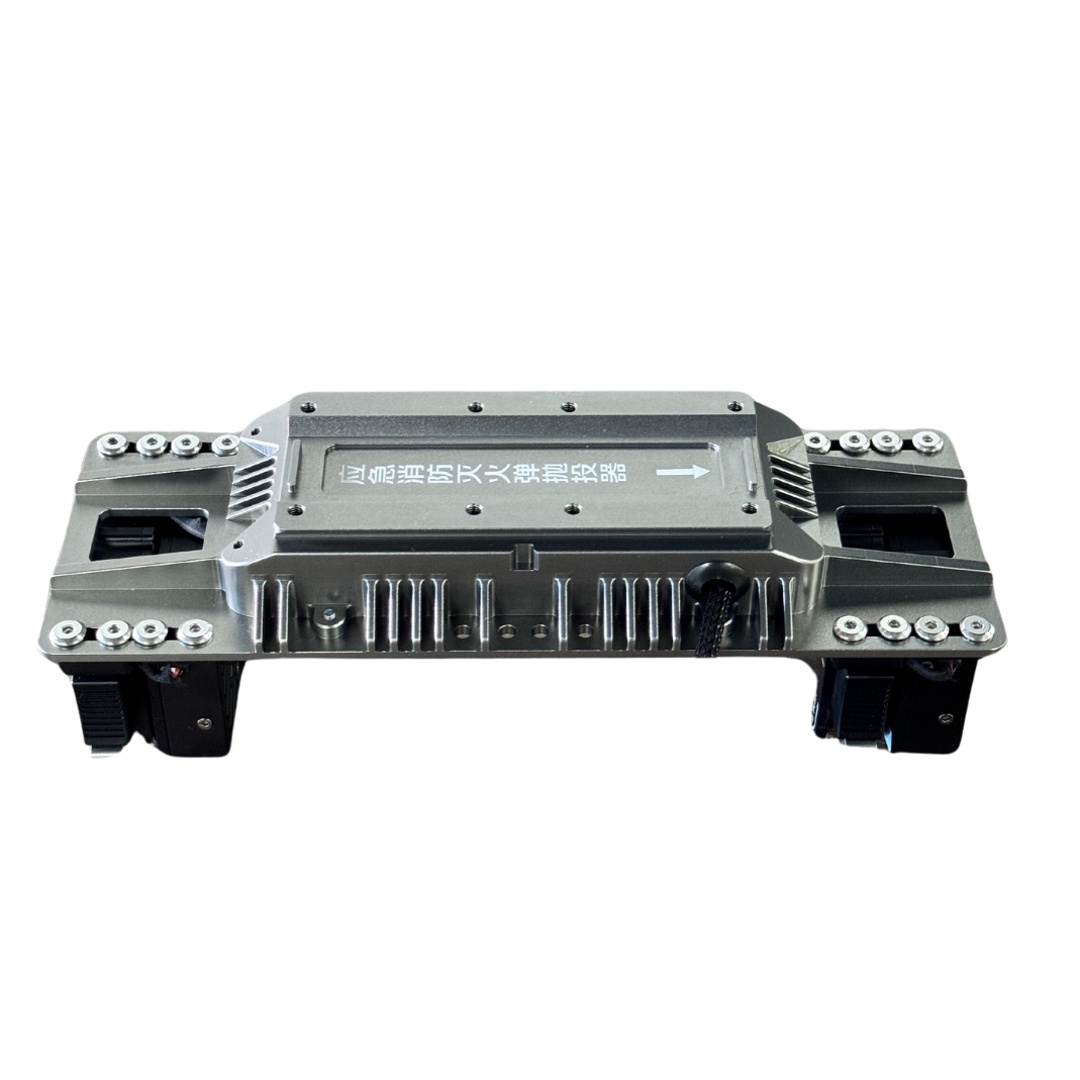

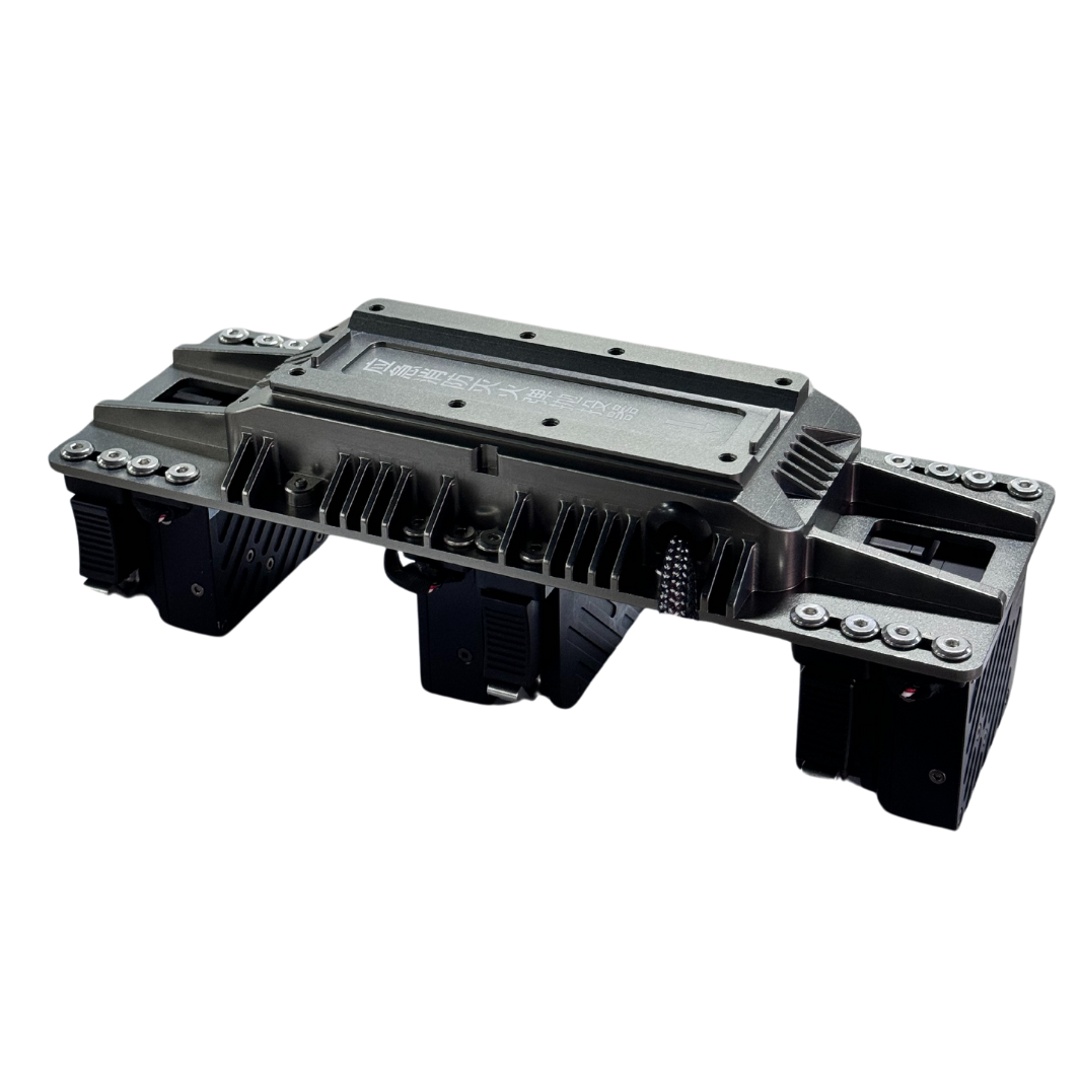

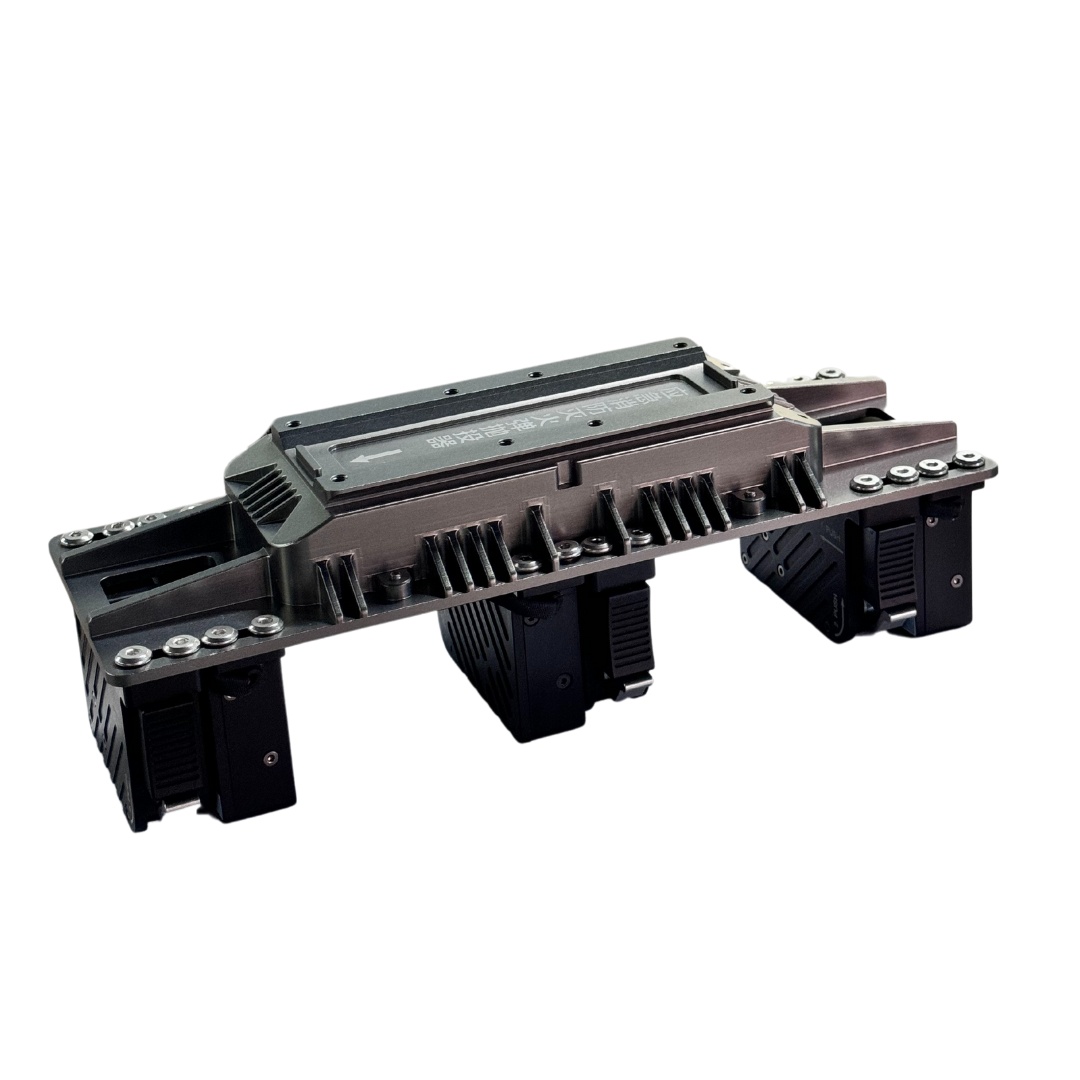

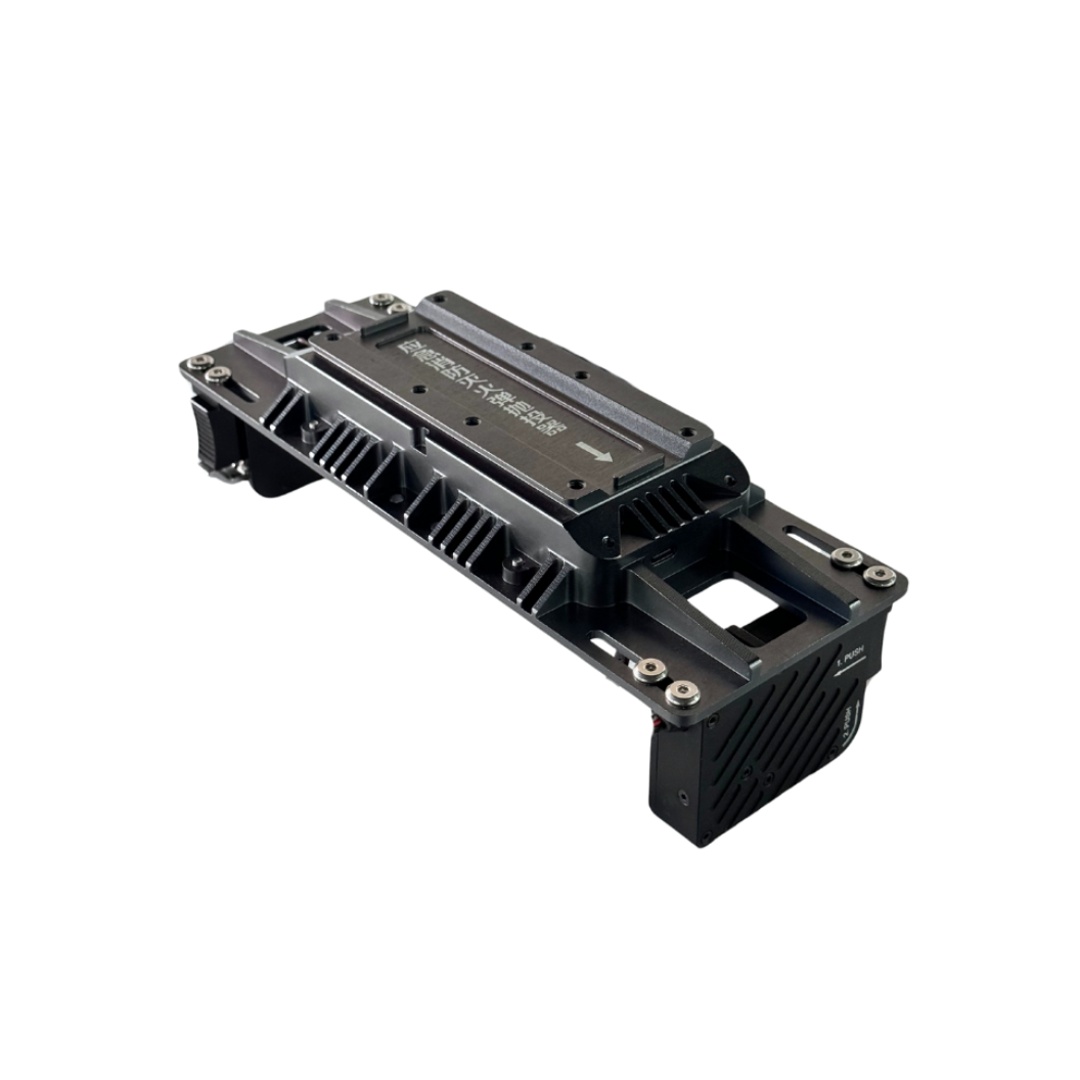

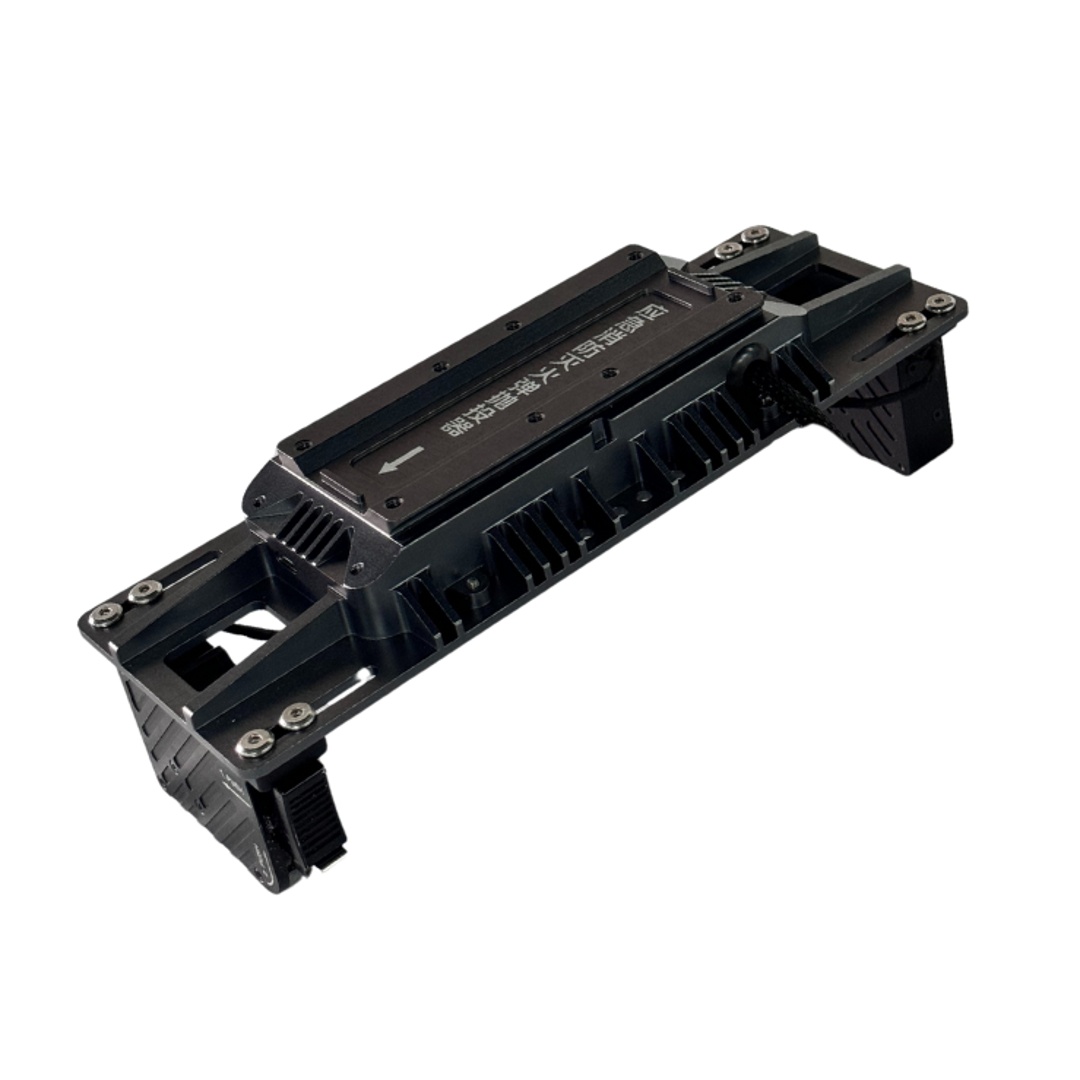

Aero-Dropper Smart Dispenser
The Aero-Dropper Smart Dispenser is specifically designed for gravity electromagnetic self-locking release, ensuring the absolute locking safety of heavy rescue materials and emergency medical boxes under high-gravity flight overloads, while providing millisecond-level power-off release response.
Core Technical Specifications Table
YC-50kgX4 Multi-purpose Dropper
Dimensions 235 x 110 x 80 mm
Single-stage Tension 50 kg
Release Capacity 2 - 6 stages independent electromagnetic release
Total Weight 0.8 kg (Ultra-light Enclosure)
Supply Voltage DC 24 - 80 V (adaptive wide voltage input)
Operating Temperature -30 °C to 60 °C
Quick Mount Method Supports standard slide rail quick release
Mounting Method Rigid Fixed Mounting
Trigger Method UAV PWM signal servo trigger
Control Method Equipped with independent physical safety switch, supporting remote control / UAV integrated control
Release Accuracy 1 - 3 m
Control Range 5 - 10 km
Product Gallery
Product Gallery
Engineering & Technology
60 mm Caliber Tactical Vertical Munition Dropper
This series of vertical dropper tubes is tailor-made for standard 60 mm caliber tactical munitions, effectively avoiding aerial jams or large swings.
60 mm Dropper Technical Specifications Table

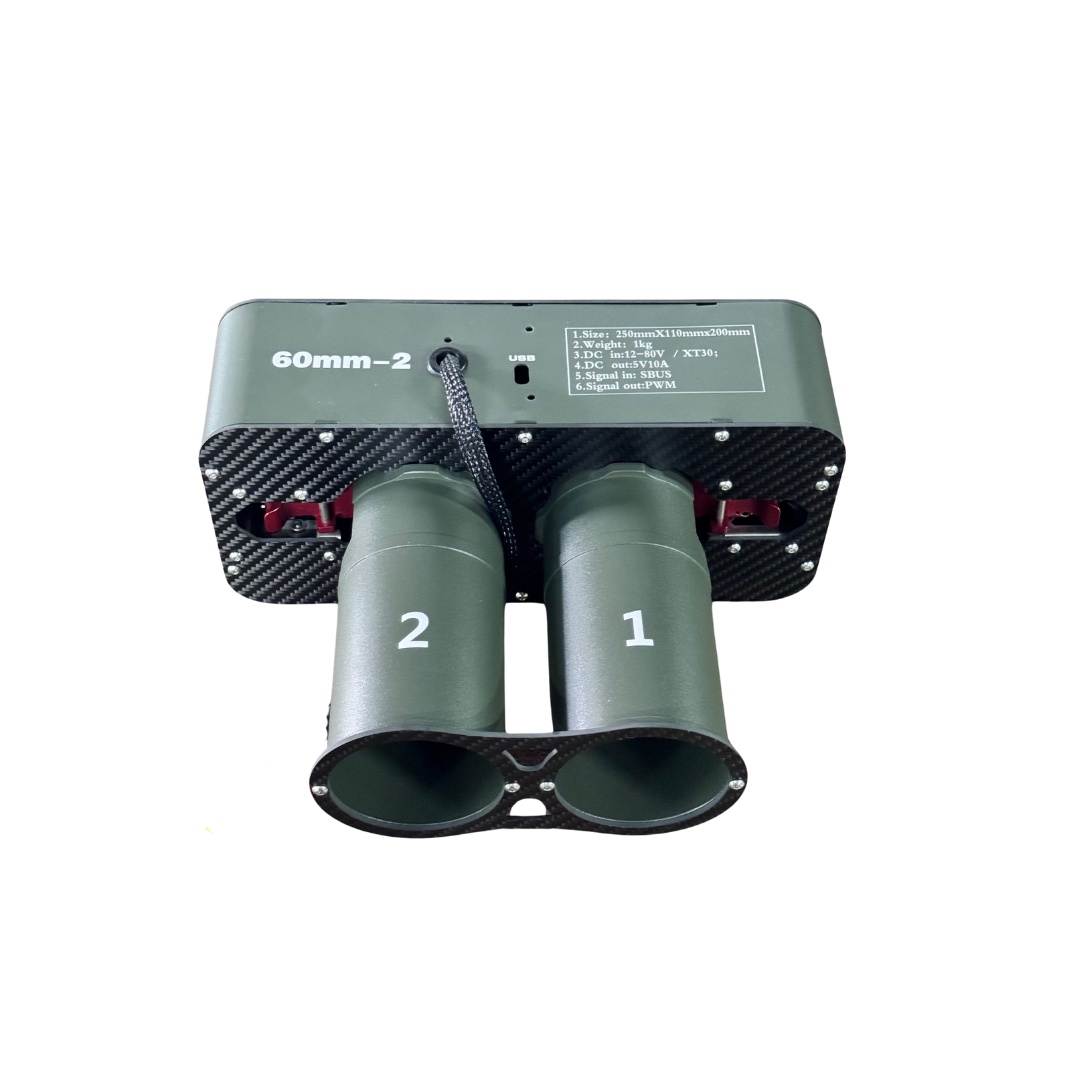

60mm-2
Dimensions 255x110x200 mm
Net Weight 1.0 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Bottom-up impact automatic lock
Release Method Automatic single or sequential/all release
Caliber Size Fits 60 mm caliber munition, single round 1.5 kg
Munition Capacity 2 rounds
Control Method SBUS signal ch 9-14 / 6-ch PWM
Compatible Platform D1200 / F1800 class platform

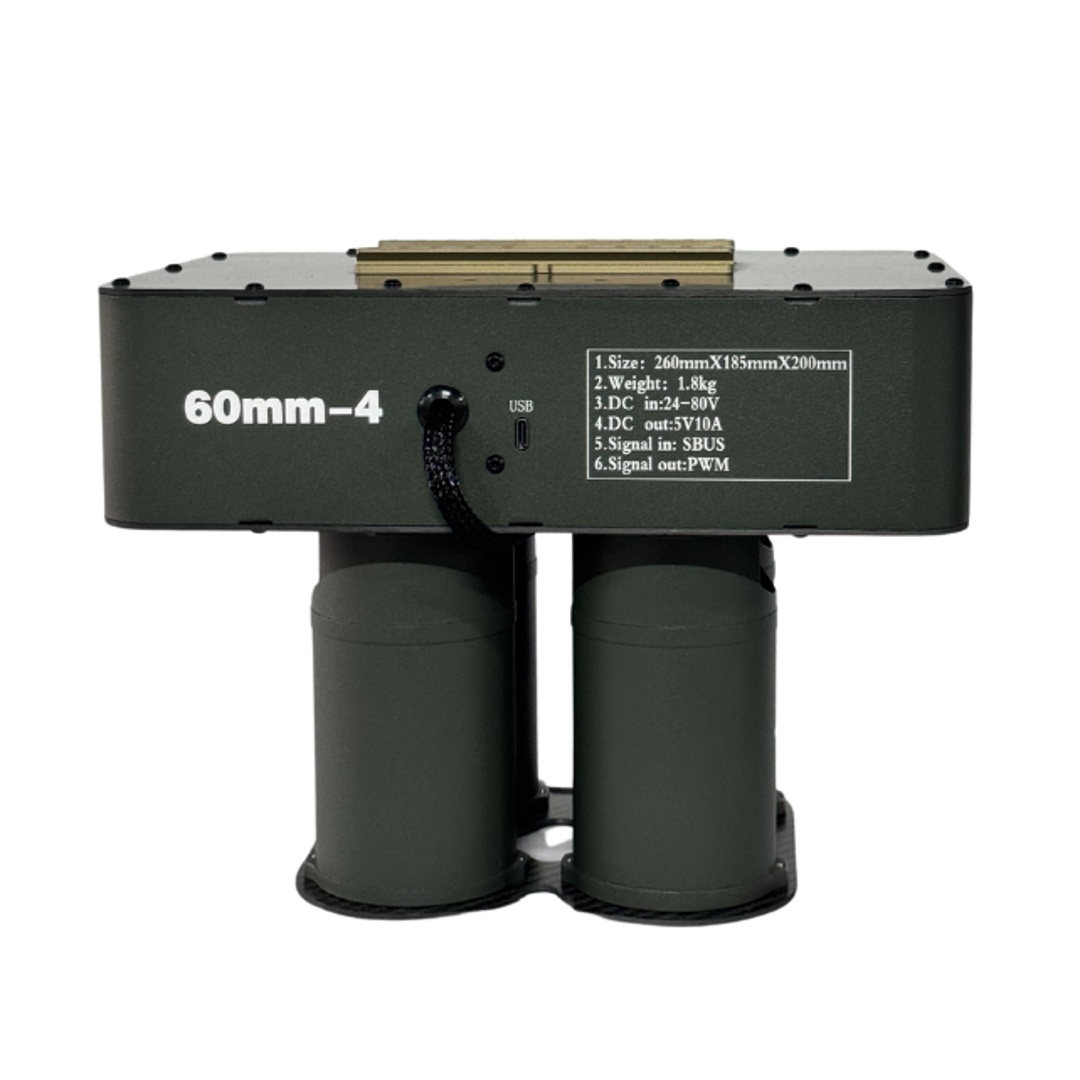

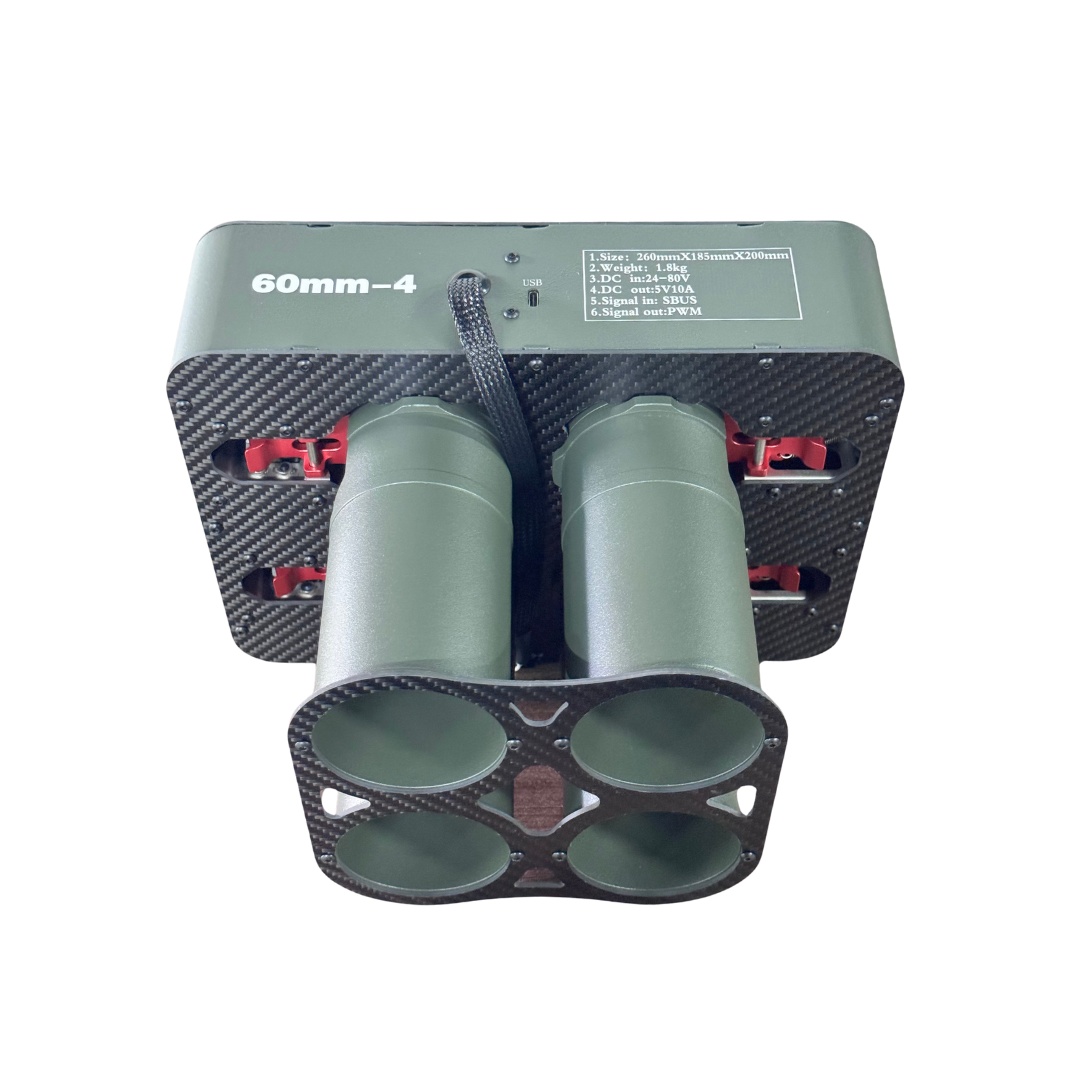

60mm-4
Dimensions 255x186x200 mm
Net Weight 1.8 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Bottom-up impact automatic lock
Release Method Automatic single or sequential/all release
Caliber Size Fits 60 mm caliber munition, single round 1.5 kg
Munition Capacity 4 rounds
Control Method SBUS signal ch 9-14 / 6-ch PWM
Compatible Platform D1200 / F1800 class platform

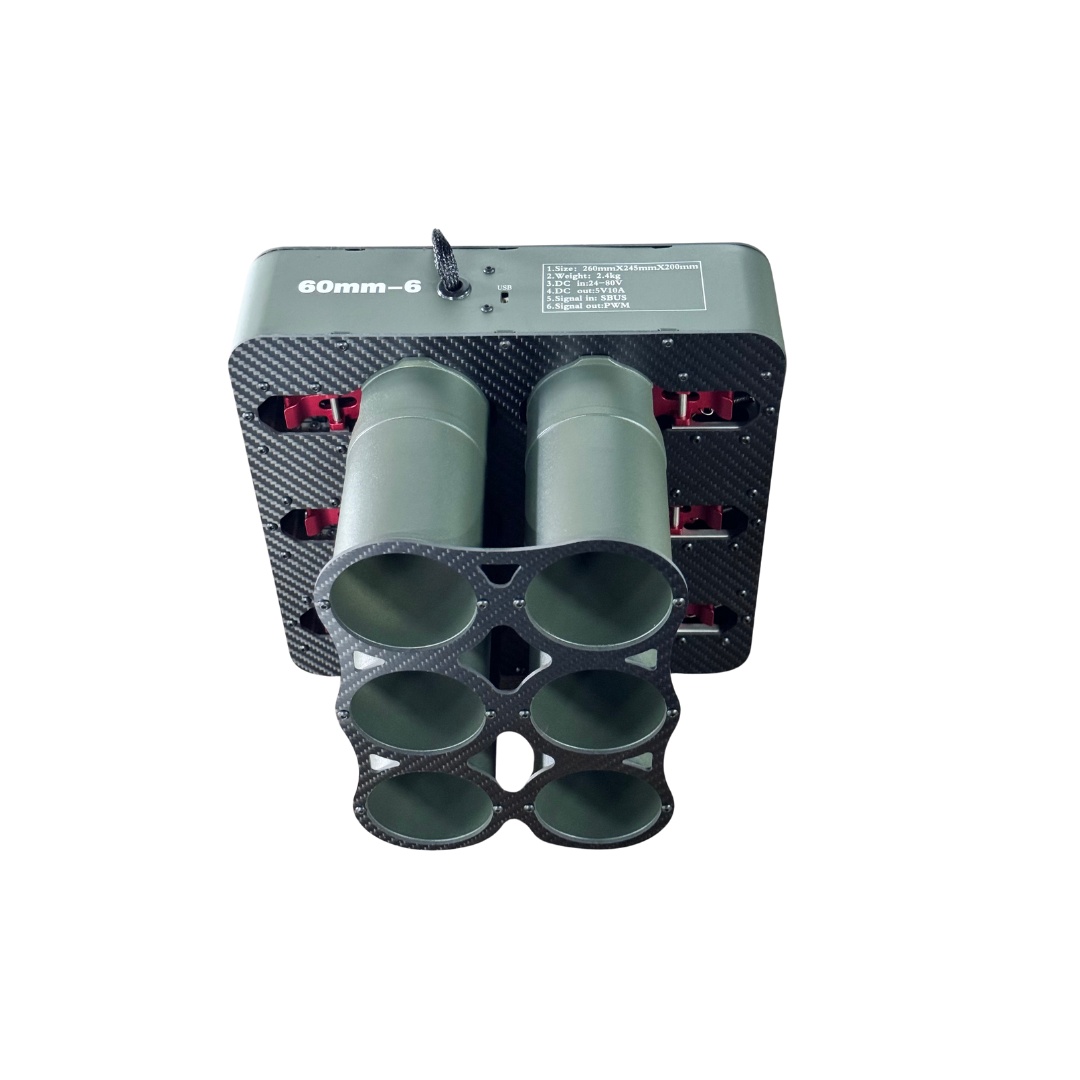

60mm-6
Dimensions 255x255x200 mm
Net Weight 2.4 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Bottom-up impact automatic lock
Release Method Automatic single or sequential/all release
Caliber Size Fits 60 mm caliber munition, single round 1.5 kg
Munition Capacity 6 rounds
Control Method SBUS signal ch 9-14 / 6-ch PWM
Compatible Platform D1200 / F1800 class platform
60mm-8
Dimensions 260x335x200 mm
Net Weight 3.0 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Bottom-up impact automatic lock
Release Method Automatic single or sequential/all release
Caliber Size Fits 60 mm caliber munition, single round 1.5 kg
Munition Capacity 8 rounds
Control Method SBUS signal ch 9-14 / 6-ch PWM
Compatible Platform D1200 / F1800 class platform

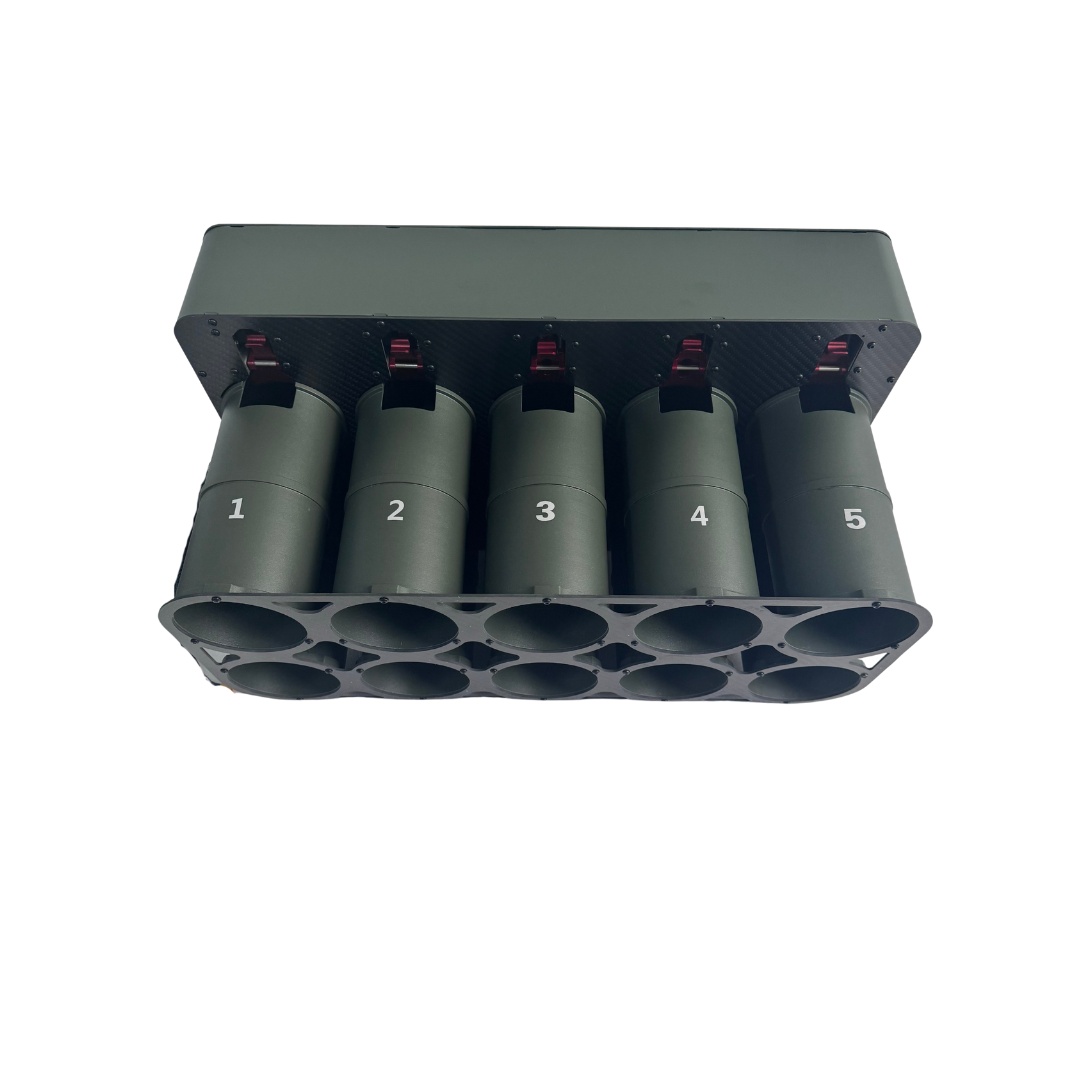

60mm-10
Dimensions 260x410x200 mm
Net Weight 3.7 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Bottom-up impact automatic lock
Release Method Automatic single or sequential/all release
Caliber Size Fits 60 mm caliber munition, single round 1.5 kg
Munition Capacity 10 rounds
Control Method SBUS signal ch 9-14 / 6-ch PWM
Compatible Platform D1200 / F1800 class platform
Product Gallery
Product Gallery
Engineering & Technology

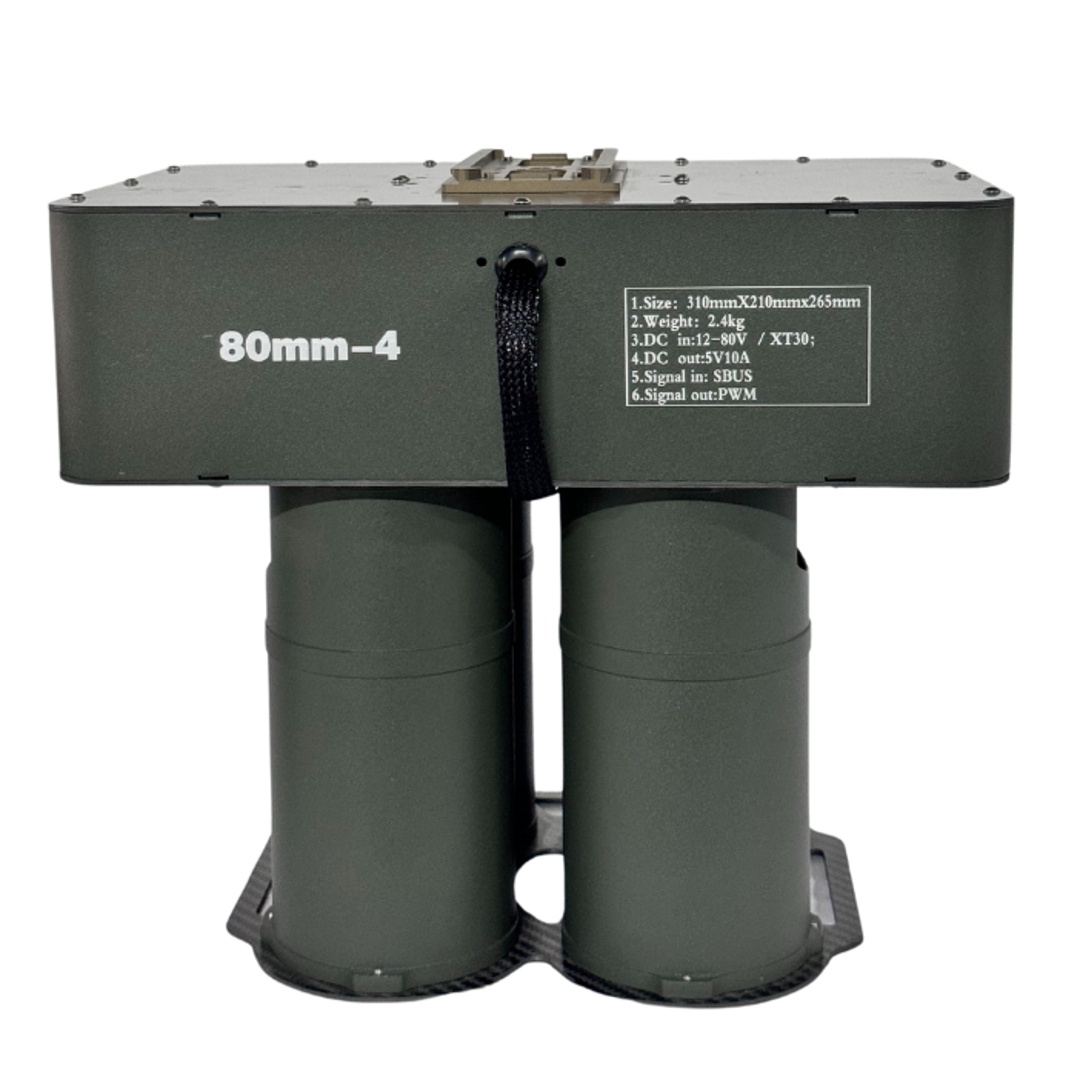

80 mm Caliber Tactical Vertical Munition Dropper
This series of vertical release tubes is customized for standard 80 mm caliber tactical munitions, achieving high-efficiency power control in fixed-wing mode.
80 mm Dropper Technical Specifications Table
80mm-2
Dimensions 305x130x265 mm
Net Weight 1.5 kg
Material Aviation aluminum, carbon fiber, stainless steel
Mounting Method Bottom-up impact automatic lock
Caliber Size Fits 80 mm caliber munition, single round 3.4 kg
Munition Capacity 2 rounds
Operating Voltage DC 12 - 80 V
Control Range Control Range: 5 - 10 km

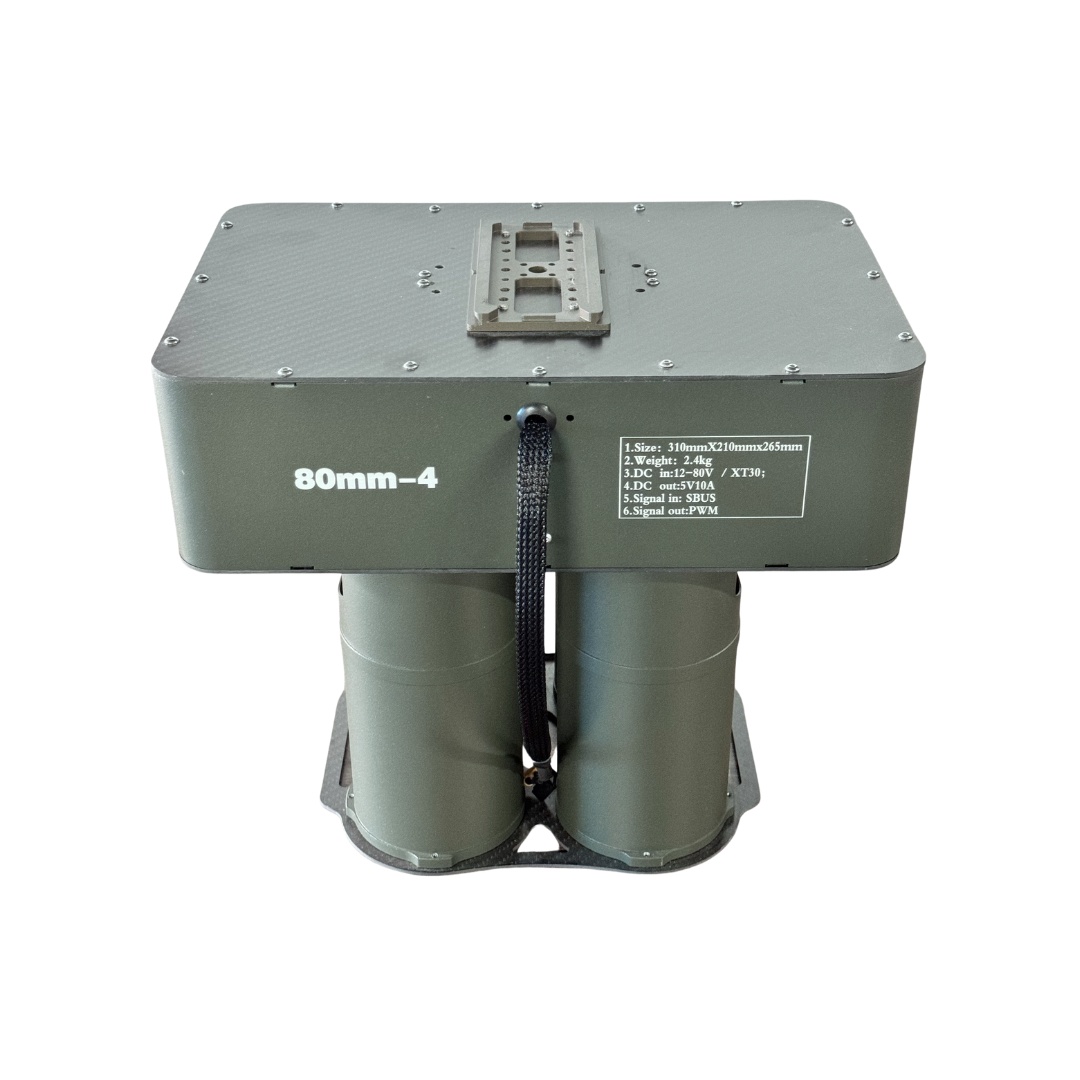

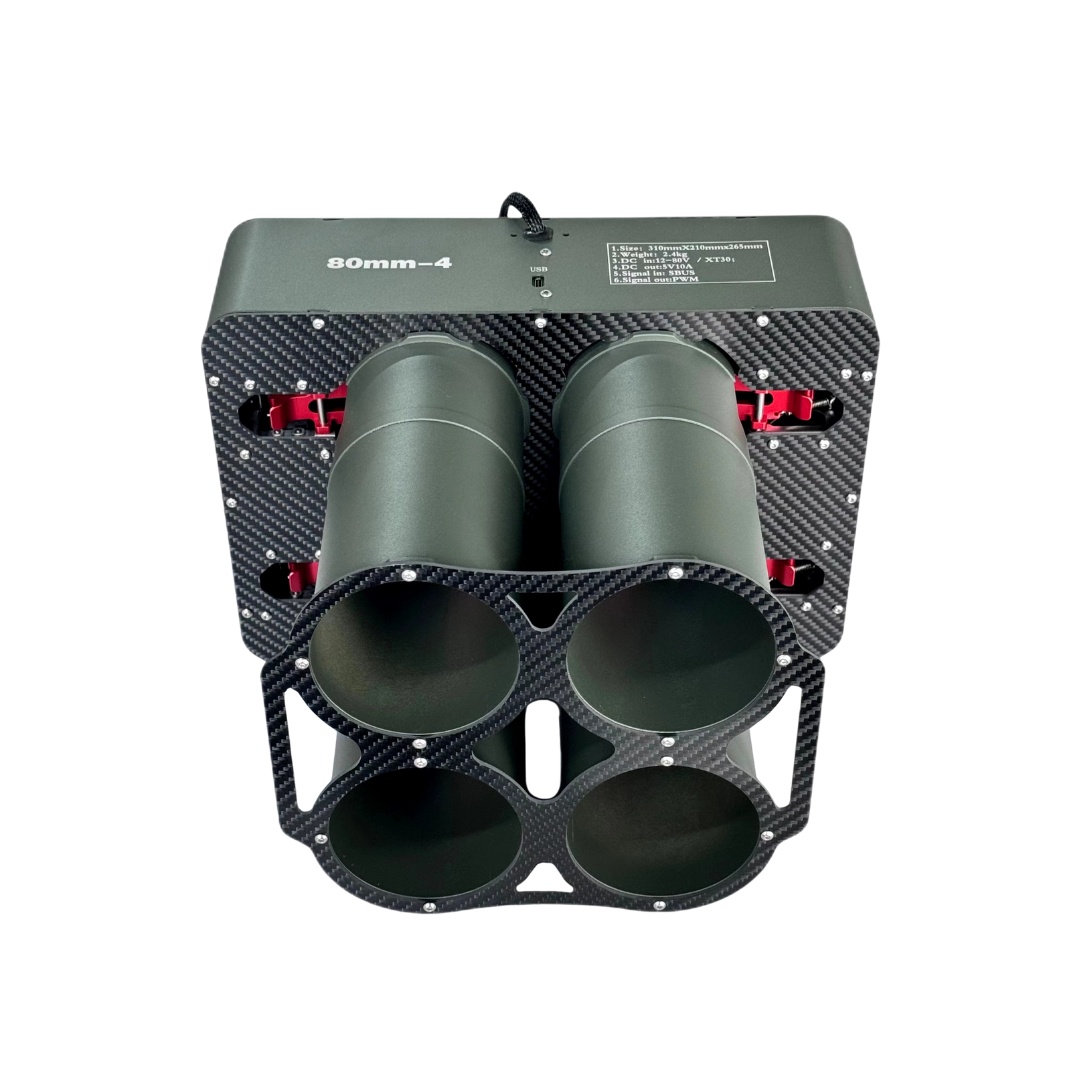

80mm-4
Dimensions 305x210x265 mm
Net Weight 2.5 kg
Material Aviation aluminum, carbon fiber, stainless steel
Mounting Method Bottom-up impact automatic lock
Caliber Size Fits 80 mm caliber munition, single round 3.4 kg
Munition Capacity 4 rounds
Operating Voltage DC 12 - 80 V
Control Range Control Range: 5 - 10 km
80mm-6
Dimensions 305x305x265 mm
Net Weight 3.5 kg
Material Aviation aluminum, carbon fiber, stainless steel
Mounting Method Bottom-up impact automatic lock
Caliber Size Fits 80 mm caliber munition, single round 3.4 kg
Munition Capacity 6 rounds
Operating Voltage DC 12 - 80 V
Control Range Control Range: 5 - 10 km
80mm-8
Dimensions 310x410x265 mm
Net Weight 4.8 kg
Material Aviation aluminum, carbon fiber, stainless steel
Mounting Method Bottom-up impact automatic lock
Caliber Size Fits 80 mm caliber munition, single round 3.4 kg
Munition Capacity 8 rounds
Operating Voltage DC 12 - 80 V
Control Range Control Range: 5 - 10 km
80mm-10
Dimensions 310x510x265 mm
Net Weight 6.0 kg
Material Aviation aluminum, carbon fiber, stainless steel
Mounting Method Bottom-up impact automatic lock
Caliber Size Fits 80 mm caliber munition, single round 3.4 kg
Munition Capacity 10 rounds
Operating Voltage DC 12 - 80 V
Control Range Control Range: 5 - 10 km
Product Gallery
Product Gallery
Engineering & Technology

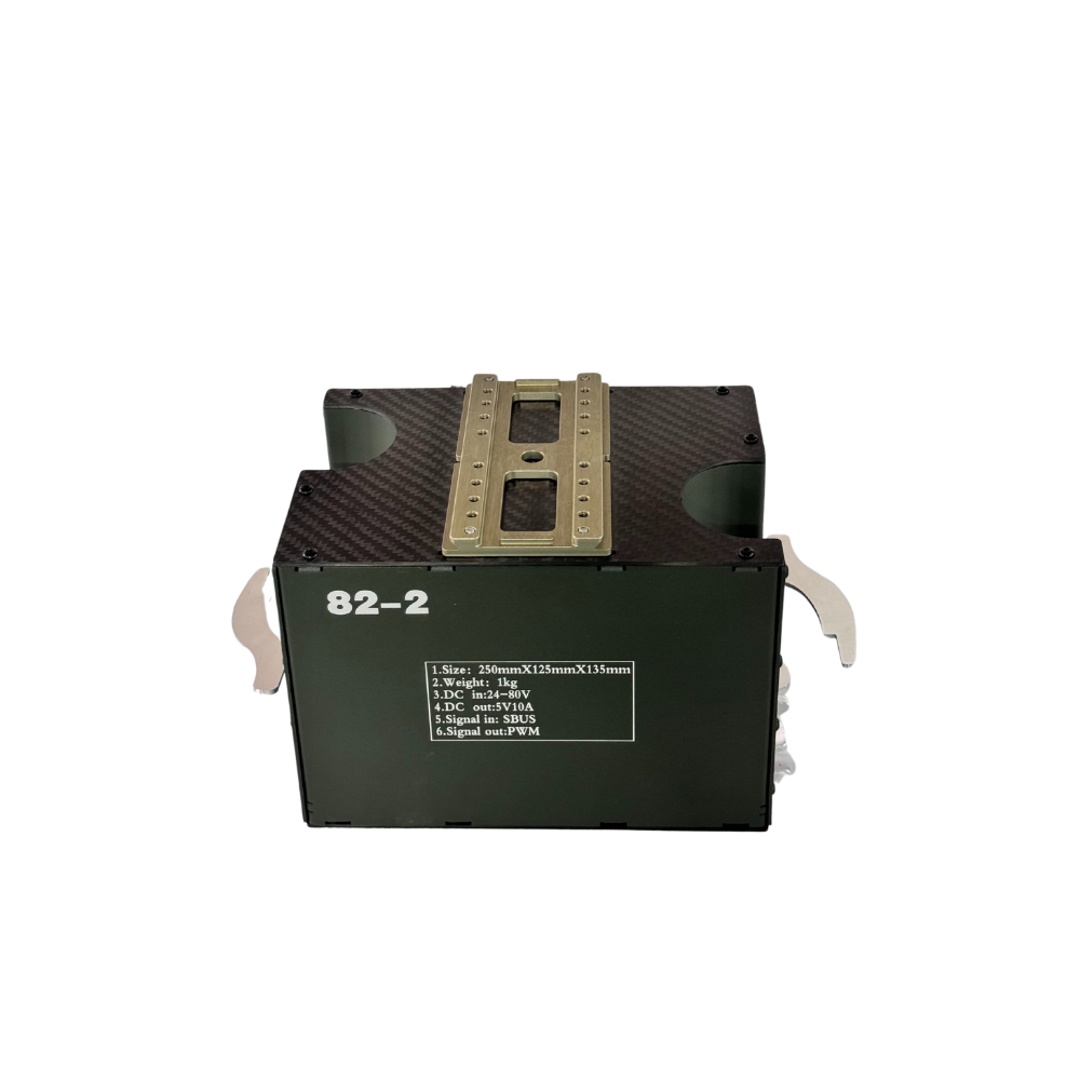

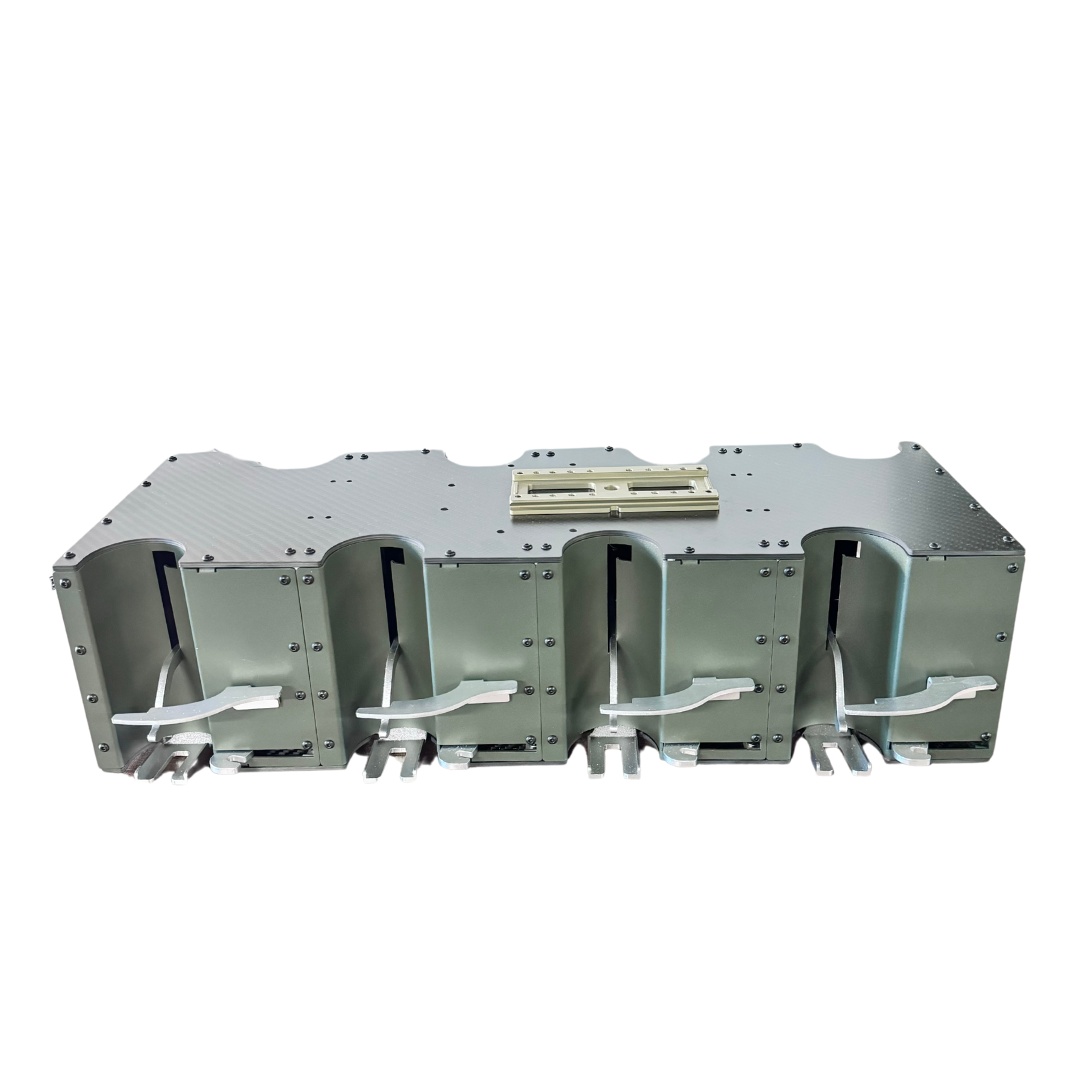

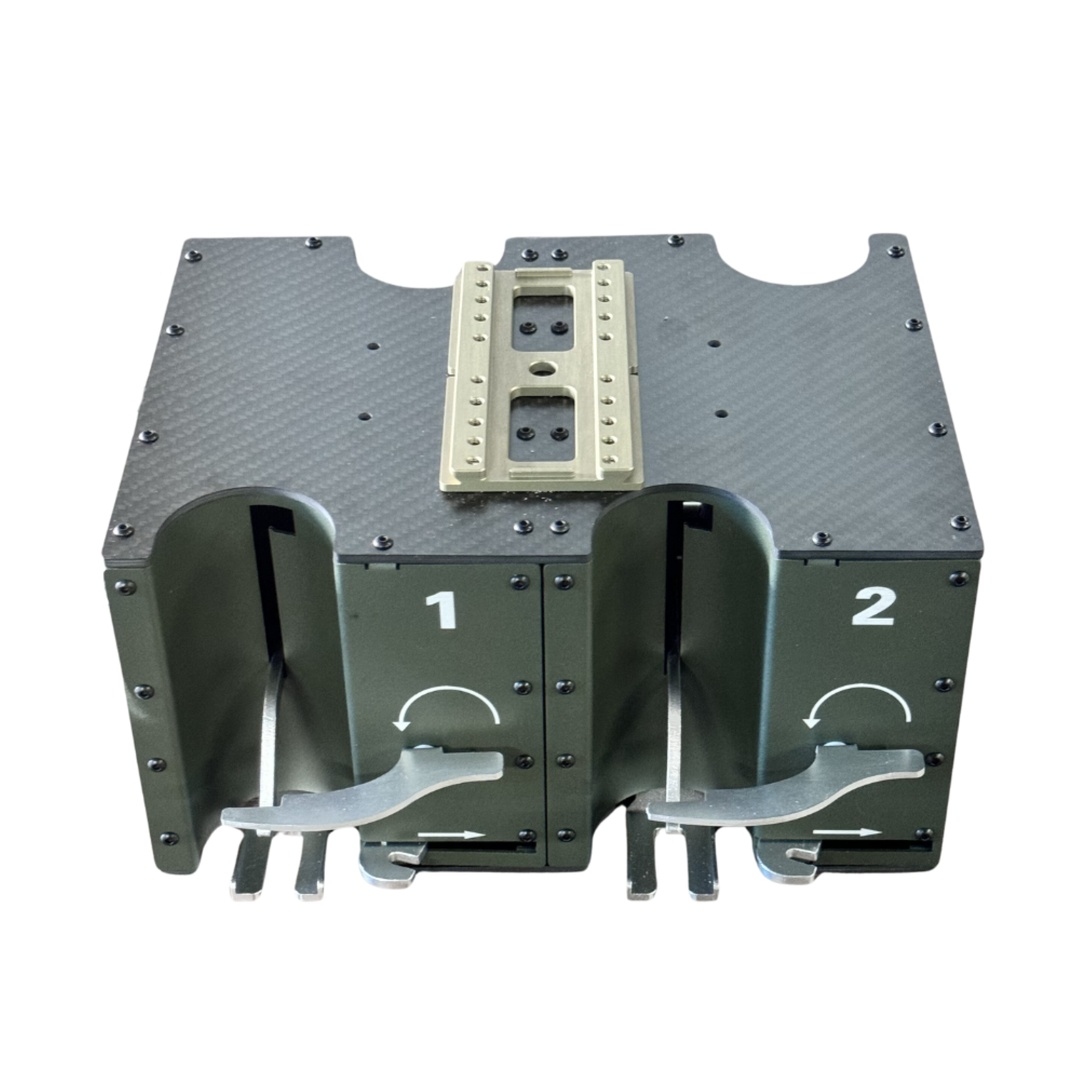

82-2 mm Tactical Grenade Multi-stage Dropper
This system is designed for 82-2 tactical grenades (single round weight 400 g), with a built-in unique pneumatic safety anti-loose pull-ring release linkage mechanism, achieving precise, high-instantaneous air defense/ground clearance.
Core Technical Specifications Table

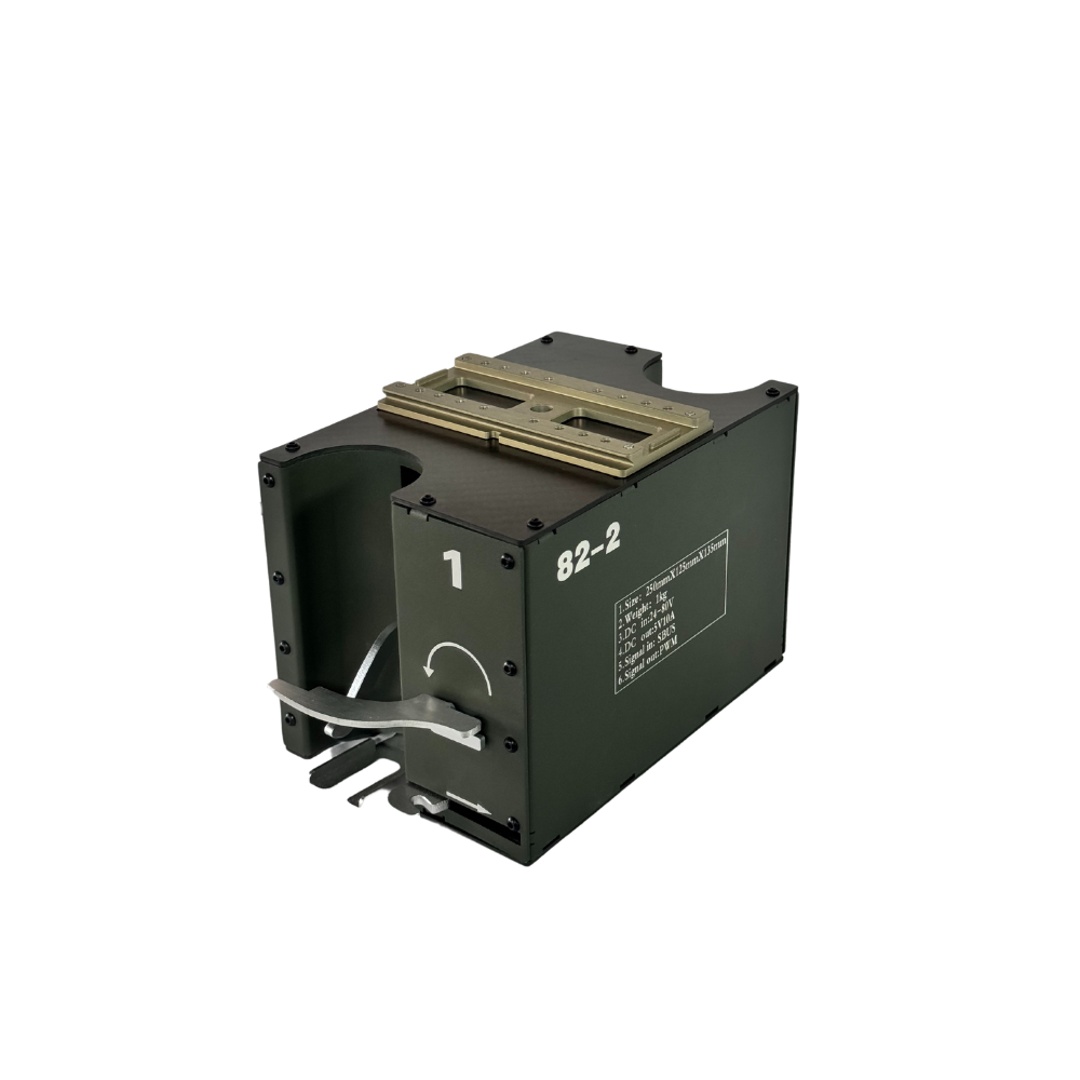

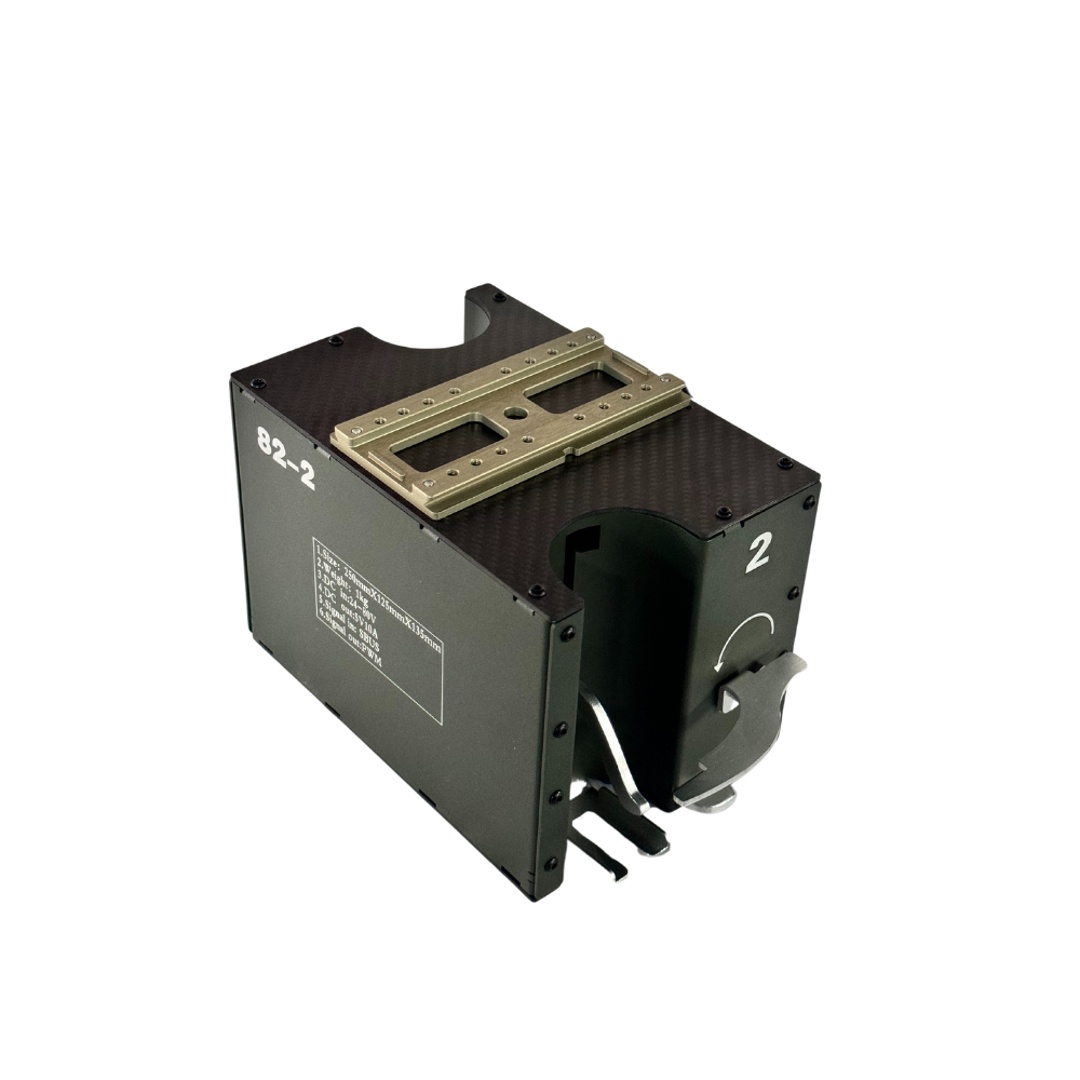

82-2
Caliber Specification Fits 82-2, single round weight 400 g
Controller Size 250 x 125 x 135 mm
Controller Net Weight 1.0 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Manual collar installation
Release Mode Automatic single or sequential/all release
Munition Capacity 2 rounds
Signal Type SBUS signal input; PWM output
Manual Control Equipped with manual control release
Safety Fuse Equipped with safety pull-ring
82-4
Caliber Specification Fits 82-2, single round weight 400 g
Controller Size 250 x 250 x 135 mm
Controller Net Weight 1.5 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Manual collar installation
Release Mode Automatic single or sequential/all release
Munition Capacity 4 rounds
Signal Type SBUS signal input; PWM output
Manual Control Equipped with manual control release
Safety Fuse Equipped with safety pull-ring

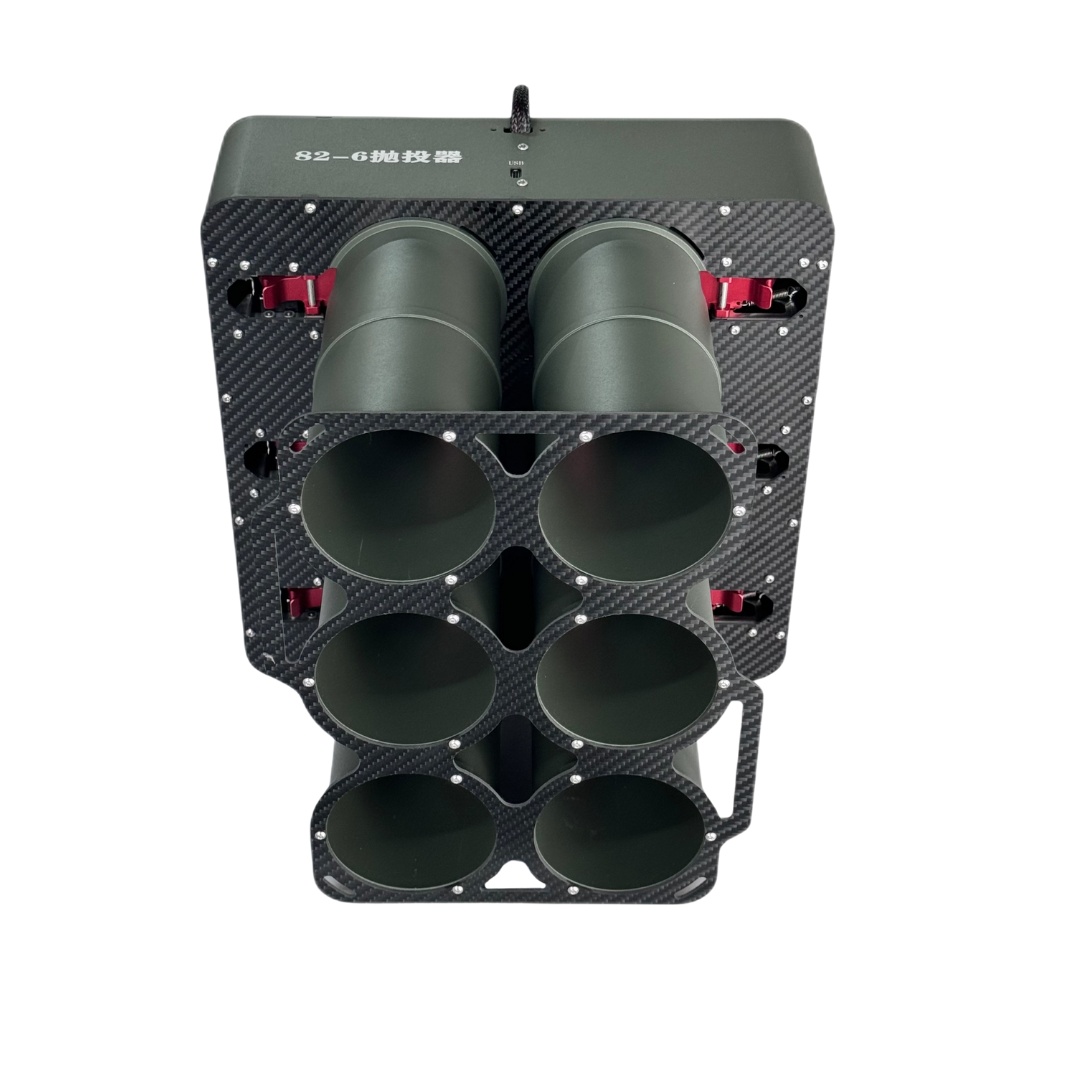

82-6
Caliber Specification Fits 82-2, single round weight 400 g
Controller Size 375 x 250 x 135 mm
Controller Net Weight 2.5 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Manual collar installation
Release Mode Automatic single or sequential/all release
Munition Capacity 6 rounds
Signal Type SBUS signal input; PWM output
Manual Control Equipped with manual control release
Safety Fuse Equipped with safety pull-ring
82-8
Caliber Specification Fits 82-2, single round weight 400 g
Controller Size 500 x 250 x 135 mm
Controller Net Weight 3.2 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Manual collar installation
Release Mode Automatic single or sequential/all release
Munition Capacity 8 rounds
Signal Type SBUS signal input; PWM output
Manual Control Equipped with manual control release
Safety Fuse Equipped with safety pull-ring
82-10
Caliber Specification Fits 82-2, single round weight 400 g
Controller Size 625 x 250 x 135 mm
Controller Net Weight 3.8 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Manual collar installation
Release Mode Automatic single or sequential/all release
Munition Capacity 10 rounds
Signal Type SBUS signal input; PWM output
Manual Control Equipped with manual control release
Safety Fuse Equipped with safety pull-ring
Product Gallery
Product Gallery
Engineering & Technology

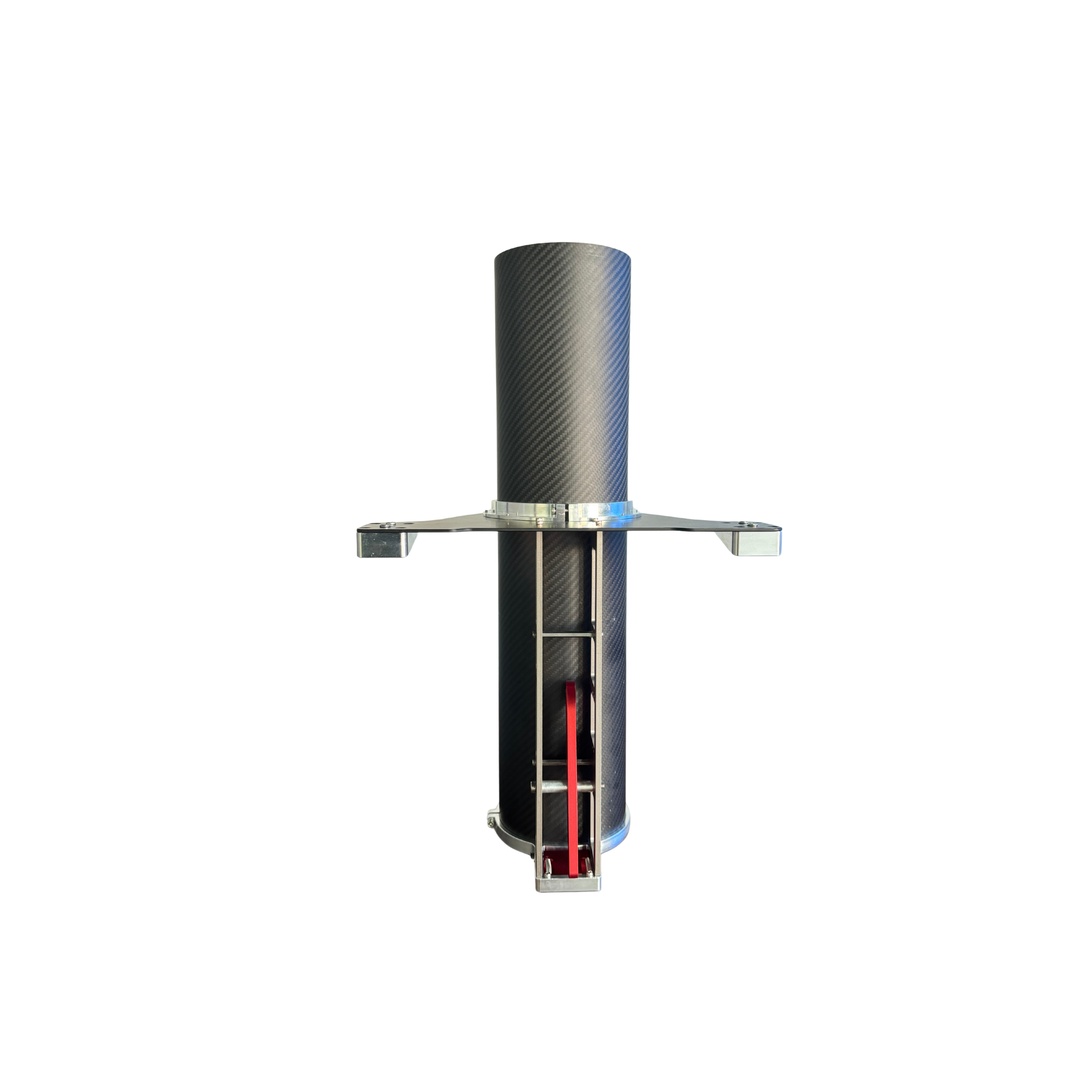

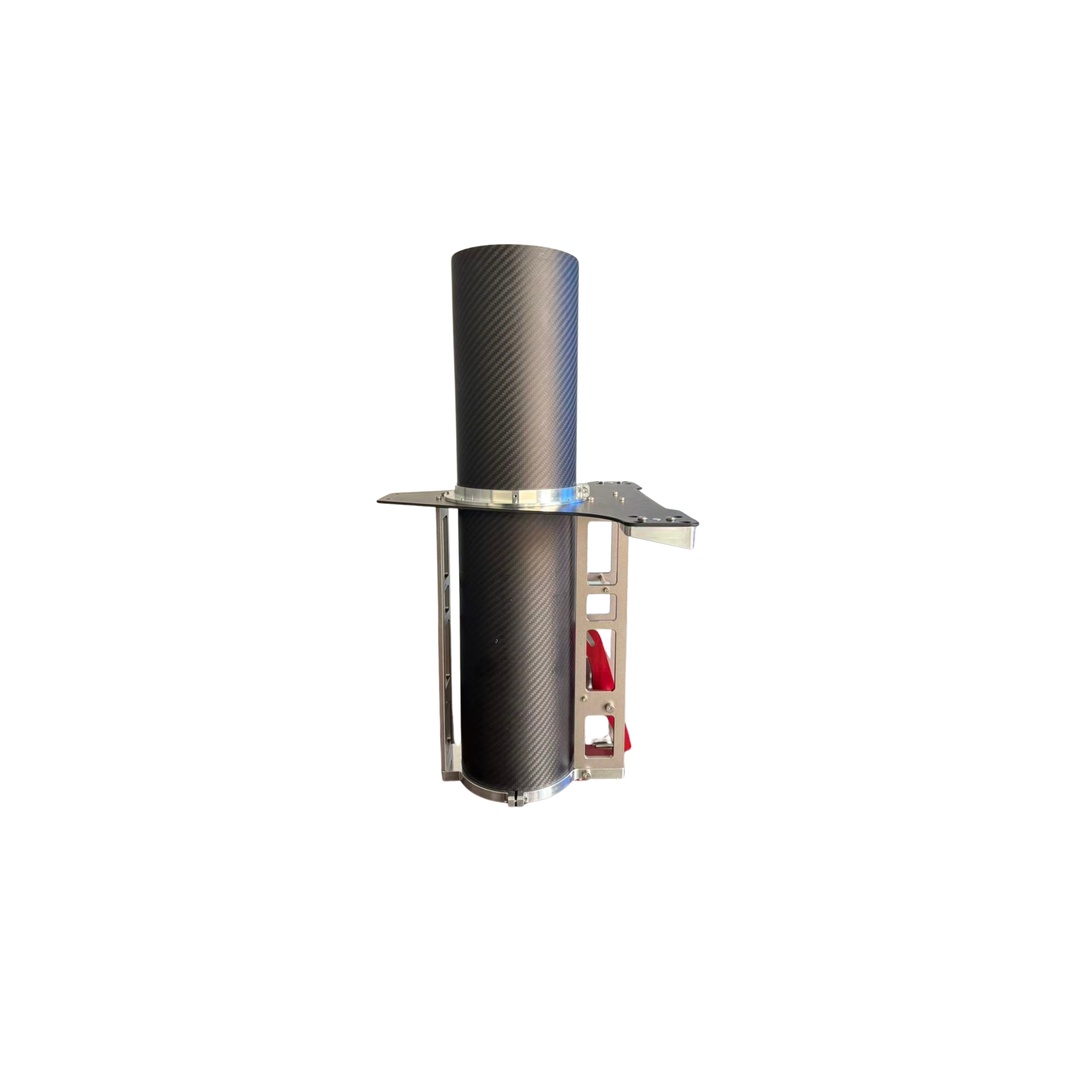

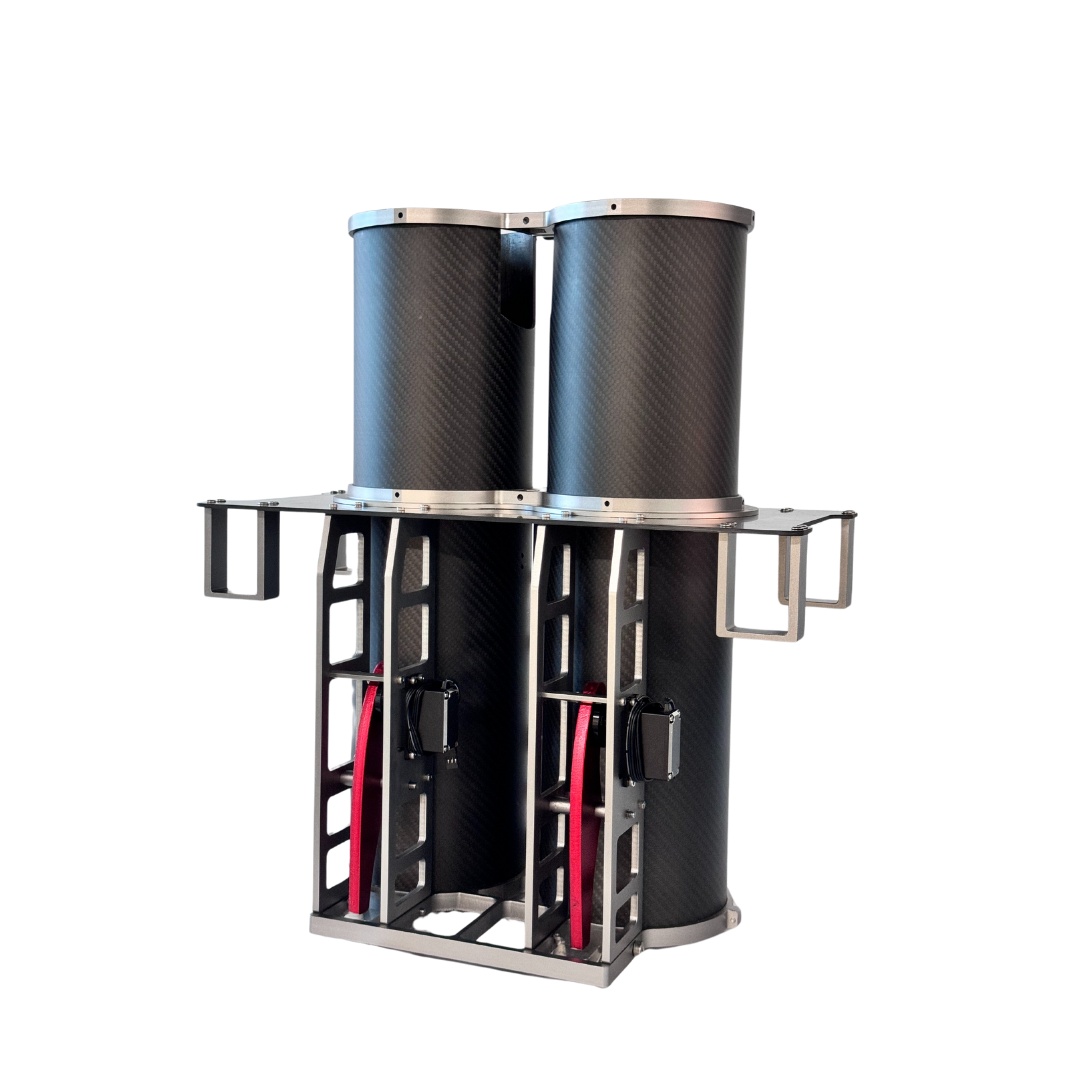

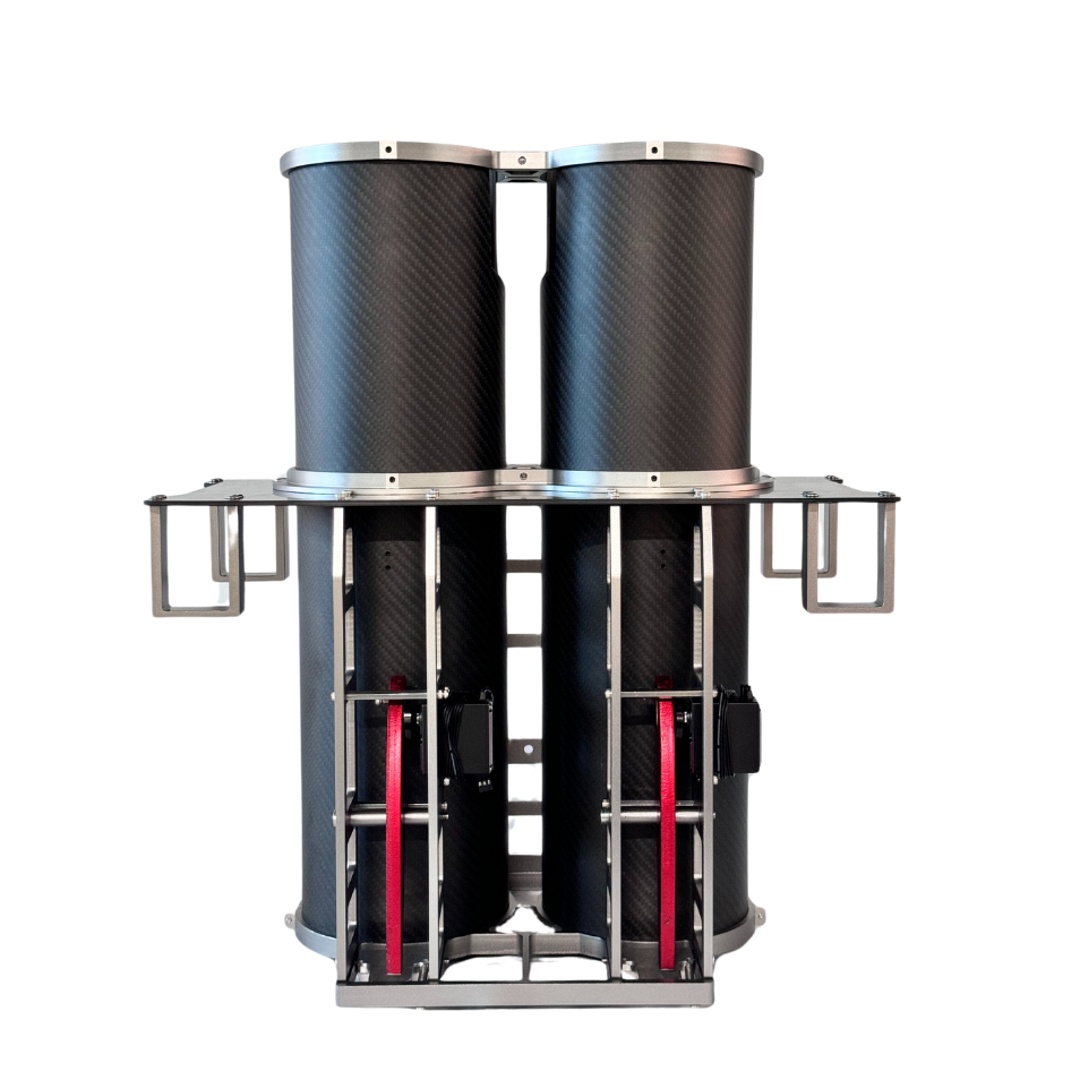

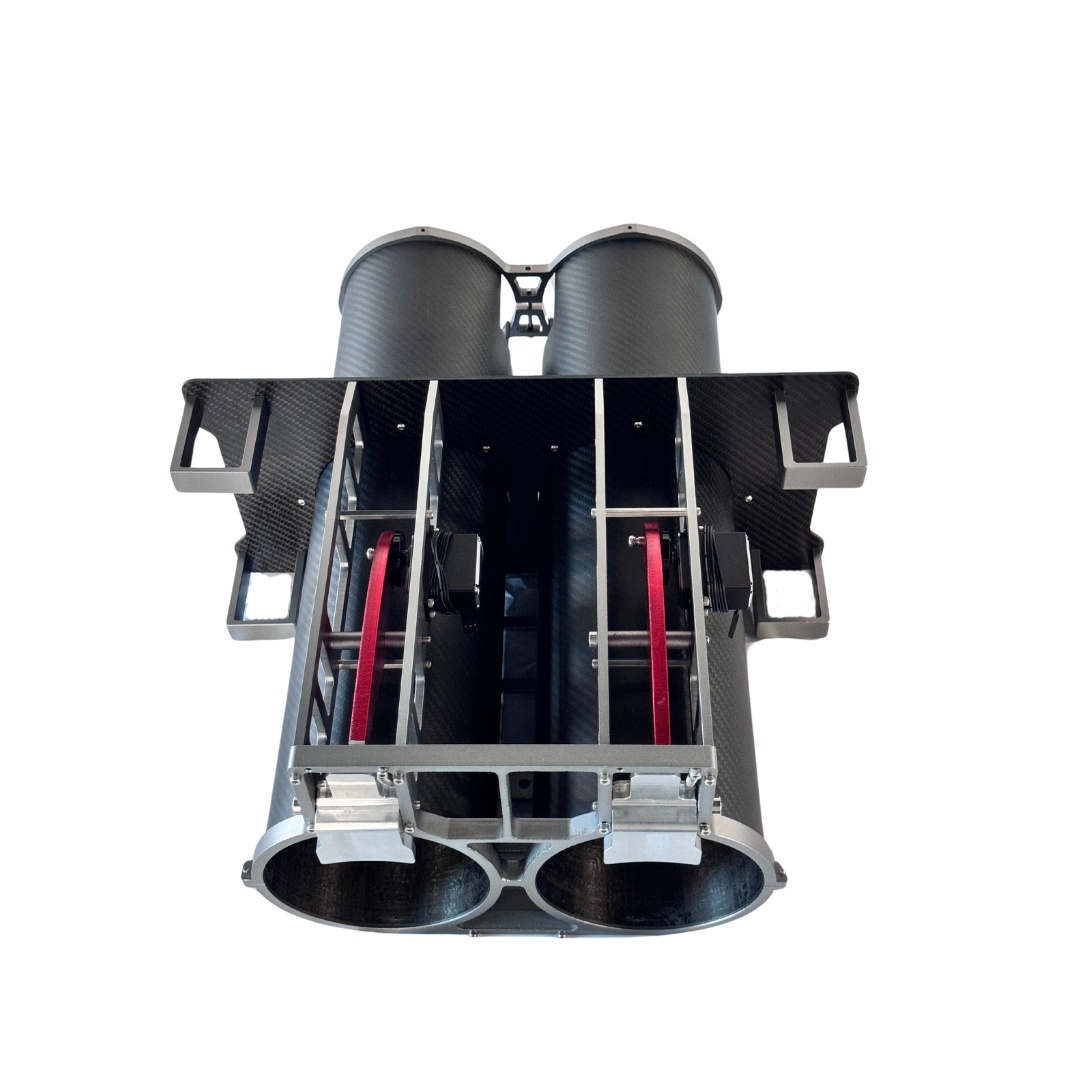

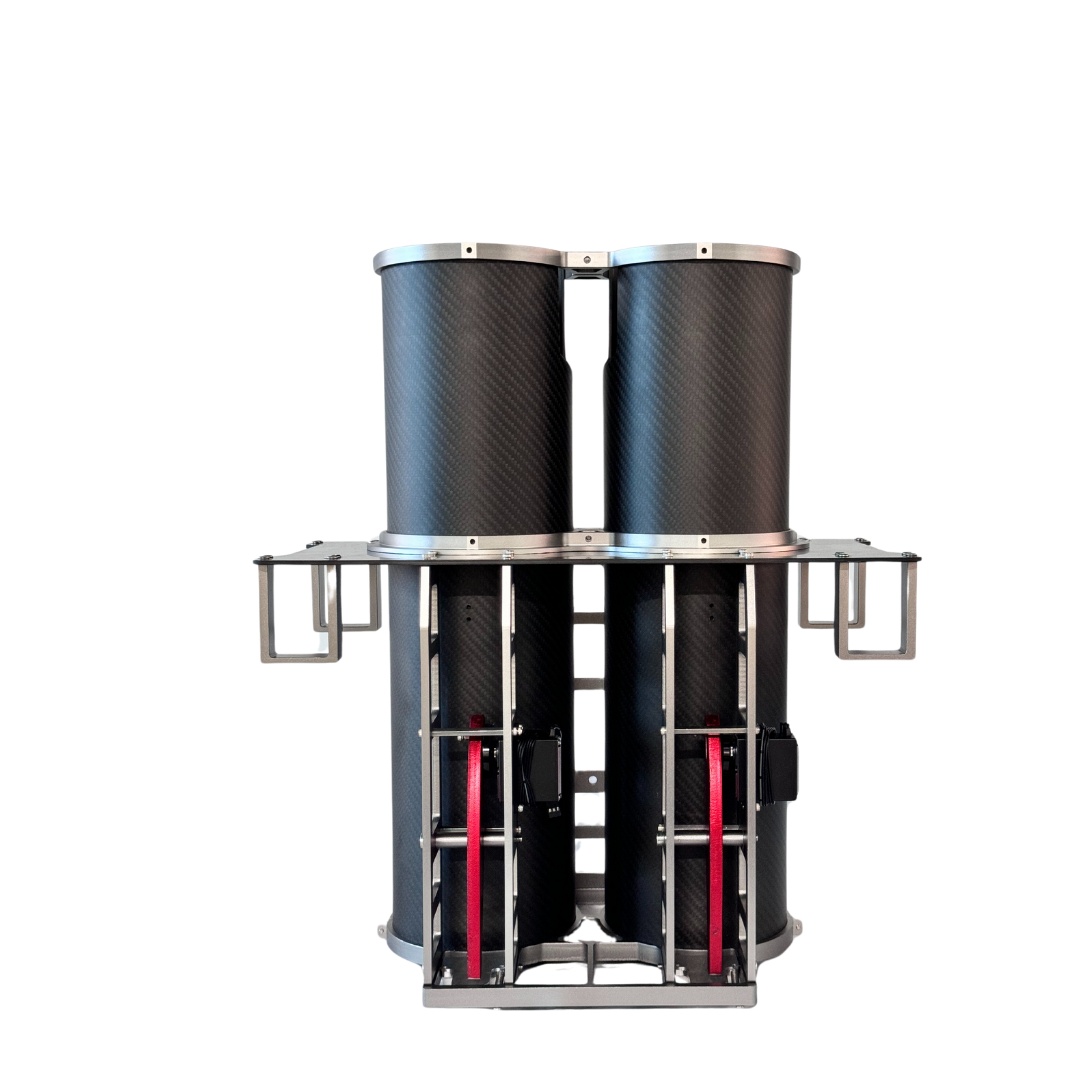

120 mm Heavy Double-linked Munition Dropper
The large-charge heavy dropper tube is optimized for 120 mm heavy delivery bays, using a large-ratio electromagnetic claw and dual-channel independent safety fuses to ensure absolute safe release under large-tonnage loads.
Core Technical Specifications Table
Aero-Dropper 120 mm Heavy Double-Linked
Dimensions 415 x 200 x 480 mm
Net Weight 4.6 kg
Material Aviation aluminum, carbon fiber, 304 stainless steel
Mounting Method Manual collar installation
Release Mode Automatic single or all release
Release Control Any channel controls the safety fuse, the other channel independently controls dropping
Munition Capacity 2 rounds (heavy large-capacity bay)
Power Supply Mode Direct power supply from airborne electrodes
Operating Voltage DC 12 - 80 V adaptive wide voltage
Signal Type SBUS signal input; PWM signal output
Control Range 5 - 10 km
Manual Control Equipped with manual control release
Safety Fuse Equipped with safety pull-ring
