1. Detailed Technical Specifications
Physical Configurations
Weight & Battery
Flight Performance
Control & Guidance
Launch & Recovery
2. Product Overview
Aero · SENTRY 30 is a next-generation C-UAS VTOL loitering munition system designed for high-speed flight, long sentinel watch, and precise payload delivery.
As the flagship model of the loitering series, the ‘SENTRY 30’ is built from high-modulus advanced composites, supporting a 15 kg MTOW. It features a unique 2,600 mm swept-back delta wing layout, cutting aerodynamic drag during dives and high-G maneuvers while securing precise tracking. Driven by 2 parallel 30,000 mAh batteries, it carries a 3.5 kg kinetic payload and active proximity sensors. Reaching flat dive speeds over 120 km/h, it delivers rapid, secure defense capabilities within an 80 km operational radius.
3. Delta Wing & VTOL Propulsion System
VTOL convenience and missile-like cruise aerodynamics are matched in the Aero-Sentry 30.
Delta Wing Configuration
The 2,600 mm delta wing maximizes speed energy during cruise. The wing-body integration survives high-G maneuvering loads, securing route precision. VTOL lift is supplied by brushless folding props, transitioning drive to the rear pusher motor.
150-Min Sentry Cruise
Accommodates 2 parallel 30,000 mAh batteries, keeping the loitering munition cruising on sentinel watch for 150 minutes (2.5 hours) with 1.5 kg ballast, covering multiple target entry windows.
4. Intelligent 50 MP Seeker & 30 km HD Video Link
Features military-specification autopilot and sensor cores for precision target tracking.
30 km Telemetry Link
High-power RF module transmits 1080p zero-latency video and telemetry up to 30 km, tracking altitude, speed, and voltage.
50 MP Quad Seeker
Stabilized seeker features a 50 MP optical lens and infrared sensor, tracking and locking target structures in all weather.
Laser Proximity Fuse
Four micro laser sensors encircle the seeker. When close to the target, the fuse calculates the optimal detonation time for kinetic destruction.

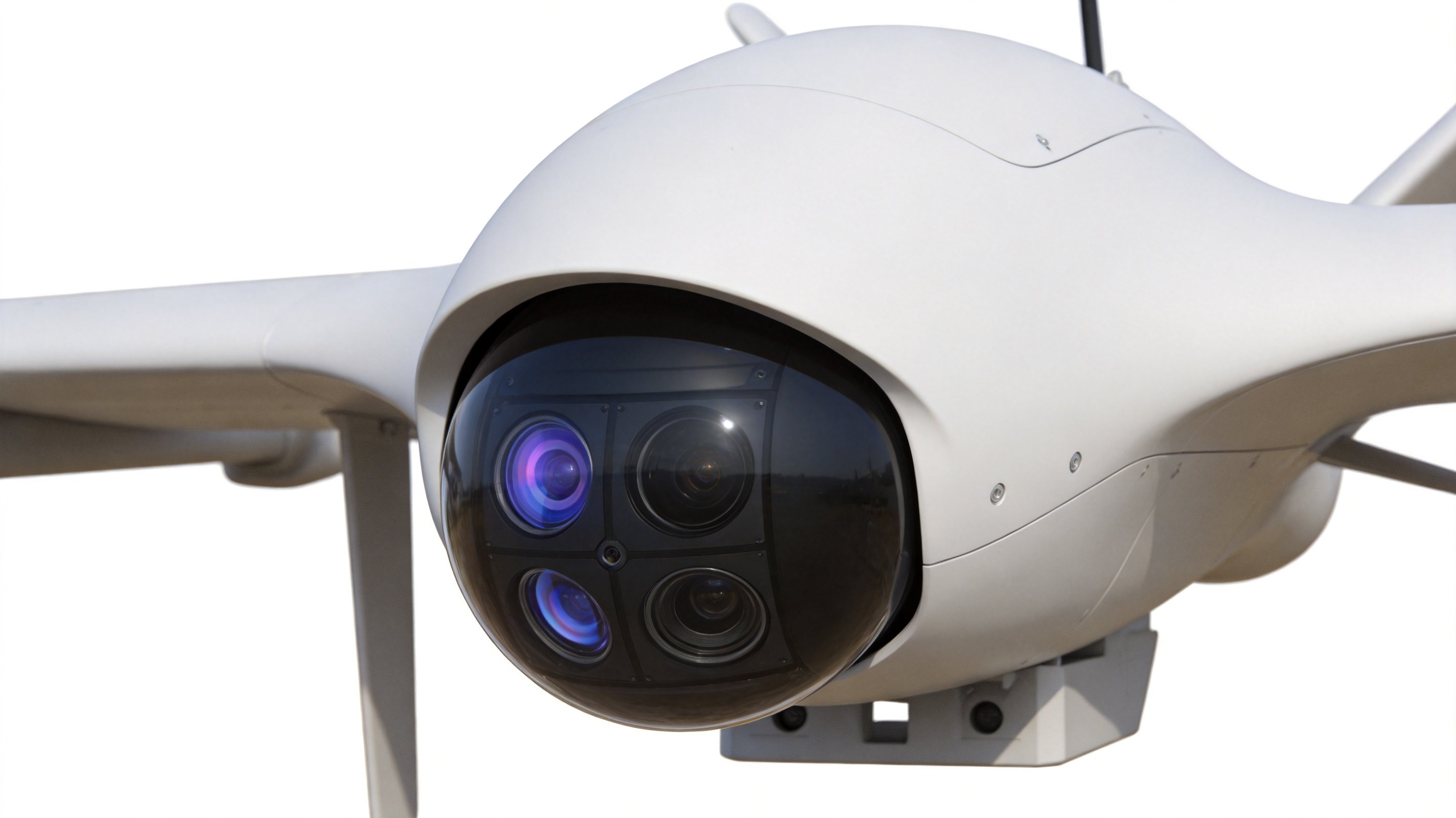

OPTICAL GIMBAL SEEKER
5. 200 mm Payload Compartment & Field Assembly
Sized for individual carry, the system streamlines ground assembly for quick reaction launches.
Rapid Assembly SOP
- 200 mm Task Compartment: Features a 200 x 200 x 120 mm payload space to seat 3.5 kg warheads or swap to mapping optical units.
- 5-Minute Setup: Lift arms, twin tailbooms, and the 2.6 m main wings utilize center carbon spars and quick-lock pins, allowing boot-up in 5 minutes.
- Electrical & Static Check: Secure the 30,000 mAh battery connections and verify the pitot tube is clear to prevent speed sensor drift during high-speed flight.
