Technical Specifications
This system consists of three highly integrated air-based police riot control and tactical strike payload components, perfectly matching Aero F1200 / F1800 heavy-load multi-rotor platforms.
1. QBZ Automatic Weapon Controller
2. 38 mm 9-Round Smoke/Tear Gas Launcher
3. Air-based High-Pressure Pneumatic Net Launcher
Product Overview & Modular Ecology
Aero-Tactical Automatic Weapon Station is a new generation modular air-based police counter-terrorism and tactical weapon system, specifically developed for ground firepower suppression at high-risk violent terrorism sites, rapid dispersal of sudden riots with tear gas, and aerial physical soft-capture of illegal rogue UAVs.
The system consists of three core modules: the QBZ automatic rifle weapon station, the 38 mm 9-round tear gas launcher, and the air-based pneumatic net gun. The entire series is built with high-rigidity anodized aviation aluminum alloy and high-toughness stainless steel, configured with standard 4-point quick-mount rails. It integrates perfectly with F1200 / F1800 heavy-load multi-rotor platforms, enabling seamless hot-swap replacement of mission payloads within 30 seconds. This series perfectly achieves “remote precision fire assault” and “high-viscosity riot dispersal” in low-altitude airspace, providing SWAT, counter-terrorism, and border defense forces with an absolutely safe “zero-contact non-lethal counter-terrorism intervention channel.”
QBZ Weapon Station & Recoil Absorption
QBZ Weapon Station & Recoil Absorption

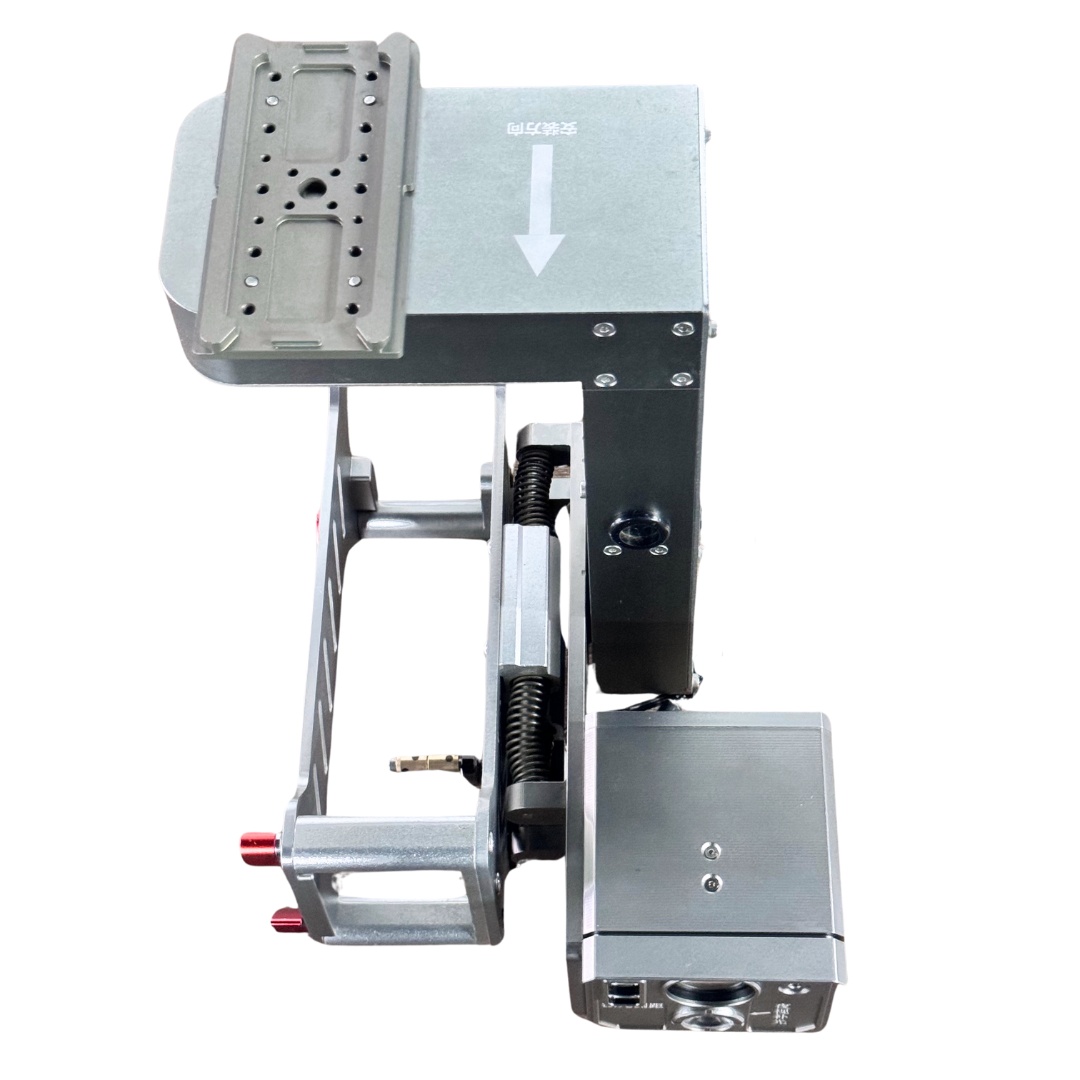

The physical bottleneck of multi-rotor UAV firing lies in overcoming the instant severe recoil force. Aero-Tactical adopts a design of “dual-stage shock-absorbing springs + tracking gyro”.

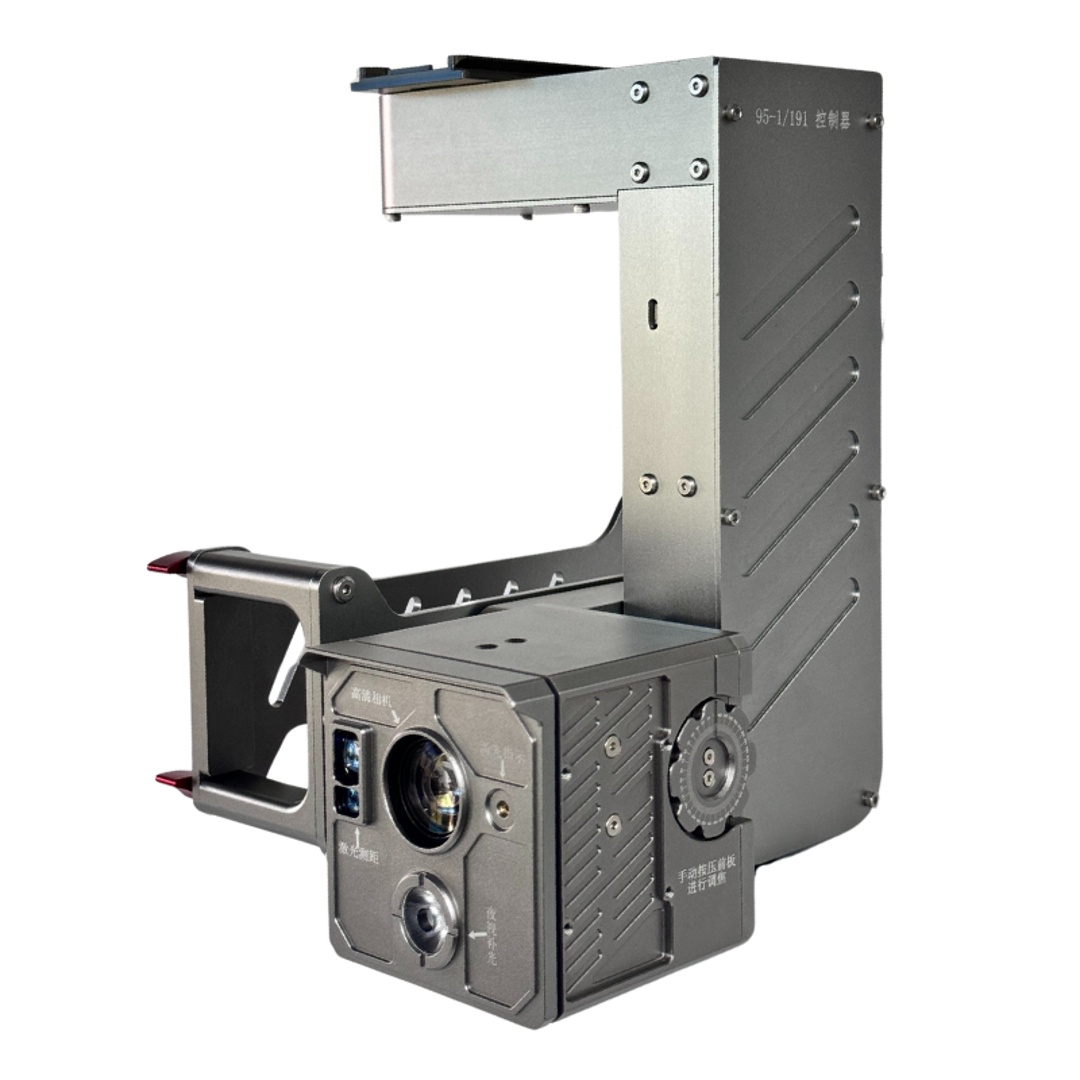

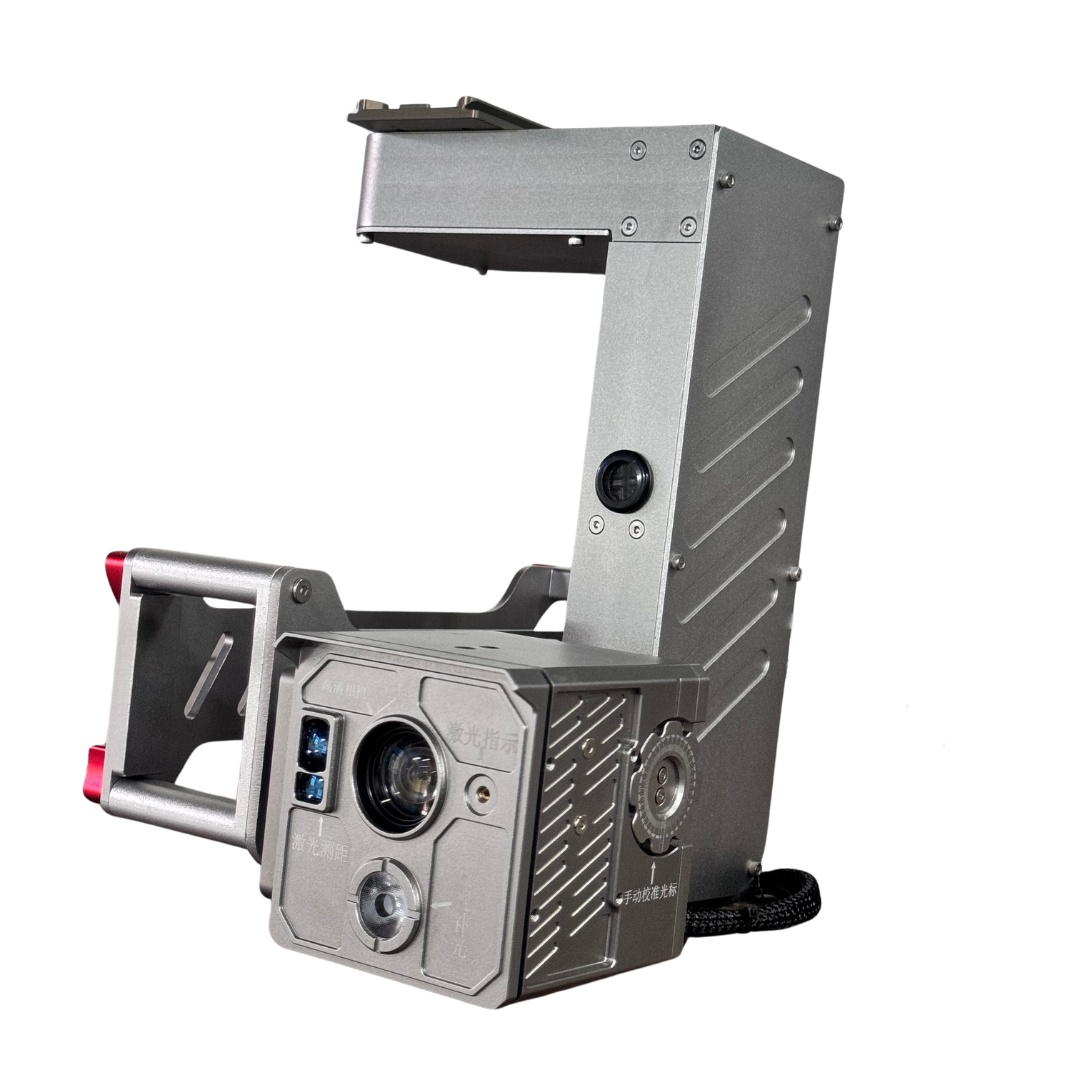

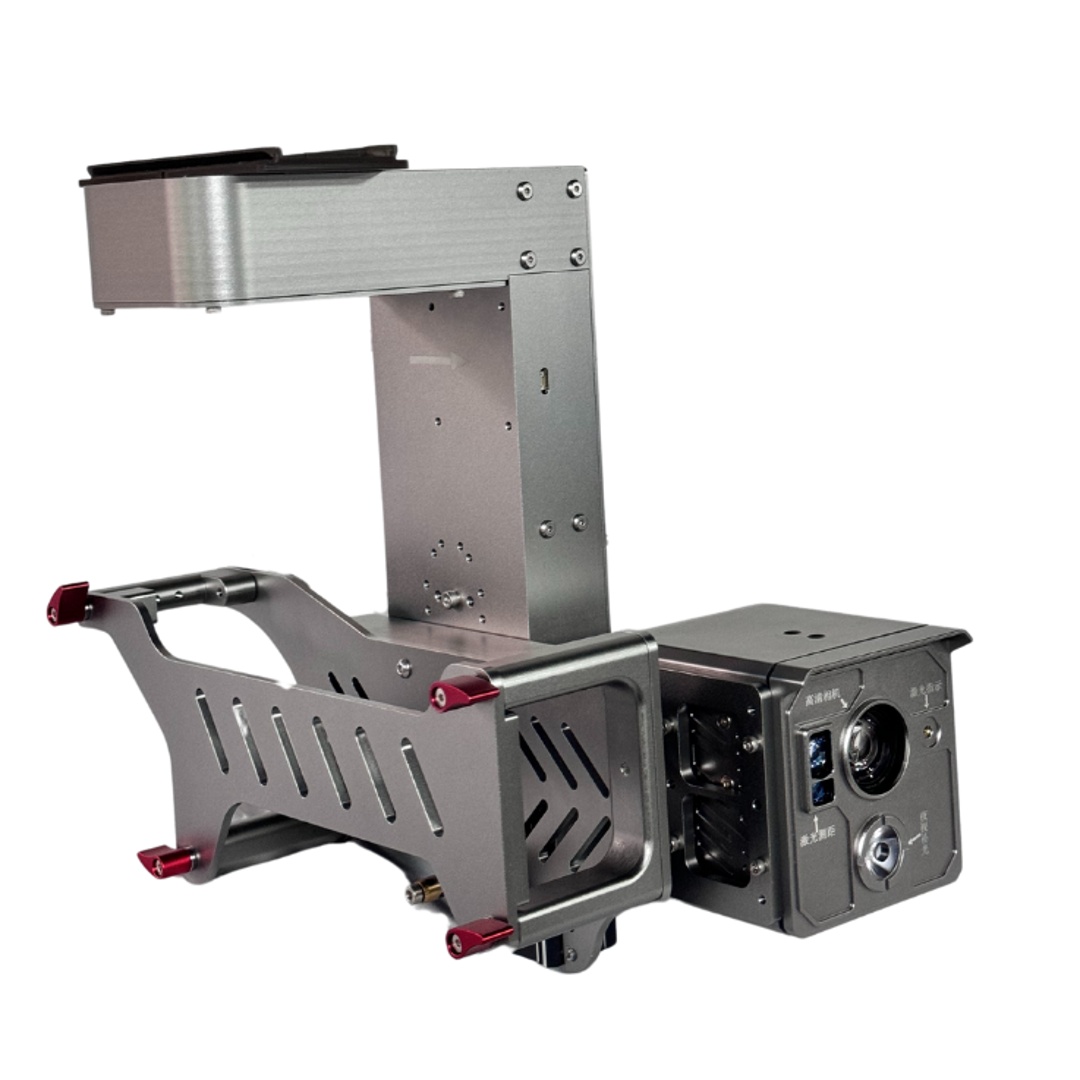

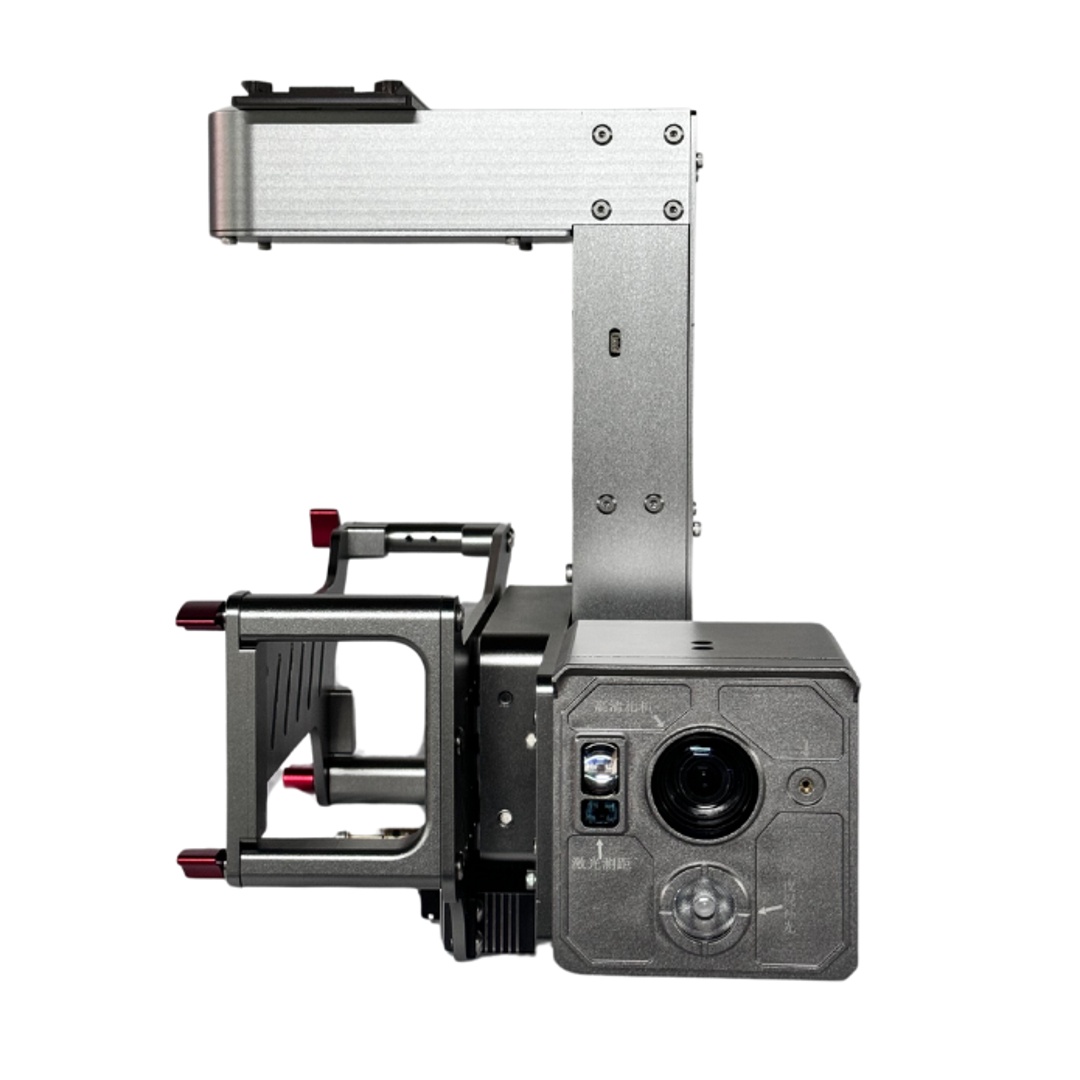

- QBZ series tactical automatic weapon station: Dry weight 3.4 kg, customized specifically for mounting 95-1/191/192/AK rifle families. Adopts electronic signal excitation for continuous rotating automatic firing pin, supporting single-shot and high-speed bursts.
- Dual buffer compression spring damping system: The weapon station integrates a dual-stage high-elasticity steel recoil-absorbing high-damping compression spring structure internally. During firing, it instantly absorbs and attenuates over 95 % of the instantaneous recoil stress, preventing UAV pitch oscillations and guaranteeing high shooting accuracy.

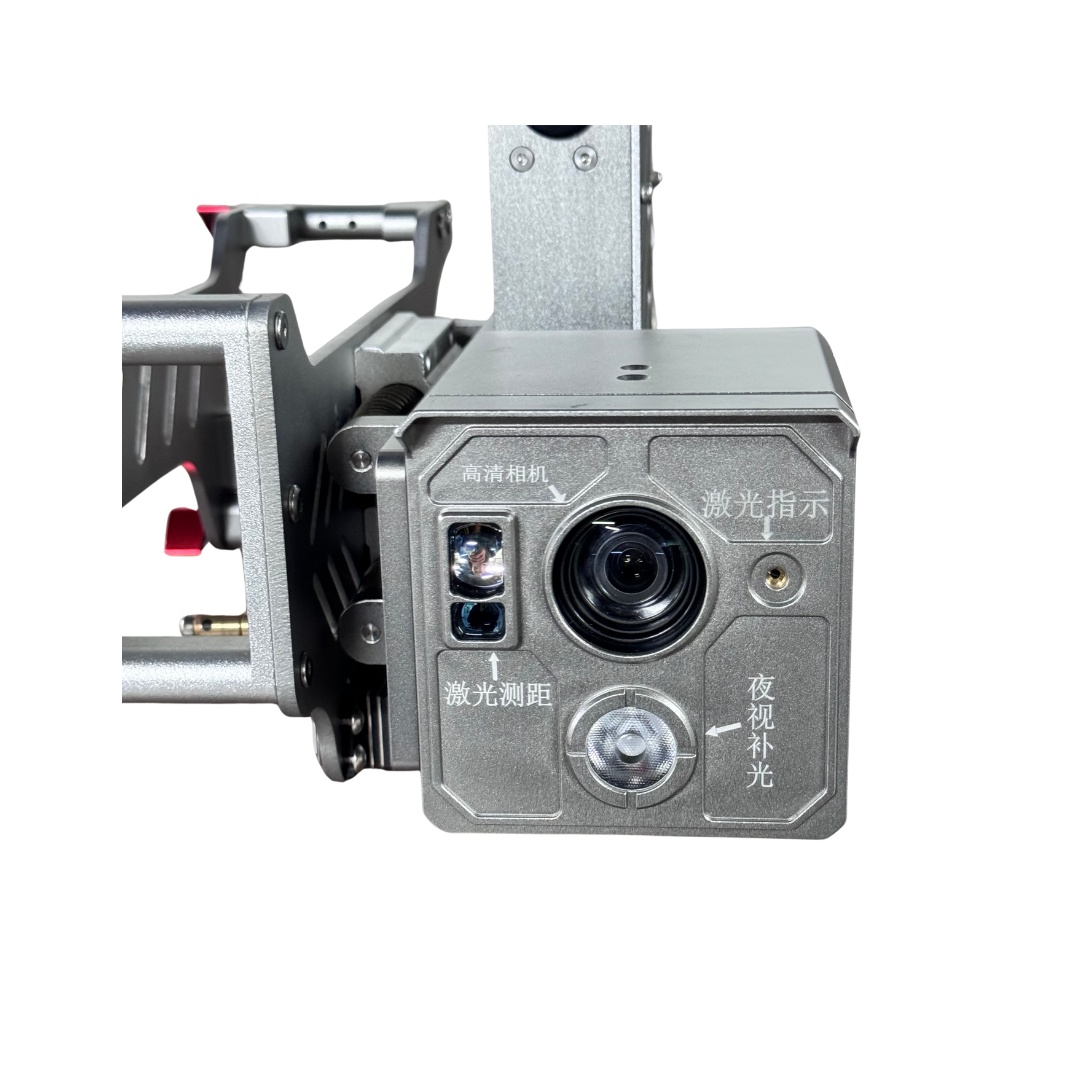

- 10x zoom human/vehicle automatic identification: The weapon station features a 360° dual-axis high-torque servo, integrating a 10x optical zoom targeting sight (supporting automatic human and vehicle detection). Front-mounted with a 500 m high-power green-dot laser and 500 m infrared fill light, coupled with a 1,000 m rangefinder, providing all-weather precise targeting.
Smoke Launcher & Capture Net
Smoke Launcher & Capture Net
To cope with low-altitude tactical clearance and soft countermeasure defense, the system provides a combination scheme of “multi-round smoke coverage and physical strong net capture”.

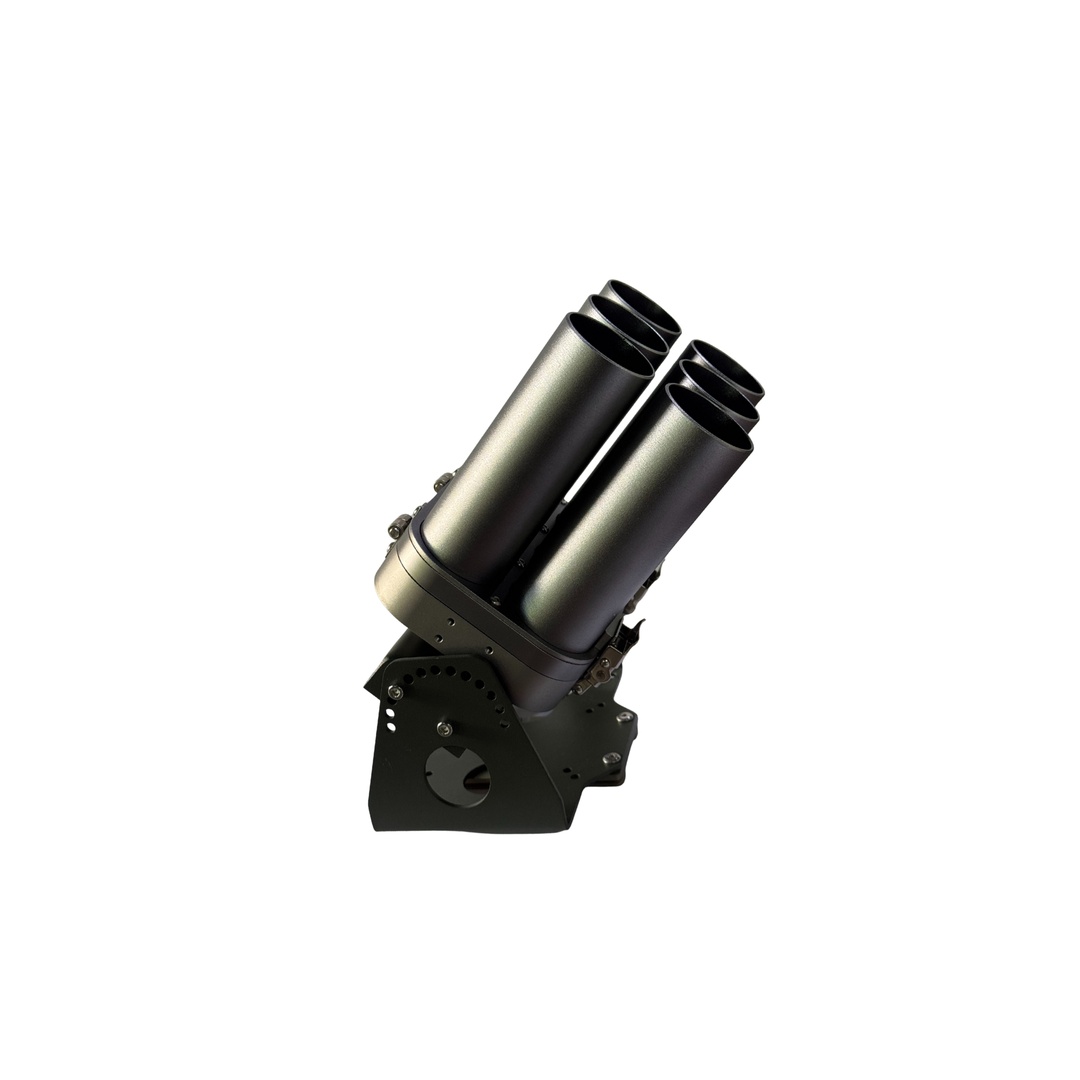

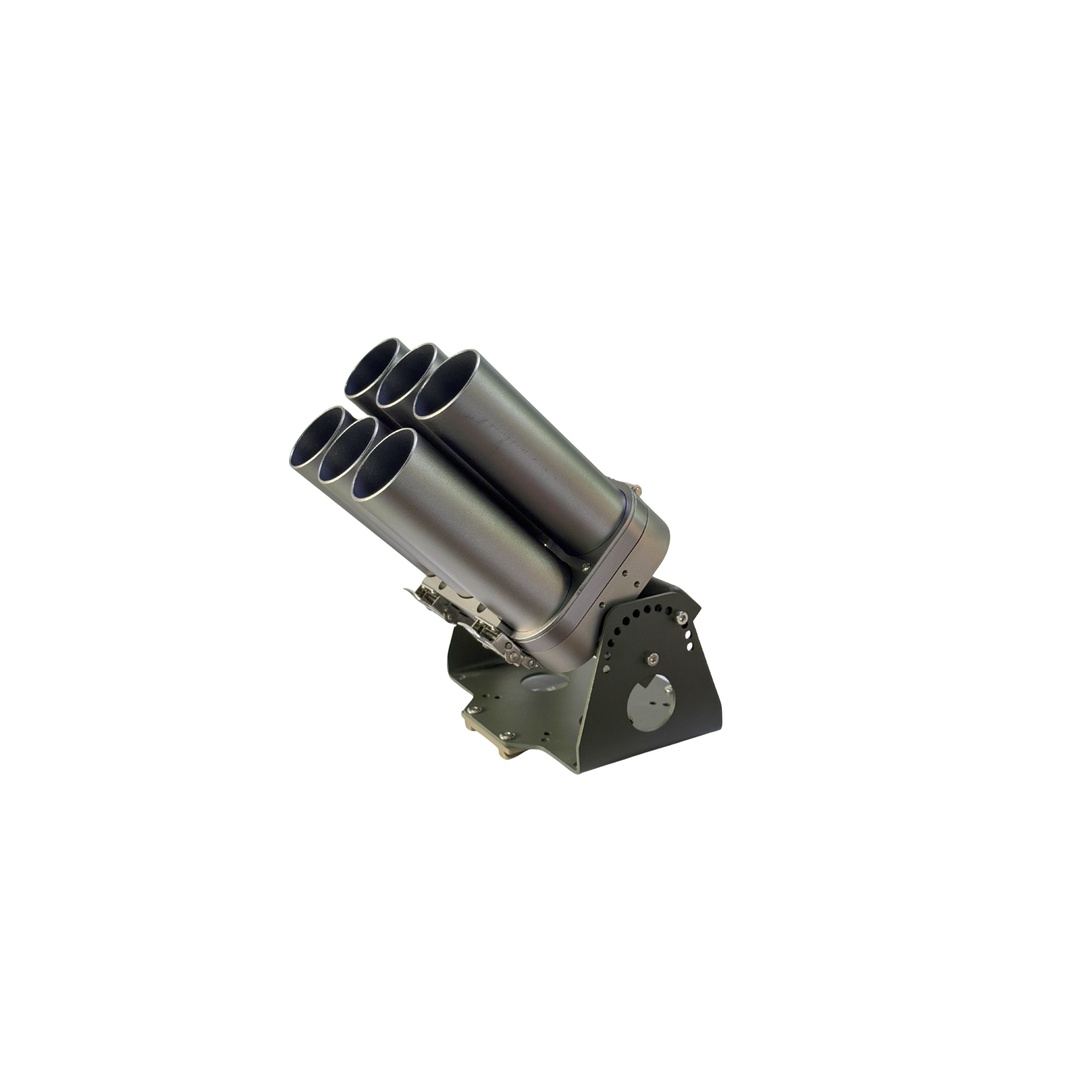

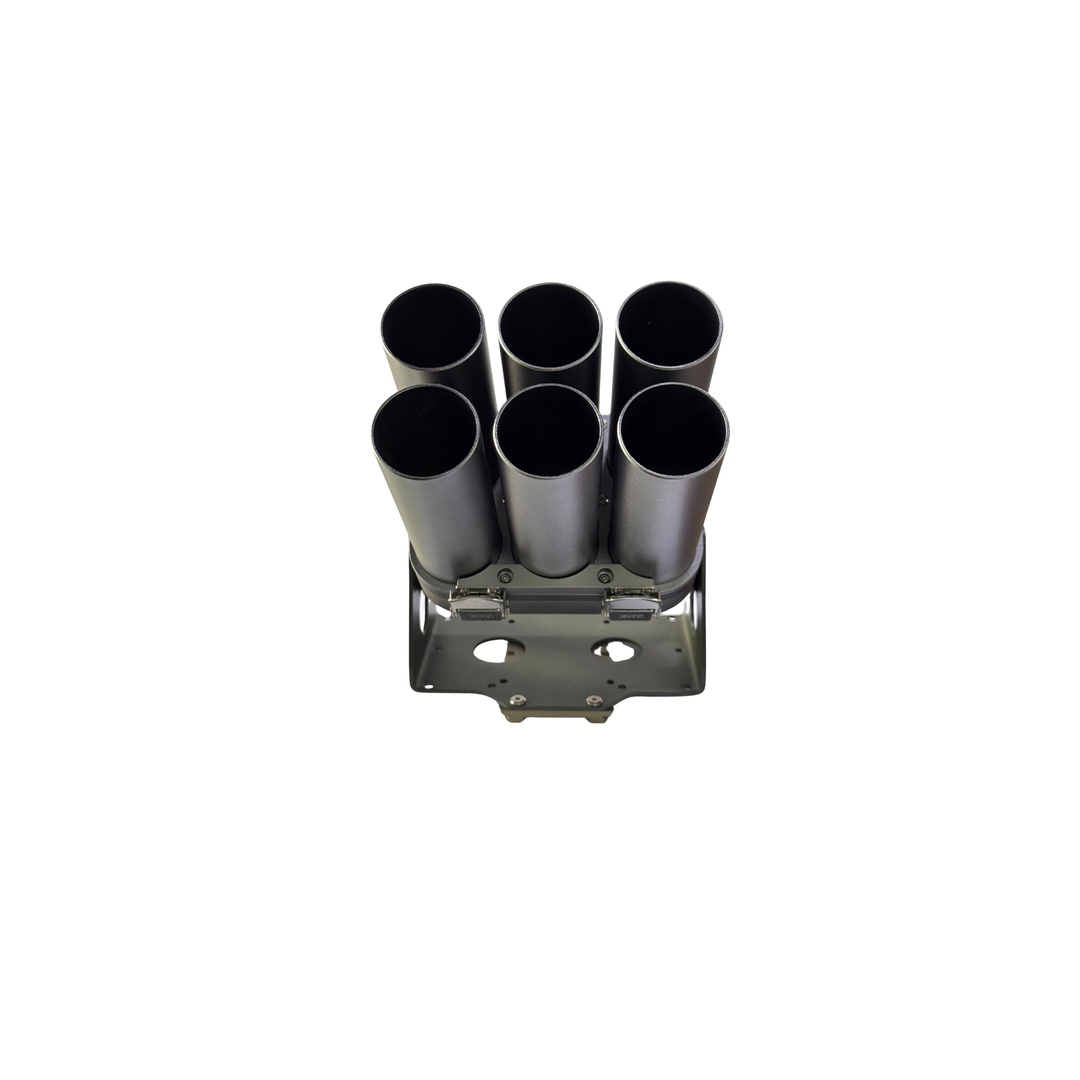

- 38 mm 9-round tear gas/smoke launcher: Launcher net weight 2.5 kg, adopting high-strength 3 x 3 Delrin/aluminum alloy tube sleeves, with a loading capacity of 9 rounds. Solenoid valve quick-open firing, with a maximum range of 80 m.
- Tracking: Adopts a worm gear large reduction ratio pitch box to control the pitch angle (up -35° to down 90°). It can launch 38 mm tear gas or smoke bombs, rapidly establishing a large-area tear gas dispersal screen on the ground.

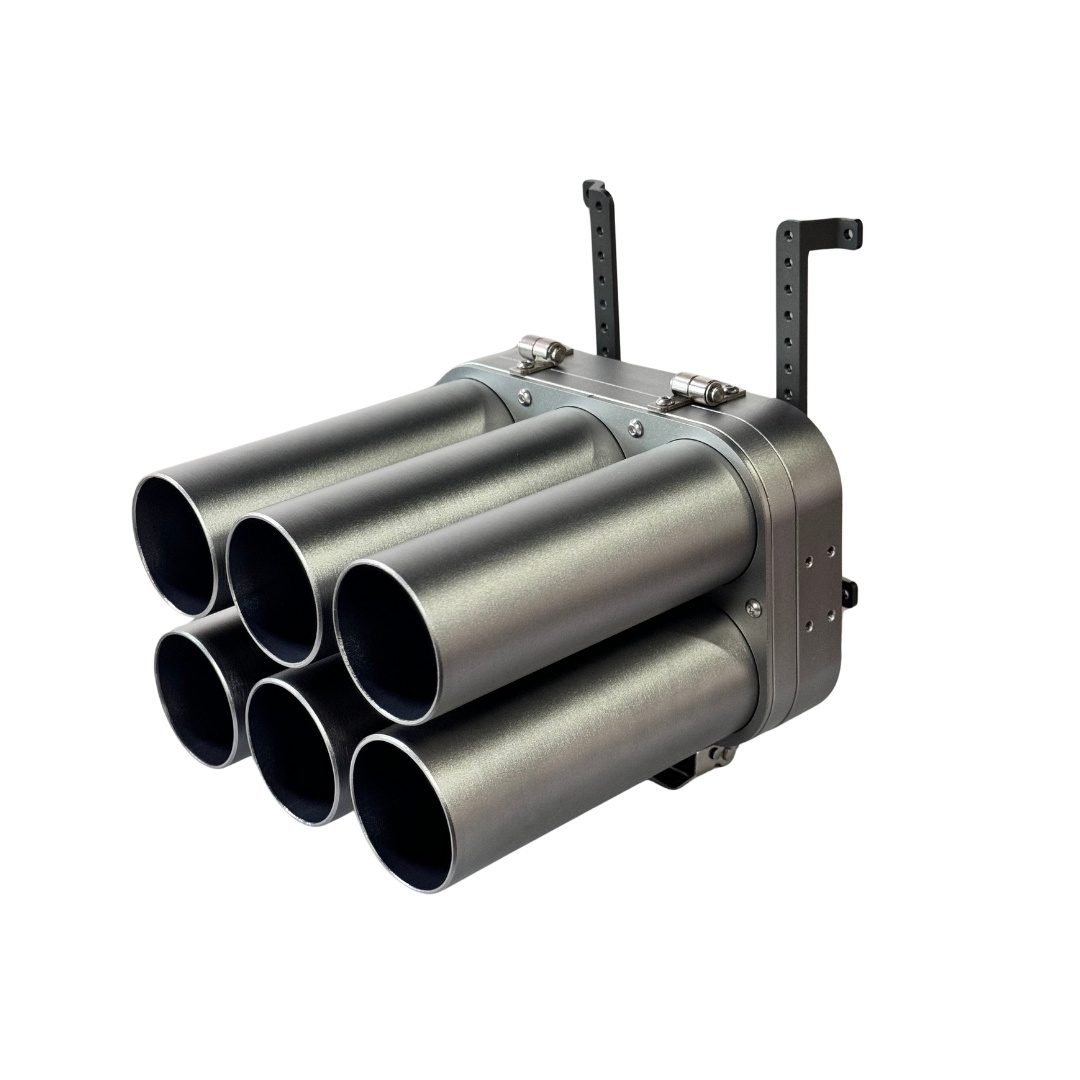

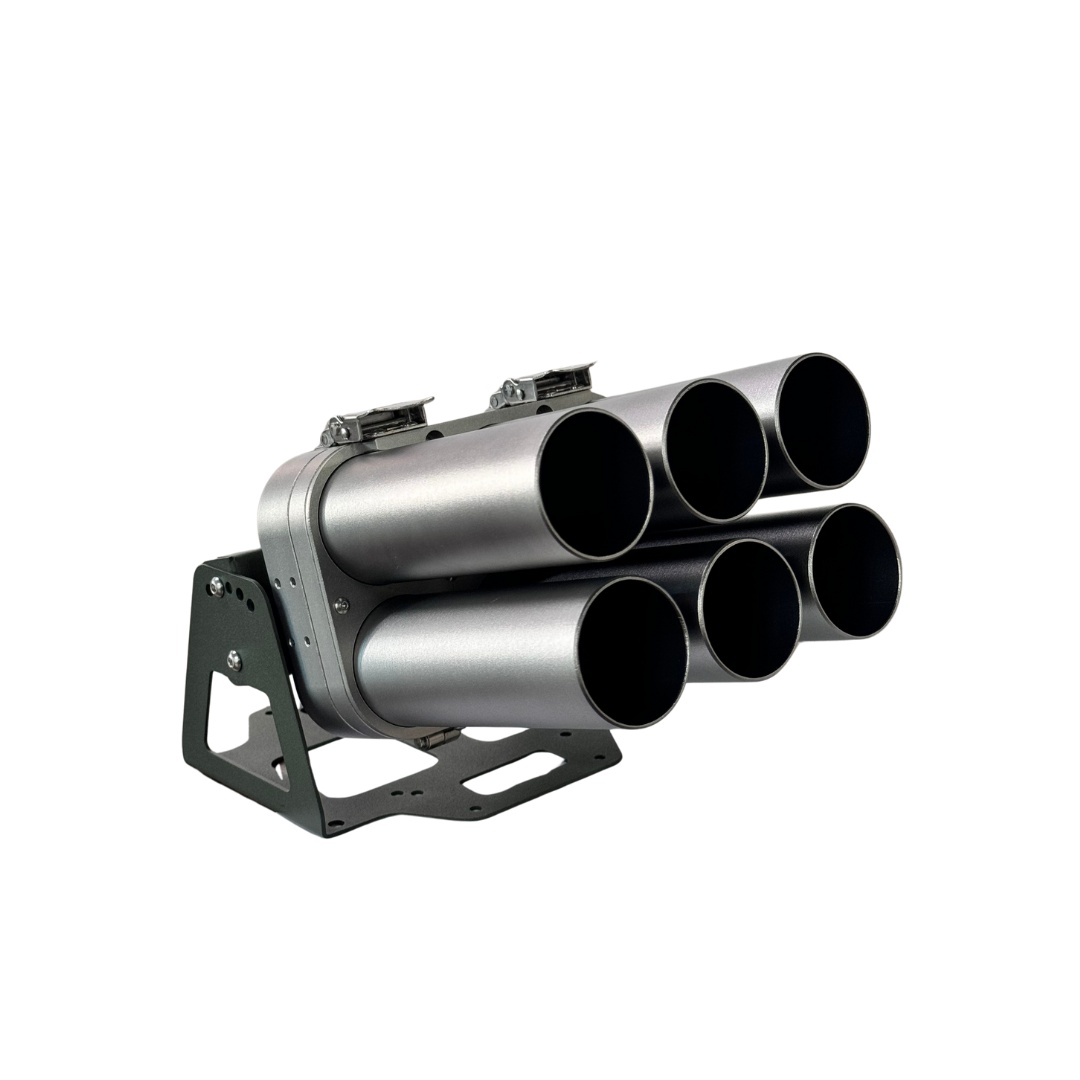

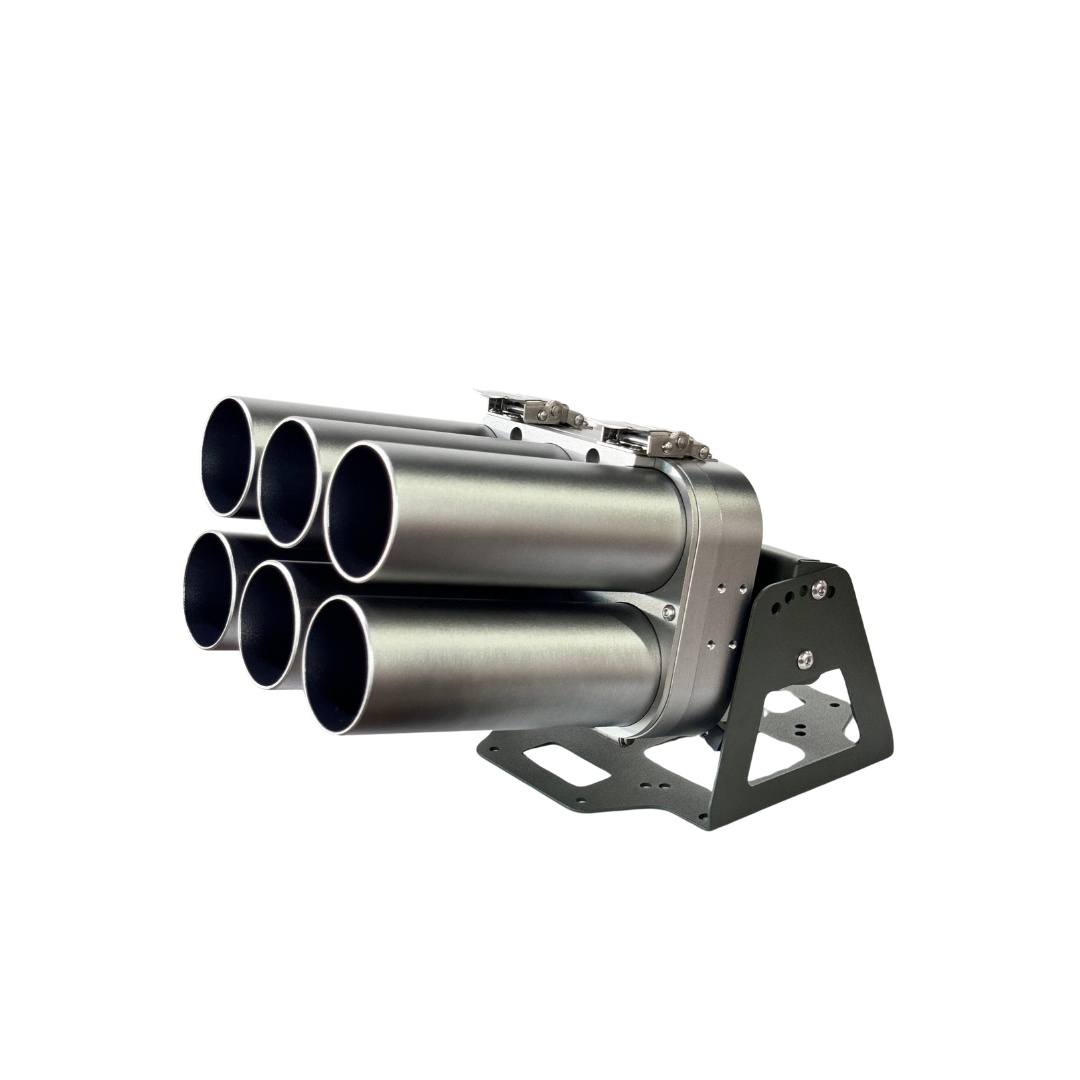

- 4-channel pneumatic cold-launch capture net gun: Mount dry weight 3.5 kg, range 10 m. Uses high-pressure gas to launch a 3,300 x 3,300 mm multi-strand high-strength nylon capture net with a success rate of over 98 %. It can instantly entangle and lock unauthorized multi-rotor drone propellers, providing safe and non-toxic aerial capture.
Field SOP
Quick-Mount Rail & SBUS Signal Locking
The top of the module is equipped with standard MAVLink quick rails and self-rotating aviation plugs, supporting F1200 / F1800 platforms. Connect the main control high-voltage electrodes (DC 24 V - 60 V) and dual-channel SBUS control signals, tighten the anti-loose latch, and a single ground soldier can install it manually in 30 seconds.
Weapon Controller Buffer Self-Test
Before mounting the QBZ launcher, ground crew must manually compress the dual buffer spring to verify the recoil damping of the high-grade steel sleeve, ensuring smooth guidance and no jamming by sand or dust.
Fire Control Safety Mechanical Pin Operation
In the unlaunched ground state, ensure that the fire control safety pin is locked in the power-off state; ground firing tests are strictly prohibited. After taking off and reaching 10 m above the ground, the operator can unlock the safety lock via software through the dual-channel ground control station (GCS).
Circuit Anti-Static Discharge Self-Test
Since air friction easily generates high-voltage static charge accumulation, ground crew must connect the anti-static grounding clamp for residual charge discharge during maintenance, preventing accidental firing of the control board due to static electricity.
